Soraluce FR-8000 Milling Machine

Show in original language

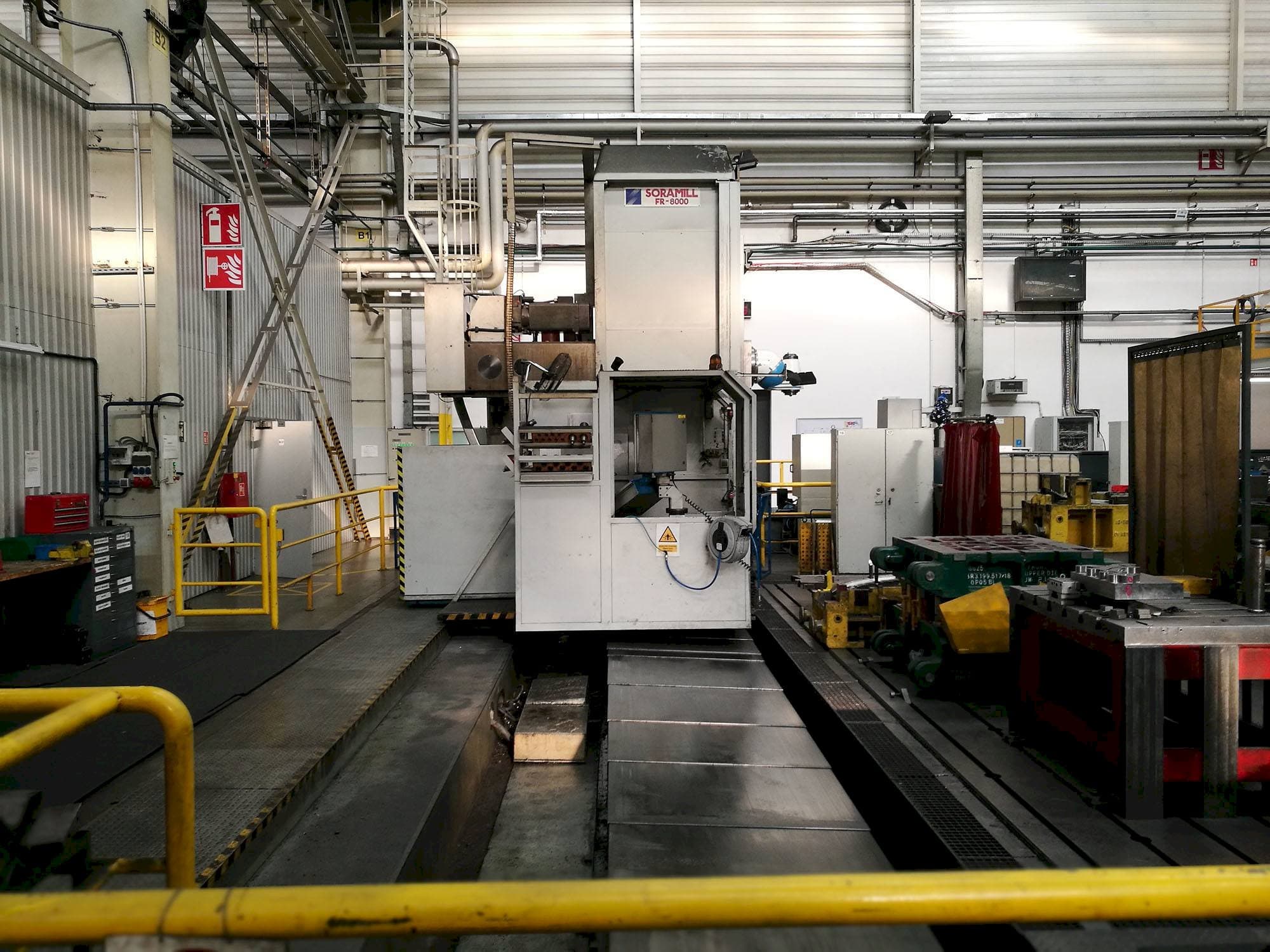

This Soraluce FR-8000 Milling Machine was made in 1995 in Spain. Operated through a HEIDENHAIN Control unit, this machine incorporates a spindle speed range of 15-3000 rpm.

Overview

brand: Soraluce
year: 1995
MODEL: FR-8000
application type: Milling
Location: Poland
machine type: Gantry Milling Machine
availability: Sold
control unit brand: HEIDENHAIN

Technical Information - Soraluce FR-8000

General Data

Measurements width: 4000 mm
Measurements depth: 8000 mm
Measurements height: 4000 mm
Machine weight: 73000 kg

Control Unit

Brand: HEIDENHAIN

Main drive

Spindle speed range: 15-3000 1/MIN
Spindle motor power: 36kW

Movement

X-AXIS Movement: 8000 mm
X-AXIS Working Feed: 12000 mm / min
Y-AXIS Movement: 3200 mm
Y-AXIS Working Feed: 15000 mm / min
Z-AXIS Movement: 1500 mm
Z-AXIS Working Feed: 15000 mm / min

Table

Outer length: 3600 mm

Media

Main electronic connection: 380V / 50Hz
Power consumption: 67.5 kVA
Chip conveyor: Yes
Internal cooling: Yes

Additional Information

Machine Benefits

Technical Machine Benefits:
- - X axis track length: 10500 mm
- - X axis track gauge: 1400 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
