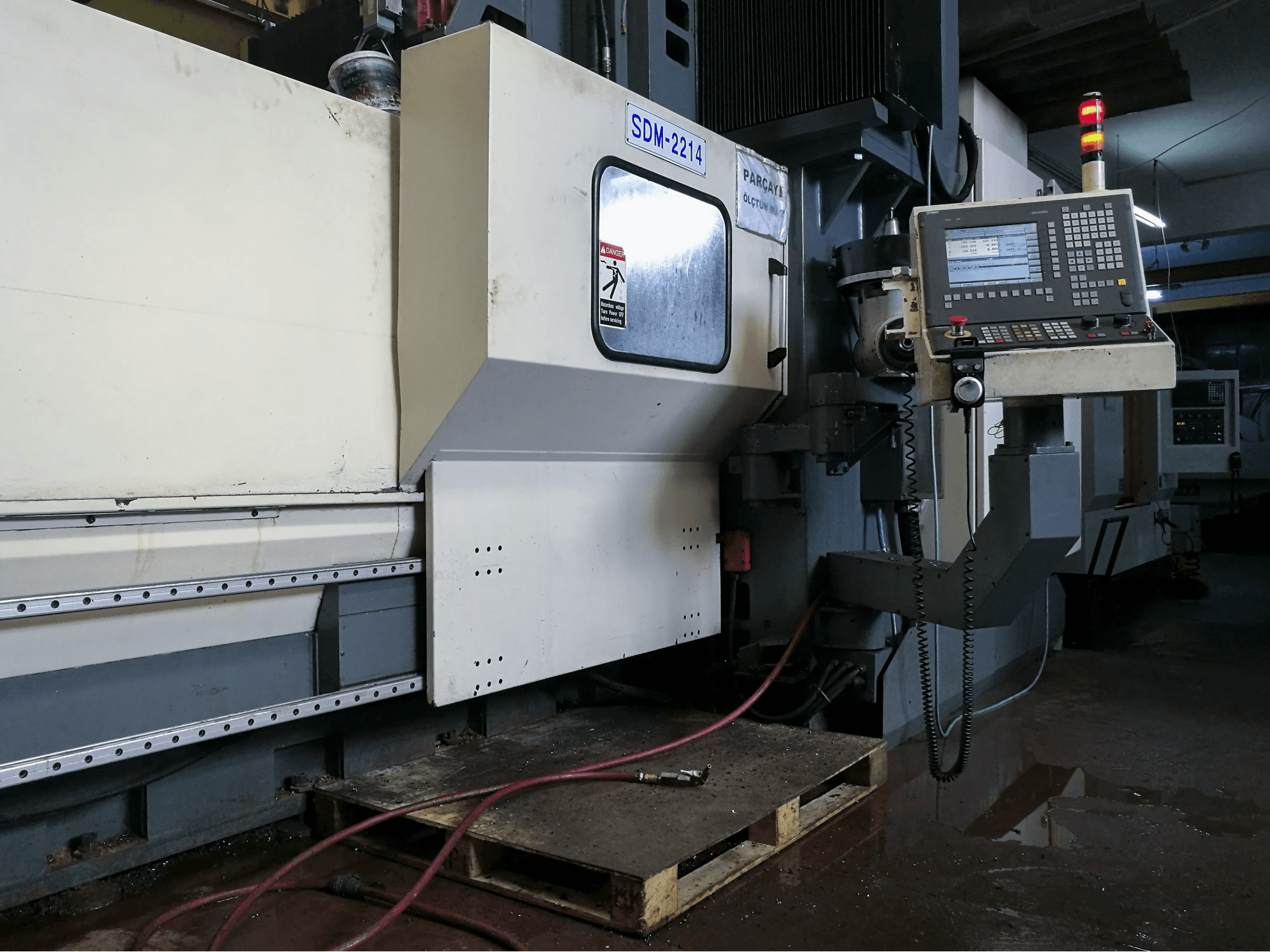

SANCO SDM-2214 Horizontal Milling Machine

Show in original language

This SANCO SDM-2214 Horizontal Milling Machine from 2008 is an especially fit for heavy machining equipment. With a production record of approximately 26280 hours, the model stands out for its 5000-kilogram capacity table load as well as for its spacious working room.

Overview

brand: SANCO
year: 2008
MODEL: SDM-2214
production hours: 26280
application type: Milling
Location: Turkey
machine type: Vertical Machining Centre
availability: Sold

Technical Information - SANCO SDM-2214

General Data

Measurements width: 5500 mm
Measurements depth: 4200 mm
Measurements height: 4050 mm

Main drive

Number of spindles: 1
Spindle speed range: 220-970 1/min
Spindle motor power: 22.5 kW
Tool taper: BT-50

Movement

X-AXIS Movement: 2200 mm
X-AXIS Working Feed: 1-5000 mm/min
X-AXIS Rapid traverse: 12 m/min
X-AXIS Accuracy: 0.003
Y-AXIS Movement: 750 mm
Y-AXIS Working Feed: 1-5000 mm/min
Y-AXIS Rapid traverse: 10 m/min
Y-AXIS Accuracy: 0.003

Workpiece

Workpiece weight: 5000 kg

Table

Outer length: 2100 mm
Outer width: 1000 mm
TSlots size: 22 mm
Number of tslots: 6
Distance between: 125 mm

Tools

Max weight: 20 kg
Max tool diameter: 130/200 mm
Max tool length: 300 mm

Media

Main electronic connection: 200-575 V / 3 P / 50-60 Hz
Power consumption: 50 kVA
Air pressure: 5-7 bar
Lubrication tank: 320 L
Oil tank: 80 L

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
