Reform FGS 50/63 Milling Machine

Show in original language

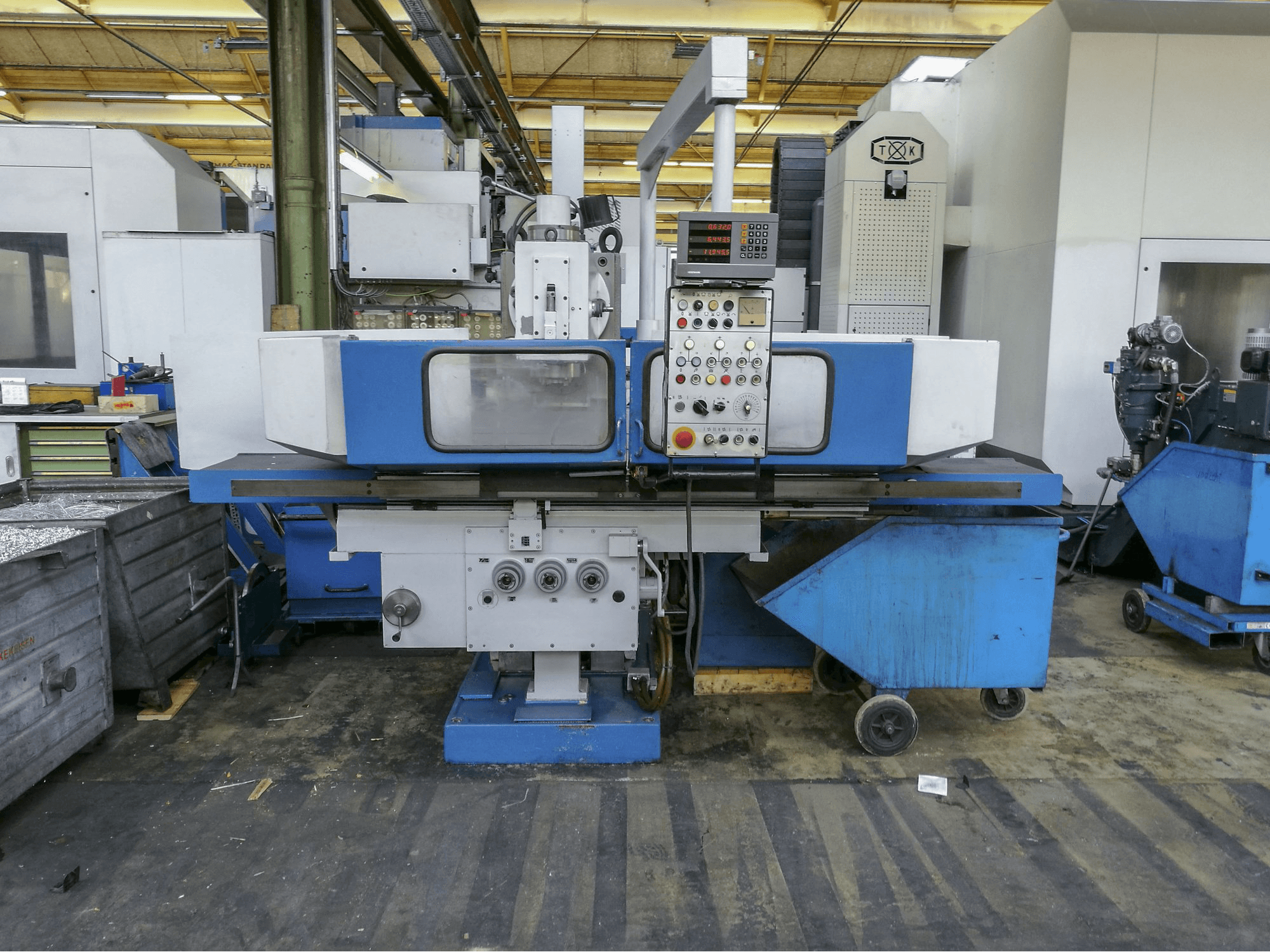

This Reform FGS 50/63 Milling Machine from 1996 was manufactured in Germany and is equipped with a Heidenhain Control unit. This model, which has mainly worked with steel parts during the past, also incorporated a position indicator for all axis and stands out due to HEIDENHAIN sealed linear encoders and automatic tool clamping.

Overview

brand: Reform
year: 1996
MODEL: FGS 50/63
application type: Milling
Location: Germany
machine type: Universal Machining Centre
availability: Sold
control unit brand: HEIDENHAIN

Technical Information - Reform FGS 50/63

General Data

Measurements width: 3350 mm
Measurements depth: 3060 mm
Measurements height: 2500 mm
Machine weight: 6500 kg

Control Unit

Brand: HEIDENHAIN

Main drive

Number of spindles: 1
Spindle speed range: 35-1800 1/min

Movement

X-AXIS Rapid traverse: 4 m/min
Z-AXIS Rapid traverse: 1 m/min

Workpiece

Workpiece weight: 1500 kg

Table

Outer length: 1800 mm
Outer width: 630 mm
Height adjustment: 500 mm
Magnetic table: Yes

Media

Main electronic connection: 380 V
Power consumption: 23 kVA
Chip conveyor: Yes
Internal cooling: Yes

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
