QUICK-TECH Q5 Milling center

Show in original language

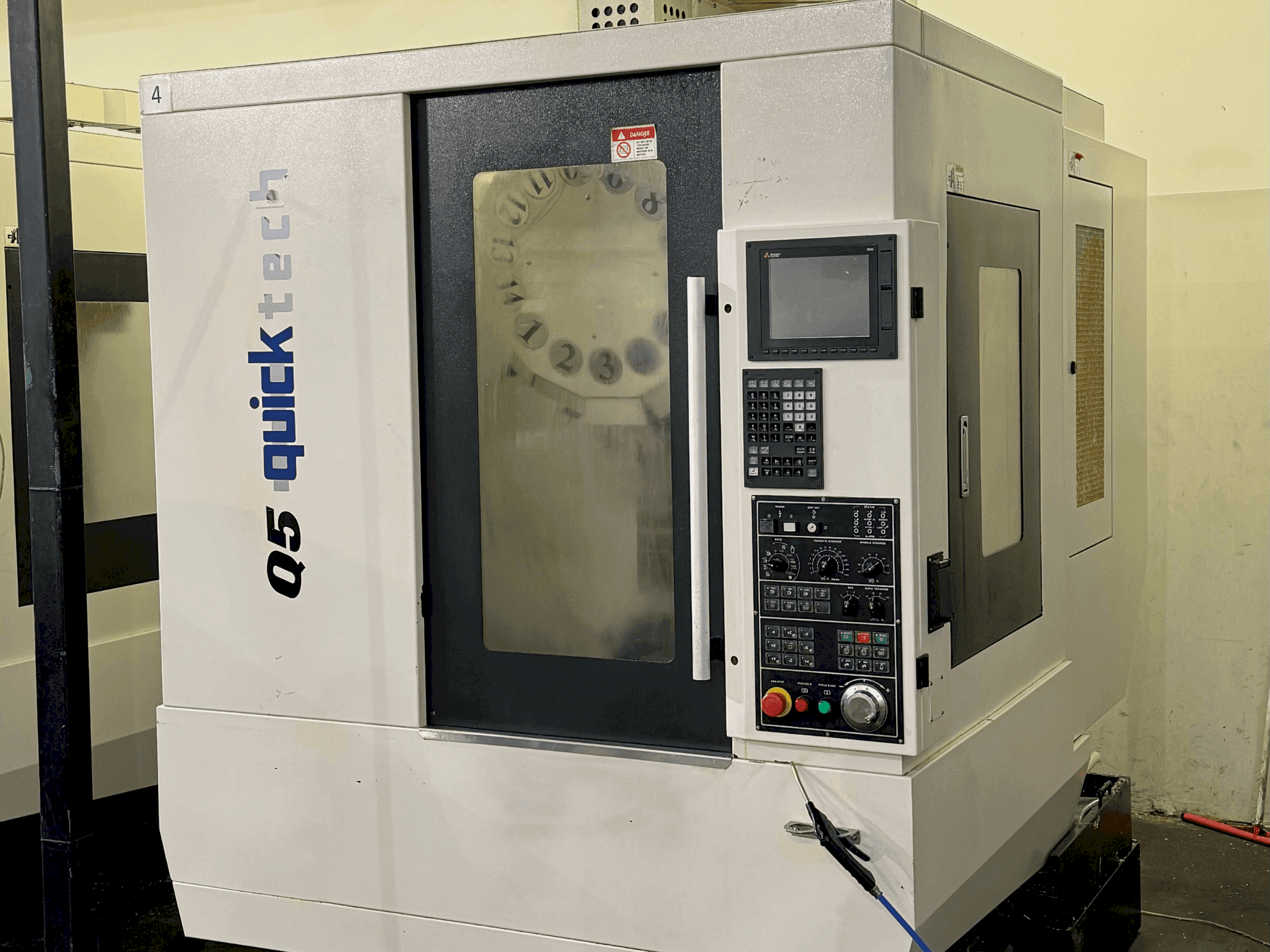

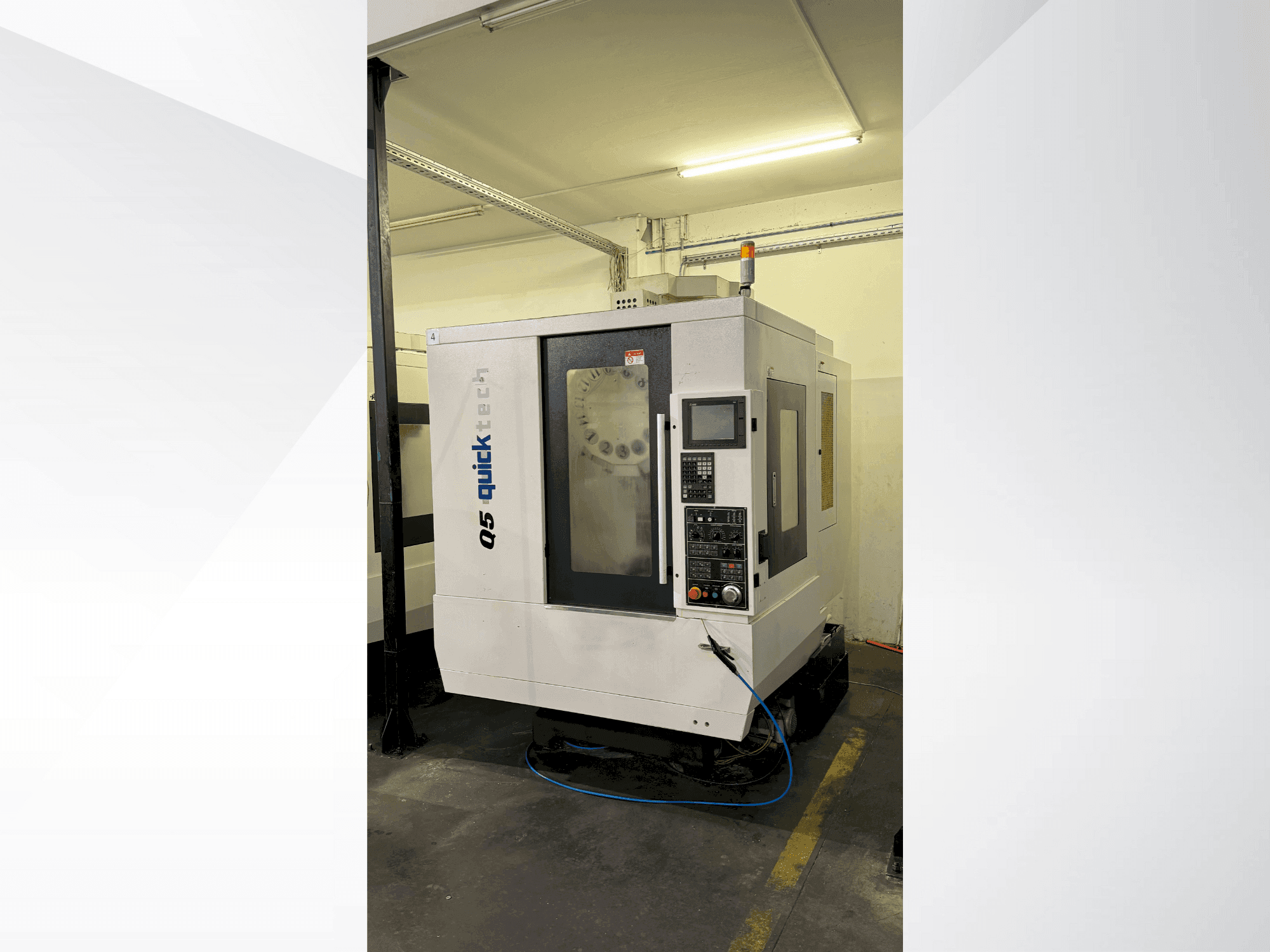

This QUICK-TECH Q5 Milling center was manufactured in 2018 in Taiwan. It is equipped with a Mitsubishi M80 control. This milling machine has a table size of 620 x 420 mm with a max. table load of 250 kg. The clamp type is BT30. The machine is still under power and can be inspected at any time. There are 4 units available of the same model and YOM at the same location.

Overview

brand: Quick-Tech
year: 2018
MODEL: Q5
production hours: 6500
application type: Turning
Location: Slovenia
machine type: Swiss Type Turning Machine
availability: Immediately
control unit brand: MITSUBISHI

Technical Information - Quick-Tech Q5

General Data

Measurements width: 1600 MM
Measurements depth: 2100 MM
Measurements height: 2900 MM
Machine weight: 2800 kg

Control Unit

Brand: MITSUBISHI
Model: M80

Main drive

Spindle speed range: 10000 1/MIN
Spindle motor power: 5.5 kW
Number of axis: 3

Movement

X-AXIS Movement: 500 MM
Y-AXIS Movement: 400 MM
Z-AXIS Movement: 300 MM

Table

Outer length: 620 mm
Outer width: 420 mm

Tools

Slots in storage: 14
Max weight: 3 kg
Type of tool holder: BT30

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Size of t nuts: 18x3x125 mm
- - Distance from the table to the clamp: 200-500mm
- - Clamp type: bt30
- - Transmission: belt
- - High speed x/y/z axes: 48m/min
- - Ball spindles: fi32/p16/c3
- - Linear carriages: x and y axis width: 30mm, z axis width: 35mm
- - Direct axle transmission (motor/ball spindle)

Extra information

- Machine is still under power and can be inspected at any time. There are 4 units of this model and YOM available. The only difference is that they have different working hours. Number of working hours: CENTER 1: 6500h, CENTER 2: 6800h, CENTRE 3: 6400h and CENTRE 4: 8400h. In the photo gallery you see only one machine.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
