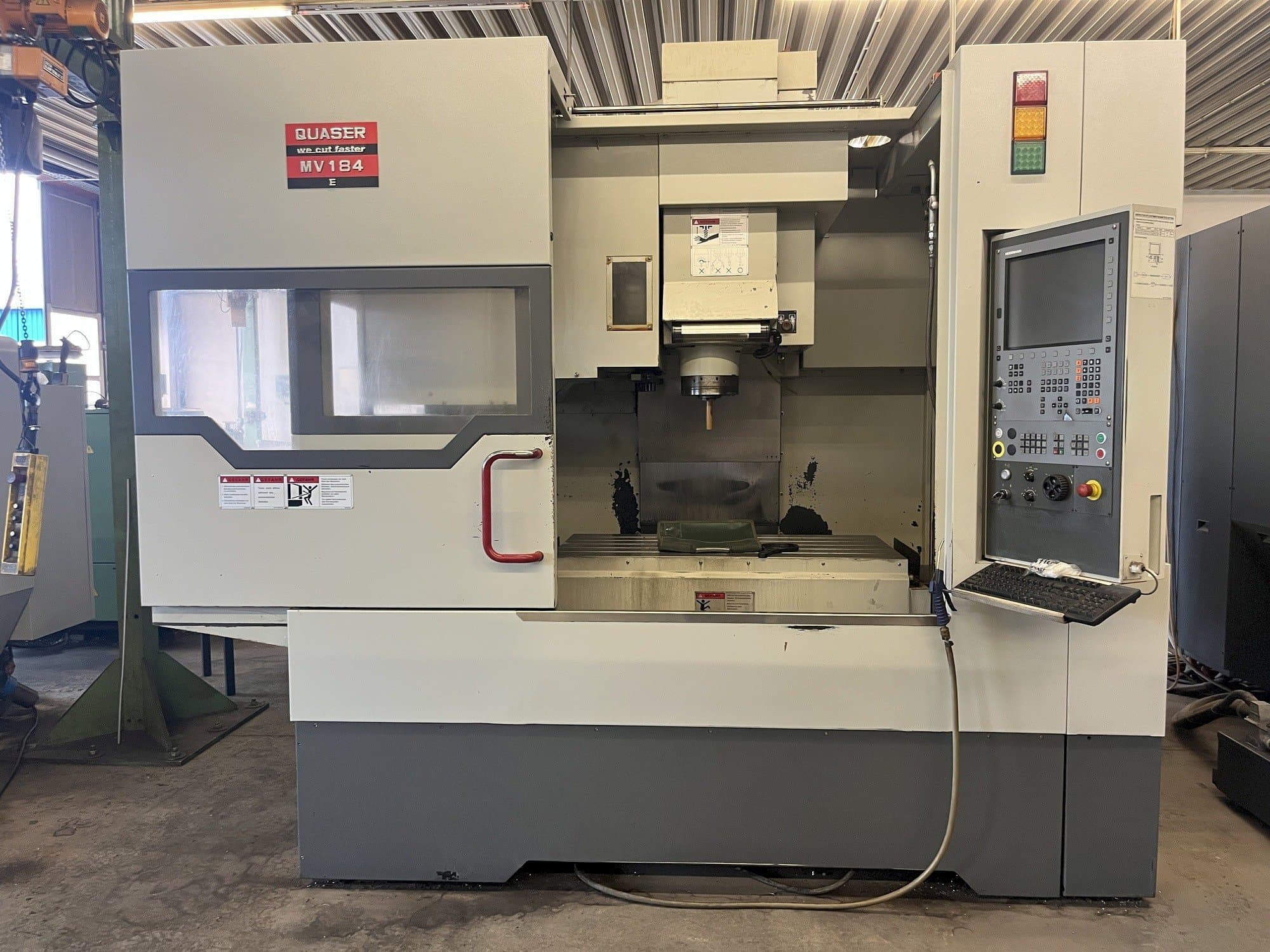

Quaser - MV 184EDE-MIL-QUA-2009-00001

Additional Equipment

• - Chip Conveyor

Additional Information

Machine Benefits

• Technical Machine Benefits:
  • - Internal coolant supply 20 bar
  • - Number of tools in the magazine 30 pieces
  • - Tool holder sk 40
  • - Double-arm tool changer with 30 storage locations
  • - Large dimensioned linear guides in all axes
  • - Highly dynamic digital feed drives with 6800 n (z 13900 n) axis power
  • - Computer-optimized, heavy machine body made of heavily ribbed cast iron
  • - Rapid traverse 32 rnlmin (z ;24 mlmin), acceleration {x/y/z) 3/3 /3 m/sec'
  • - Torque 108 nm
  • - Siemens-weiss main spindle sk 40, suitable for standard fixtures and tooling with facing system
• Qualitative Machine Benefits:
  • - Cooling system for main spindle with separate 100 1 oil cooling circuit and air supply for main motor
  • - Preloaded ball screws diam. 45 mm
  • - Tool holders according to din 69871 (bt 40 oplion), tool tightening bolts according to din 69872 (iso) 7388 option)
  • - Chip disposal, consisting of 2 screw conveyors and sptllsyslem in the working area, as well as scraper belt conveyor
  • - Coolant tank with 300 l capacity
  • - Flood cooling, with 12 adjustable outlet nozzles located in a ring on the spindle nose, conveying capacity 60 1/min at 2 bar palron filter 80 µ for chip flushing and flood cooling
  • - Internal coolant supply with grundfoss pump 20 bar. 251/min, incl. Cartridge filter 25 µ
  • - Chip flushing with grundtoss pump 60 1/min at 2 bar, stainless steel chip trays in the working chamber
  • - Working chamber full protection with large viewing doors (door opening 900 mm) and 2 working area lights, as well as machine status light
  • - Blow air, external. For dry processing

Extra information

• - Coolant spray gun. - two-color painting in light gray/grey. - Glass scales for X-. Y- and Z-axis (HDH) including overpressurization to prevent contamination of the direct measuring system. - Automatic central lubrication for the ball screws. - Quaser machining centers comply with CE standards.

Payment Terms

• Payment in advance

• Asset Financing
