- Quaser HX505 AP Horizontal Machining Center

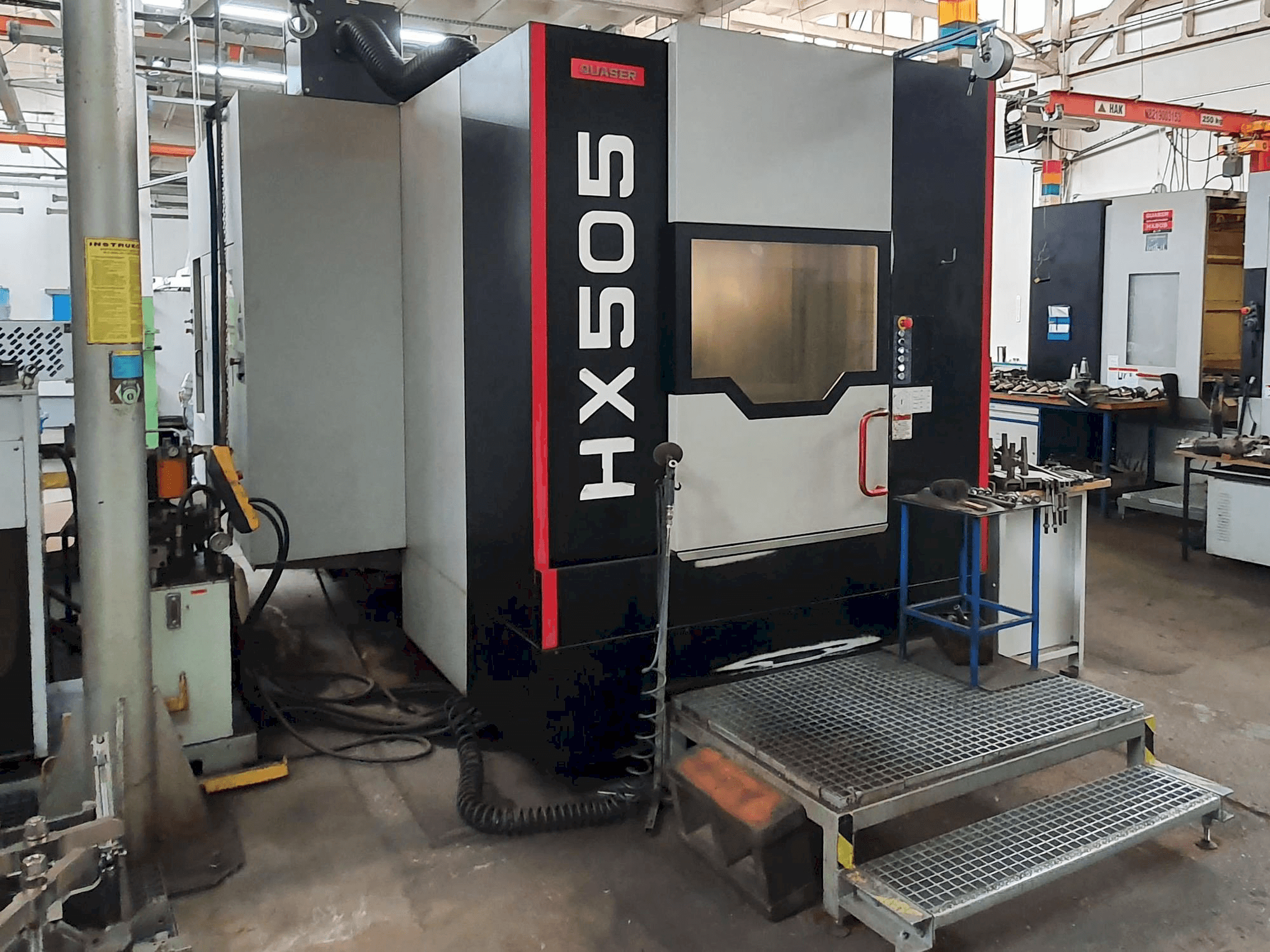

This Quaser HX505 AP Horizontal Machining Center was manufactured in 2010 in Taiwan. It has a working record of 6693 production hours. It is equipped with a FANUC Series 18i-MB control unit. This machine can work with a spindle speed up to 6000 rpm.
Overview
- brand: Quaser
- year: 2010
- MODEL: HX505 AP
- production hours: 6693
- application type: Milling
- Location: Poland
- machine type: Horizontal Machining Centre
- availability: Sold
- control unit brand: Fanuc
Technical Information - Quaser HX505 AP
General Data
- Measurements width: 3040 mm
- Measurements depth: 4835 mm
- Measurements height: 3030 mm
- Machine weight: 13000 kg
Control Unit
- Brand: Fanuc
- Model: 18i-MB
Main drive
- Spindle speed range: 6000 1/MIN
- Spindle motor power: 27 kW
- Tool taper: Taper BBT50
Movement
- X-AXIS Movement: 762 mm
- Y-AXIS Movement: 640 mm
- Z-AXIS Movement: 840 mm
Table
- Outer length: 500 mm
- Outer width: 500 mm
- Table load: 500 kg
Additional Information
- Technical Machine Benefits:
- - Table index (º)1 (ops. 0,001)
- - Max. Workpiece (mm)Ø800xh900
- - Team magazine capacity (pieces)30 (opt. 40)
- - Oil mist separator
- - Coolant filtration system
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
