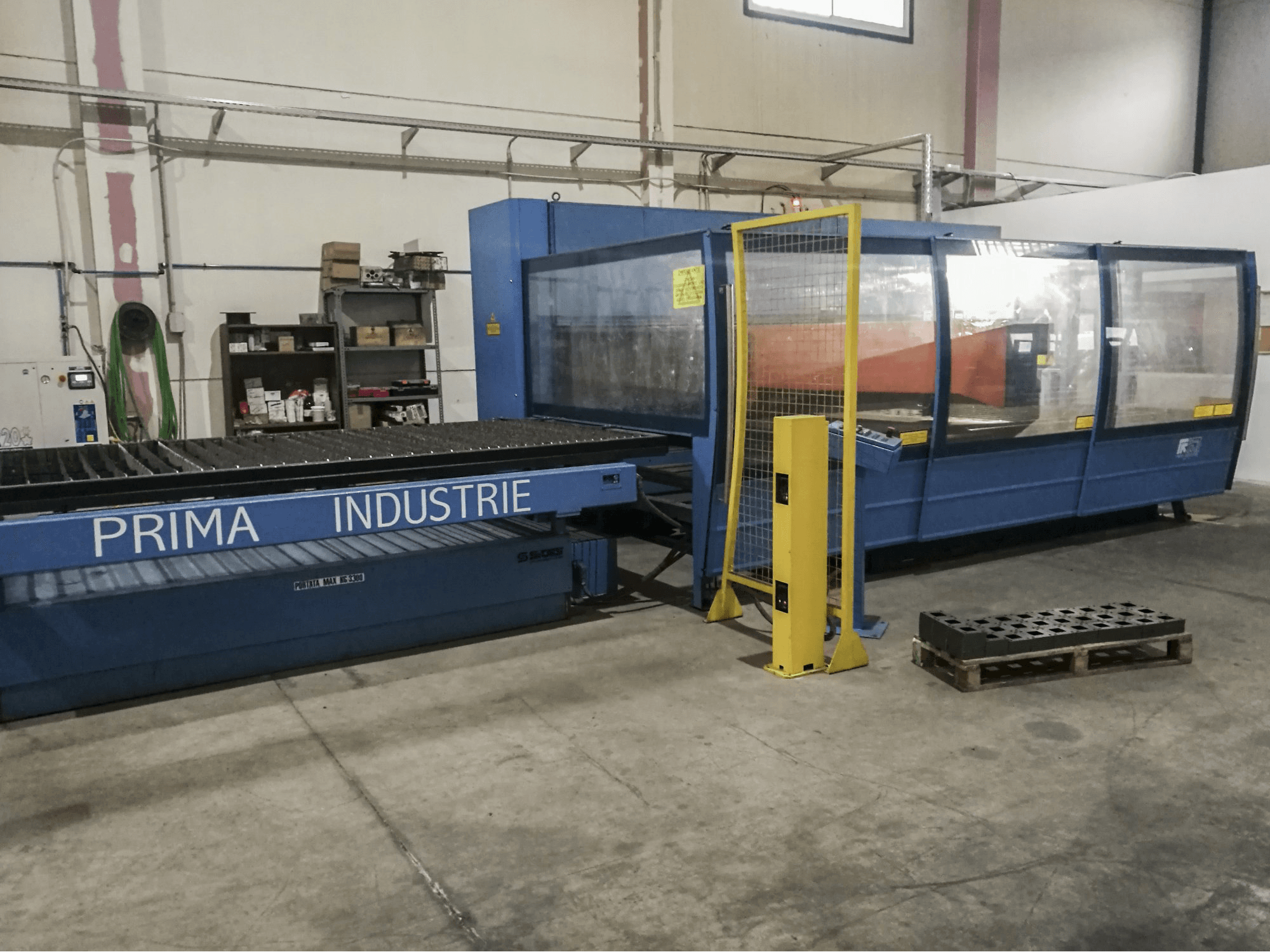

This Prima Power Platino 1530 Laser Cutting Machine was manufactured in 2000 in Italy and has a working record of 60974 production hours. Operated through a Primach 9000-L Control unit, this 3 kW machine stands in really good conditions as it received regular maintenance.
Overview
- brand: Prima Power
- year: 2000
- MODEL: Platino 1530
- production hours: 60974
- application type: Cutting
- Location: Spain
- machine type: CO2 Laser Cutting Machine
- availability: Sold
- control unit brand: PRIMACH
Technical Information - Prima Power Platino 1530
General Data
- Measurements width: 6200 mm
- Measurements depth: 3800 mm
- Measurements height: 2500 mm
- Machine weight: 13000 kg
Control Unit
- Brand: Primach
- Model: 9000-L
Main drive
- Laserpower: 3 kW
- Laser type: CO2
- Laser brand: PLS 3000
Movement
- X-AXIS Movement: 3000 mm
- X-AXIS Rapid traverse: 50 m/min
- Y-AXIS Movement: 1500 mm
- Y-AXIS Rapid traverse: 50 m/min
- Z-AXIS Movement: 150 mm
- Z-AXIS Rapid traverse: 40 m/min
Workpiece
- Workpiece x: 3000 mm
- Workpiece y: 1500 mm
- Workpiece z: 15 mm
Max Material thickness
- Steel: 15 mm
- Stainless steel: 8 mm
Machine specific data
- Size of cutting head 1: 5"
- Size of cutting head 2: 7.5"
Media
- Main electronic connection: 400 V
- Power consumption: 63.3 kVA
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
