POSmill - H800UDE-MIL-POS-2018-00001

Name: POSmill H800U
Brand: POSmill
SKU: DE-MIL-POS-2018-00001
Price: 165950 GBP
Availability: InStock

£ 165,950

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

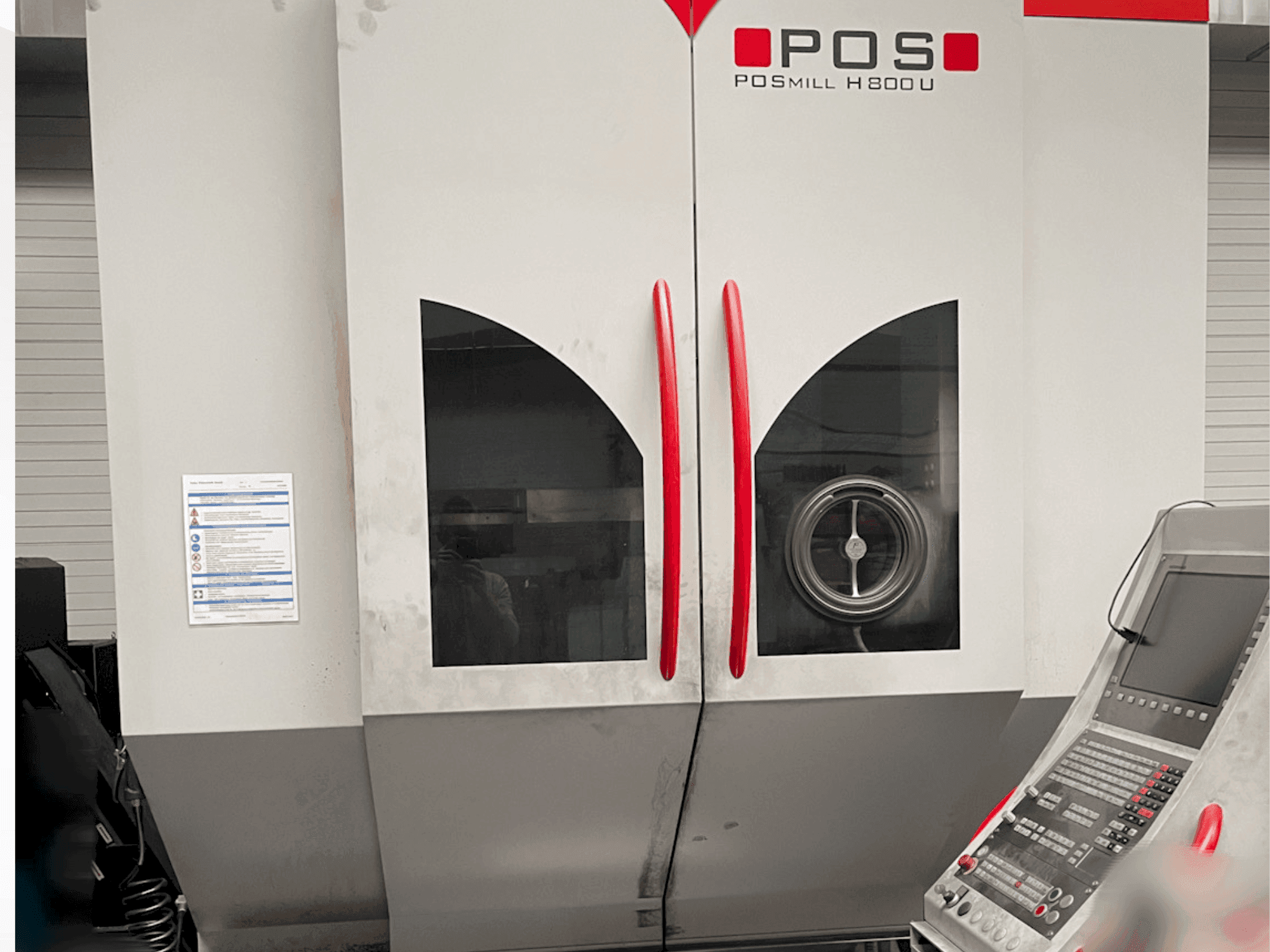

POS H800U Universal Machining Centre

Show in original language

This POS H800U Universal Machining Centre was manufactured in 2018 in Germany. It has 5 axis (X = 670, Y = 600 mm, Z = 820 mm / Swivel range -100 to +120 degrees, Rotary table 360 degrees endless) and comes with a HSK-A63 spindle with 18,000 rpm. The machine is operated by a iTNC530 HEIDENHAIN control and is equipped with a Heidenhain rotary and linear measuring system X,Y,Z. As extras it features air through spindle, internal coolant supply 20 bar with belt filter unit, a KESSLER table with diameter 800 mm, tool measurement with BLUM laser and operation mode 4. See tech specs overview as PDF (DE) attached.

Overview

brand: POSmill
year: 2018
MODEL: H800U
application type: Milling
Location: Germany
machine type: Universal Machining Centre
availability: Immediately
control unit brand: HEIDENHAIN

Technical Information - POSmill H800U

Control Unit

Model: iTNC530
Brand: HEIDENHAIN

Main drive

Spindle speed range: 18000 1/MIN
Tool taper: HSK-A63
Number of axis: 5

Movement

X-AXIS Movement: 670 MM
Y-AXIS Movement: 600 MM
Z-AXIS Movement: 820 MM

Media

Internal cooling: Yes

Additional Equipment

- Heidenhain rotary measuring system
- Heidenhain linear measuring system X,Y,Z

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Table clamping surface: diameter 800 mm
- - Swivel range -100 to +120 degrees
- - Rotary table: 360 degrees endless
- - 96-position tool changer
- - Air through the spindle
- - Internal coolant supply 20 bar with belt filter unit
- - Kessler table diameter 800 mm
- - Preparation for workpiece measurement
- - Infrared workpiece measurement - 3d - probe
- - Tool measurement with blum laser
Qualitative Machine Benefits:
- - Operating mode 4

Extra information

- Rotation viewing window // POS DCM collision module

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

Documents

POSmill H800U (2018) - Tech Specs (DE).pdf
