➤ Used POSmill H2200U For Sale | gindumac.com

Show in original language

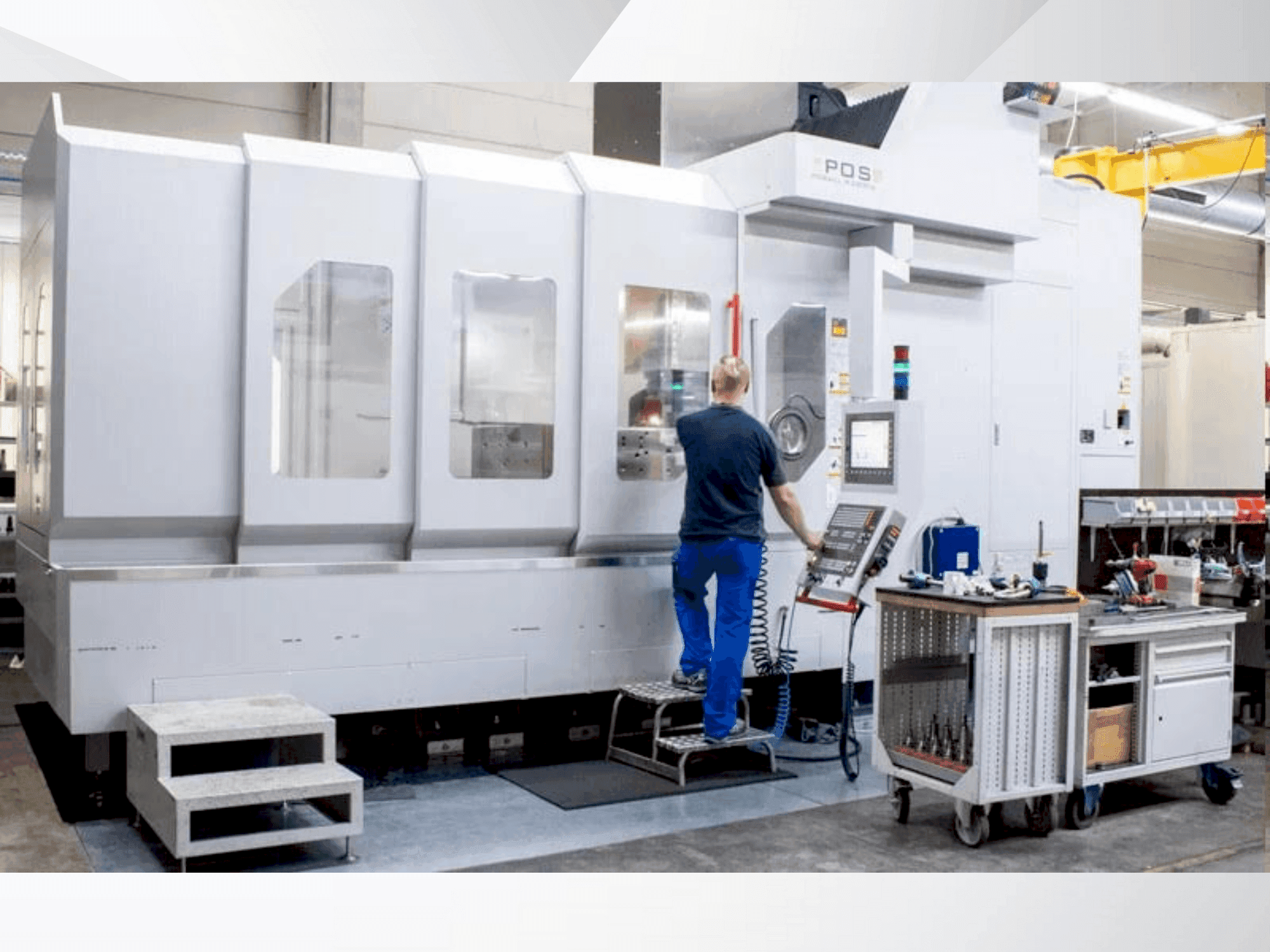

This 5-axis POSmill H2200U universal machining center was manufactured in 2022. It features a Kessler swivelling head, integrated rotary table, and a high-power milling spindle reaching 20,000 rpm. Equipped with a Heidenhain TNG 640 control system, 90-fold HSK 63 tool changer, and internal coolant supply at 50 bar. Ideal for complex machining tasks. Contact us for further details regarding this universal machining center.

Overview

brand: POSmill
year: 2022
MODEL: H2200U
application type: Milling
Location: Germany
machine type: Vertical Machining Centre
availability: Immediately
control unit brand: HEIDENHAIN

Technical Information - POSmill H2200U

Control Unit

Model: TNG 640
Brand: HEIDENHAIN

Main drive

Spindle speed range: 20000 1/MIN
Tool taper: HSK 63
Number of axis: 5

Movement

X-AXIS Movement: 2200 MM
Y-AXIS Movement: 1400 MM
Z-AXIS Movement: 1000 MM

Media

Internal cooling: Yes
Cooling pressure: 50 bar

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Spindle cooler
- - Spray ring on the spindle
- - Oil/coolant separator
- - Mobile electronic handwheel
- - Kessler swivelling head simultaneous
- - Kessler-integrated rotary table 1200 mm
- - External hinged belt chip conveyor
- - Preparation for measuring system
- - Renishaw rmp600 workpiece measuring system
- - Pos dom collision module
Qualitative Machine Benefits:
- - Pos kinematic module incl. Reference ball
- - Tool measurement via blum-lase

Extra information

- Internal coolant supply 50 bar with belt filter unit Air through the spindle

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
