Optimum F105 Milling machine

Show in original language

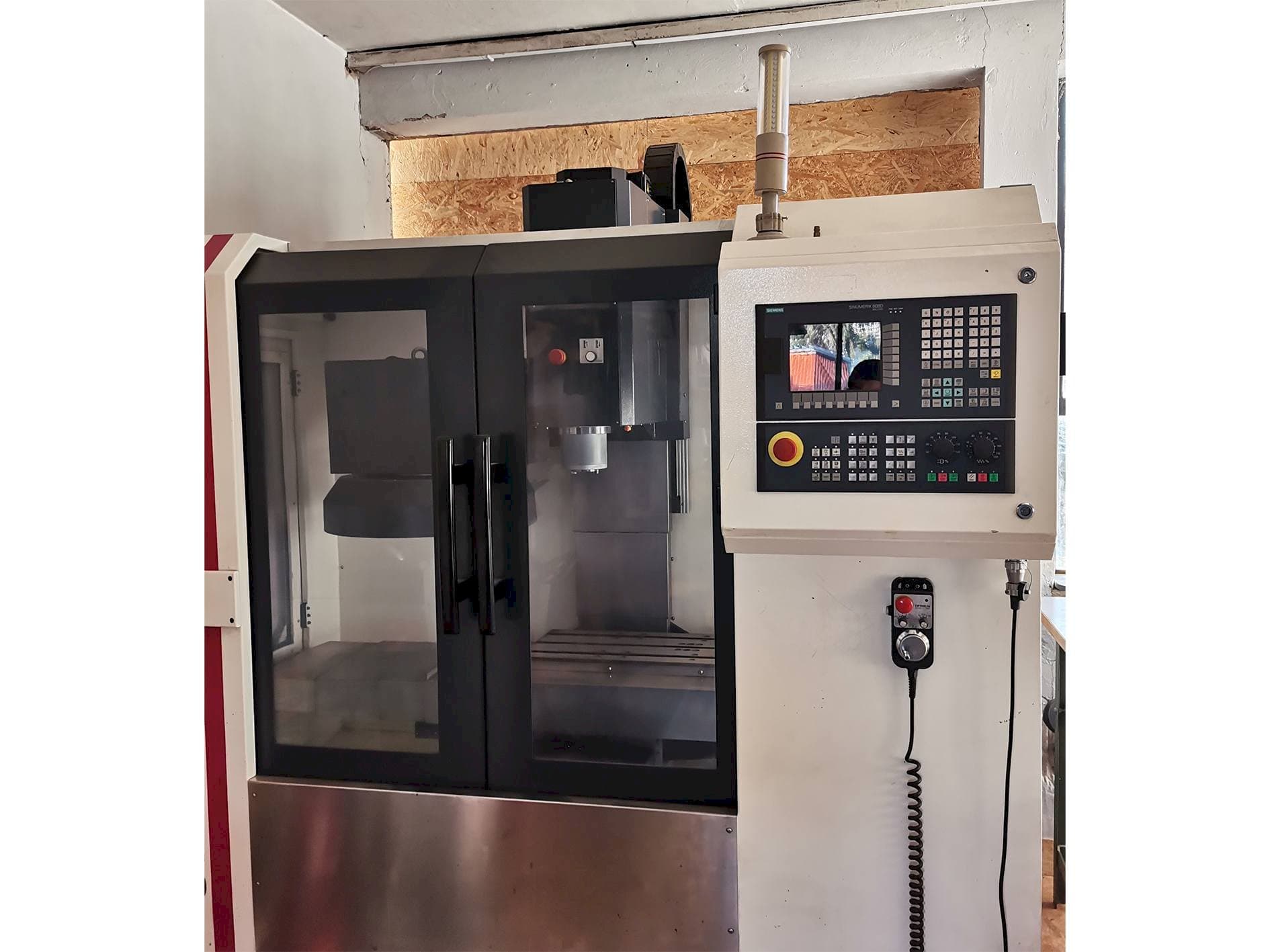

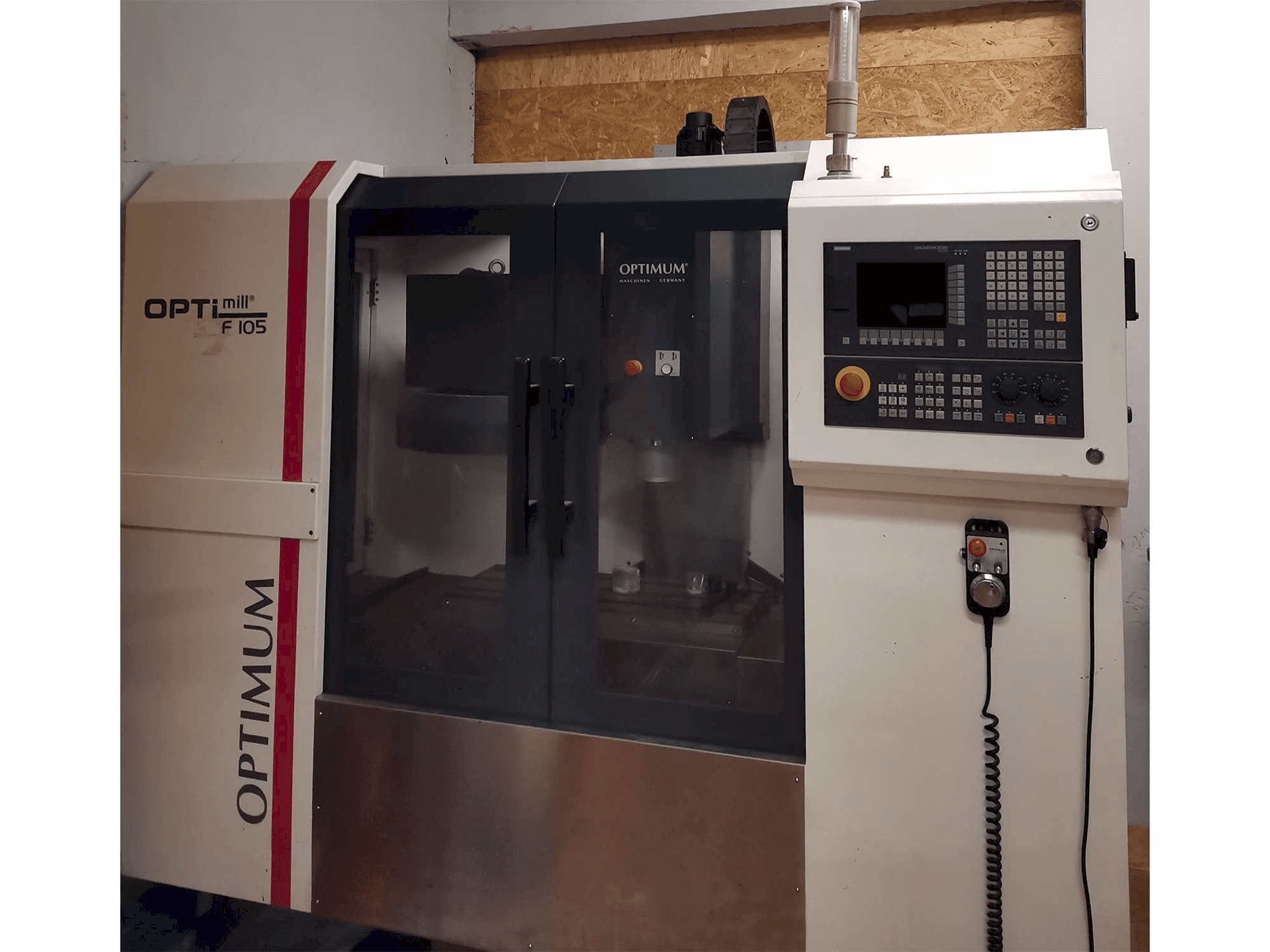

This Optimum F105 Milling machine was manufactured in 2014 in Germany. This 3 axis machine works with a spindle speed between 10 - 8000 rpm. It is in very good condition.

Overview

brand: Optimum
year: 2014
MODEL: F105
application type: Milling
Location: Germany
machine type: CNC Milling Machine
availability: Sold

Technical Information - Optimum F105

Main drive

Number of spindles: 1
Spindle speed range: 10 - 8000 1/MIN
Tool taper: ISO 40
Number of axis: 3

Movement

X-AXIS Movement: 400 mm
Y-AXIS Movement: 225 mm
Z-AXIS Movement: 375 mm

Table

Outer length: 800 mm
Outer width: 320 mm
Table load: 300 kg

Tools

Number of index: 12
Max weight: 6 kg
Max tool diameter: 70 mm
Max tool length: 300 mm

Media

Main electronic connection: 3 x 400V ~ 50Hz 12,5 KVA

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Power spindle drive s1 operation 5,5 kw
- - Power spindle drive s6-30 % operation 7,8 kw
- - Torque s1 operation 35 nm
- - Torque s6-30 % operation 50 nm
- - Cooling lubricant pump power 650 w
- - Tank capacity 120 liters
- - Connection min. 0,6 (6 bar)

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
