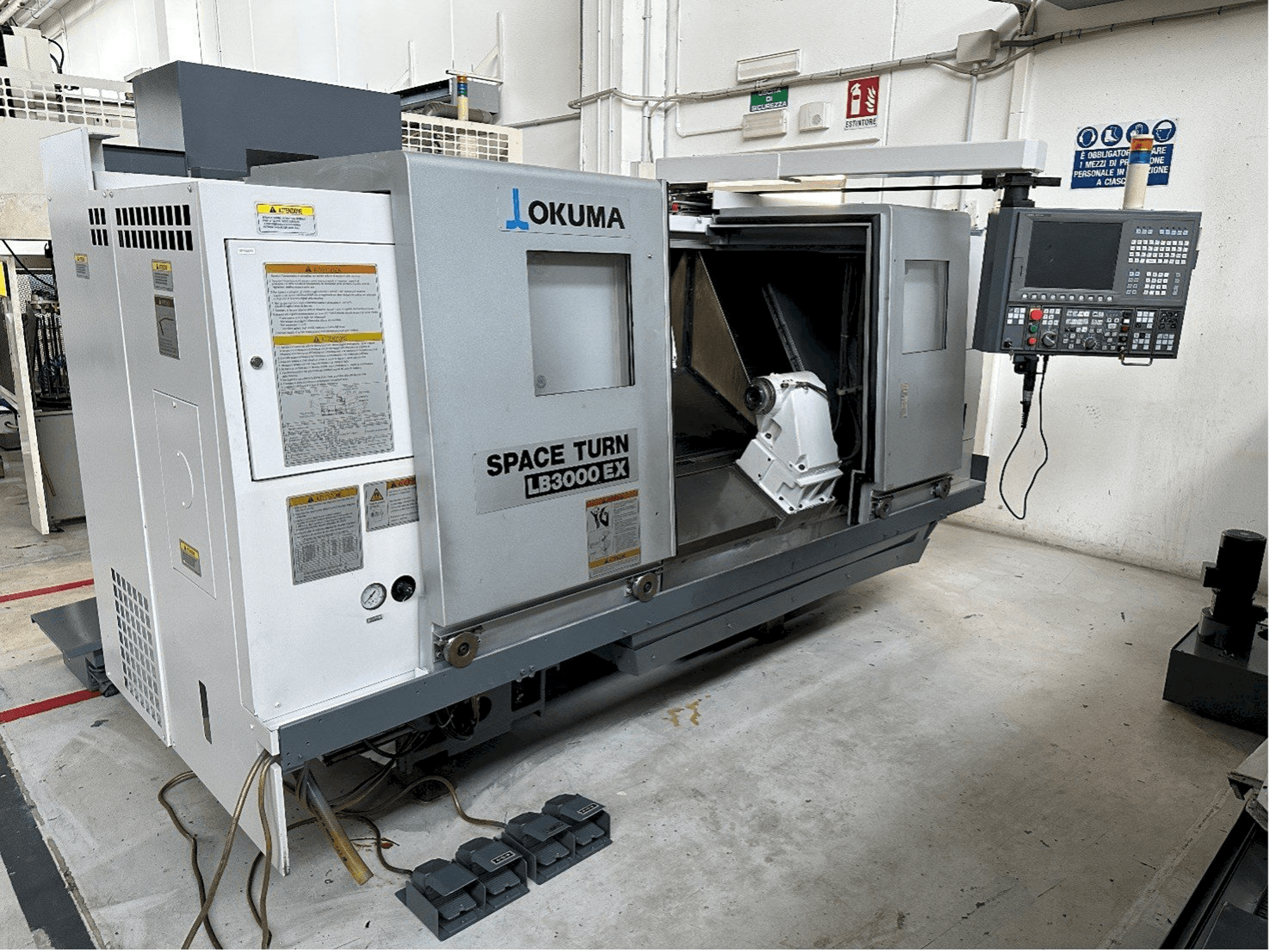

Okuma - LB 3000 EXIT-TUR-OKU-2008-00002

Additional Information

Machine Benefits

• Technical Machine Benefits:
  • - Distance between centers 1020 mm.
  • - Dia. Max rotating on the guards 580 mm.
  • - Dia. Rotary between the centers 470 mm.
  • - Dia. Max turning with std. Tools motorized 340 mm
  • - Spindle attachment asa-a2
  • - Dia. Front bearing 140 mm.
  • - Dia. Spindle hole 91 mm.
  • - Dia. Useful bar passage (with p/clipper) 80 mm.
  • - Continuously variable rpm ranges 2
  • - Maximum torque available nm 700
• Qualitative Machine Benefits:
  • - Rapid feed for x-z axes m/min. 25-30
  • - Motor power x-z axis drive kw bl 2,8/bl 3,5
  • - X axis push kgf 780, z axis push kgf 560, automatic doors, ready for robot, i blow air
  • - X-z axis activation screws dia. /pitch mm. 30-40/16, x-z axis positioning precision mm. 0,01/100 – 0,015/300
  • - Positioning repeatability x-z axis +/- mm. 0,001-0,002, stations p/tools n. 12
  • - Okuma original tool attachment, index time (1 position) sec. 0,14, index time (6 position) sec. 0,40
  • - Power stations / tools n. 12, maximum torque available nm 40. 4, maximum power available kw 7,1/4,1
  • - Rpm range g/min. 45-6000, tailstock slide stroke 1015 mm
  • - Attachment cone cm n. 5 (4), maximum admitted push kn 5 (7. 5)
  • - Self-centering dia. 250 autoblok, static tools kit, n. 2 p/axial motorized tools, n. 2 p/radial motorized tools
