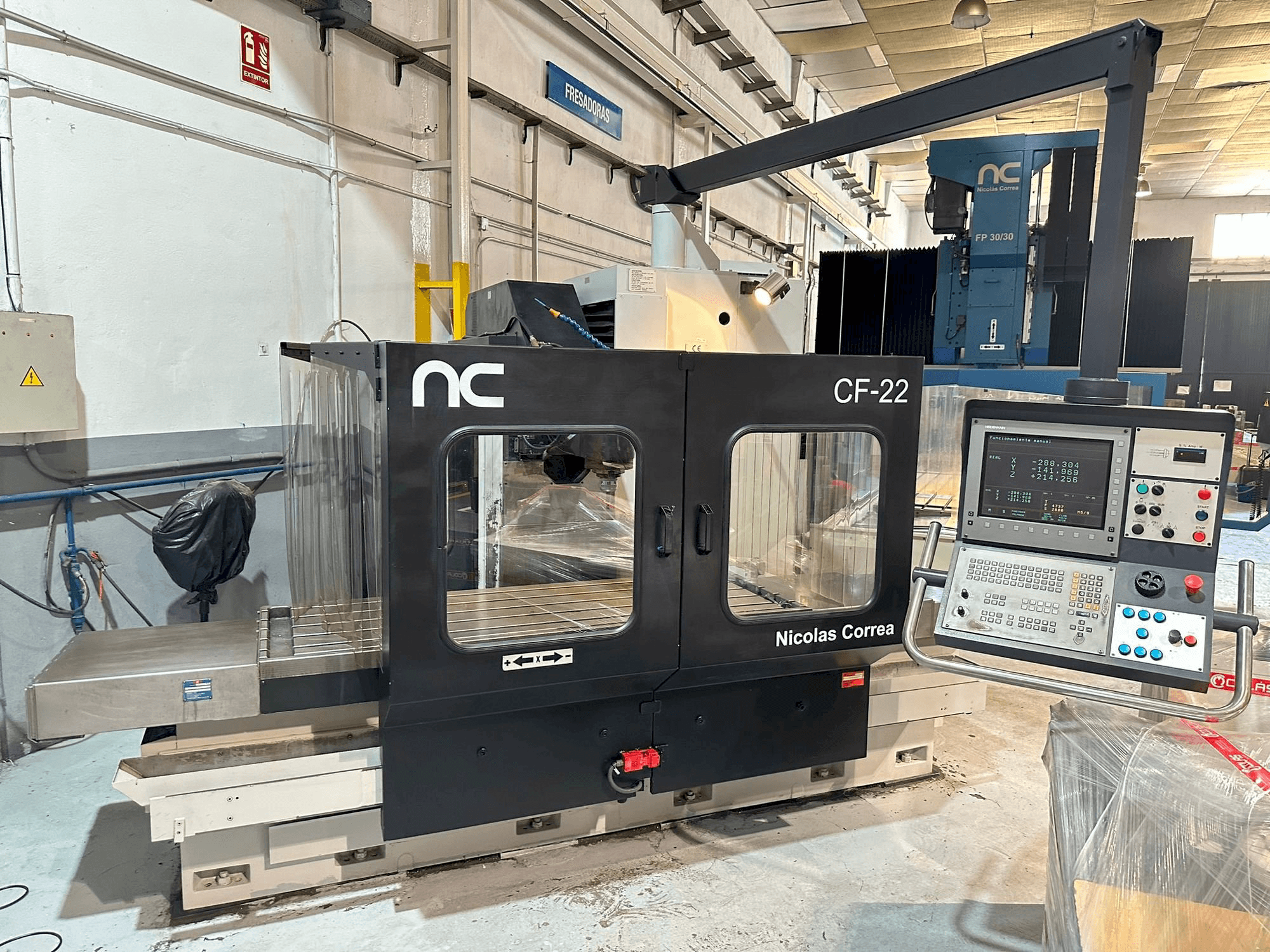

NICOLAS CORREA CF22/20 Vertical Machining center

Show in original language

This NICOLAS CORREA CF22/20 Vertical Machining center was manufactured in the year 1998 and has 31428 production hours. It is equipped with a HEIDENHAIN TNC-410 control unit and has 3 axis. The machine has a spindle speed of 20-4000 rpm.

Overview

brand: Nicolas Correa
year: 1998
MODEL: CF22/20
production hours: 31428
application type: Milling
Location: Spain
machine type: Vertical Machining Centre
availability: Sold
control unit brand: HEIDENHAIN

Technical Information - Nicolas Correa CF22/20

General Data

Machine weight: 9000 kg

Control Unit

Model: TNC-410
Brand: HEIDENHAIN

Main drive

Spindle speed range: 20 – 4000 1/MIN
Spindle motor power: 22 kW
Tool taper: ISO 50
Number of axis: 3

Movement

X-AXIS Movement: 2000 mm
X-AXIS Rapid traverse: 12.000 mm/min
Y-AXIS Movement: 800 mm
Y-AXIS Rapid traverse: 12.000 mm/min
Z-AXIS Movement: 800 mm
Z-AXIS Rapid traverse: 12.000 mm/min

Table

Outer length: 2000 mm
Outer width: 700 mm
Table load: 5000 kg

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Hydraulic tool clamping system
- - Large quantity of tools & accessories

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
