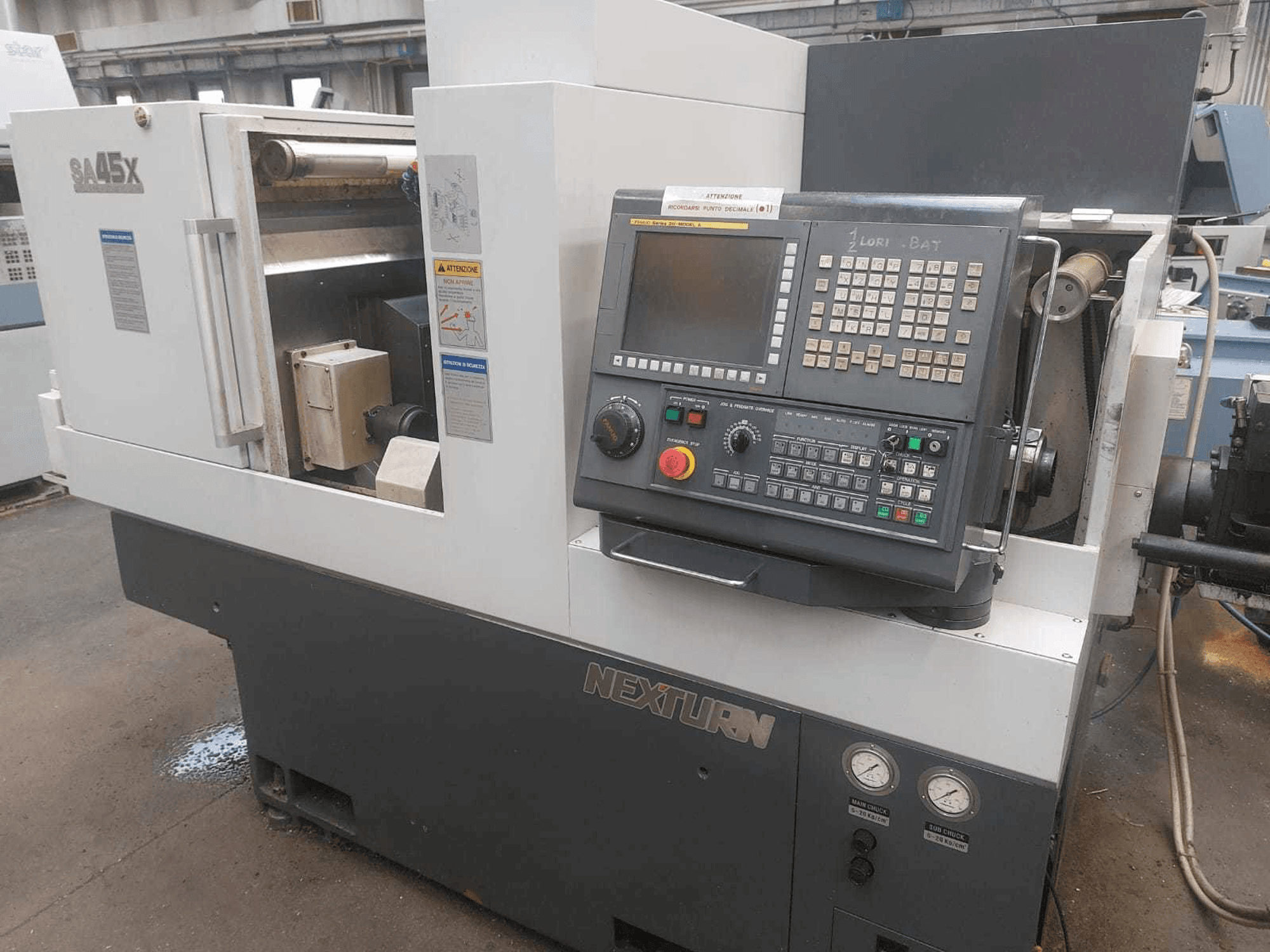

Nexturn SA 45X Swiss Type Turning machine

Show in original language

This Nexturn SA 45X Swiss Type Turning machine was built in 2013 and has 18773 hours, of which 8777 are cutting hours.. It is equipped with a Fanuc Series 31i-modelA control unit and has 6 linear axes. The machine has a spindle speed of 6000 rpm. It includes a Bar feeder Iemca Boss 545.

Overview

brand: Nexturn
year: 2013
MODEL: SA 45X
production hours: 18773
application type: Turning
Location: Italy
machine type: Swiss Type Turning Machine
availability: Sold
control unit brand: FANUC

Technical Information - Nexturn SA 45X

General Data

Measurements width: 2200 mm
Measurements depth: 1460 mm
Measurements height: 1750 mm
Machine weight: 3800 kg

Control Unit

Model: Series 31i-modelA
Brand: FANUC

Main drive

Spindle speed range: 6000 1/MIN
Spindle motor power: 11 Kw
Number of axis: 6

Movement

X-AXIS Movement: 135 mm
Y-AXIS Movement: 260 mm

Additional Equipment

- Bar feeder Iemca Boss 545

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Main spindle bar diameter 45 mm
- - Sliding headstock travel (z1) 80 mm
- - Fixed sliding headstock yes
- - Number of linear axes 6
- - Number of fixed tools tool holder plate 10
- - Number of driven tools tool holder plate 5
- - High coolant pressure yes
- - Sub spindle rpm 6000, bar diameter 45 mm, x-axis travel sub spindle 180 mm, z-axis travel sub spindle 228 mm, number of back driven tool posts 4, y-axis travel 220
- - Coolant used whole oil
- - Chip conveyor hinged belt

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
