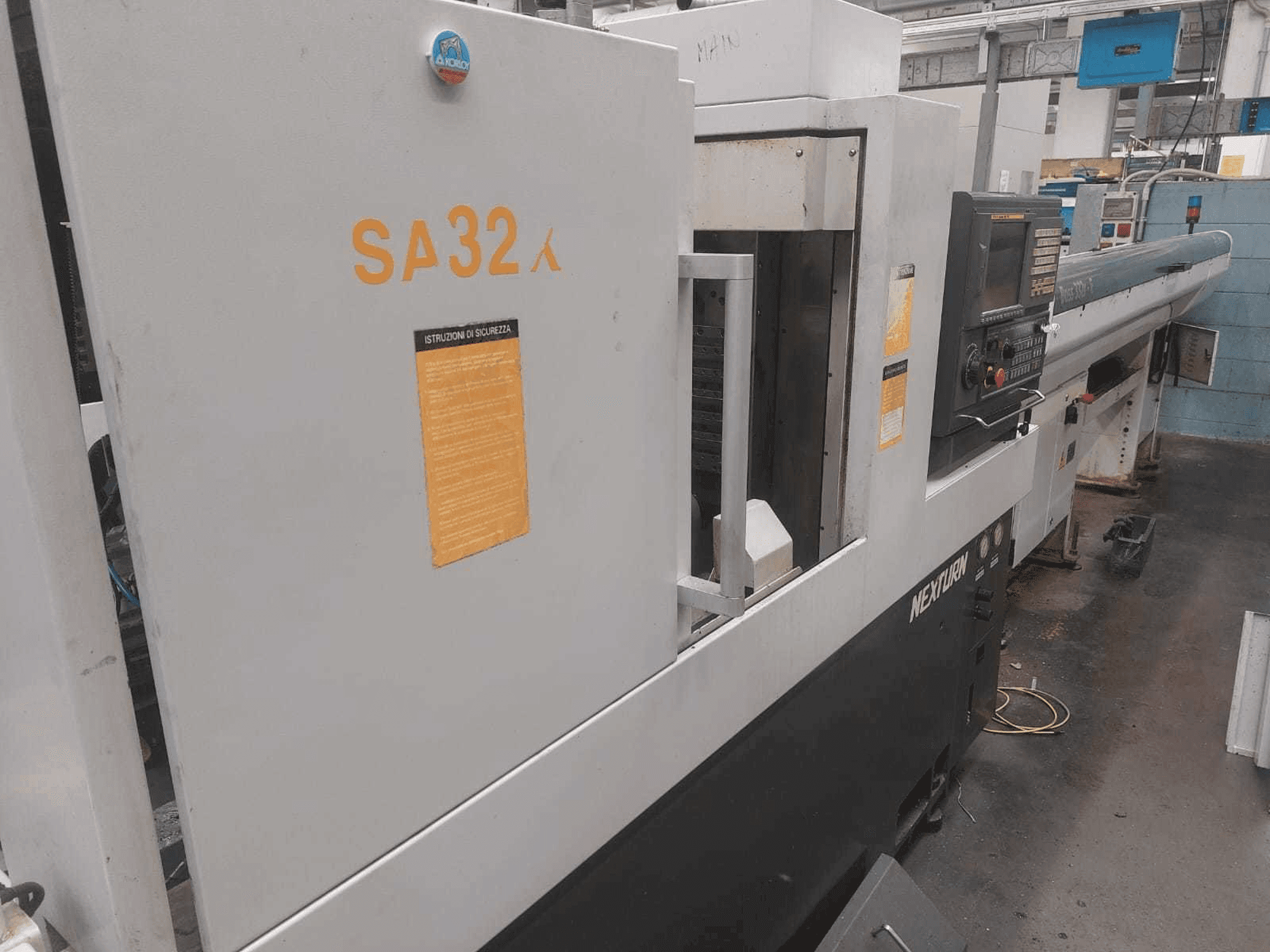

Nexturn SA 32X Swiss Type Turning machine

Show in original language

This Nexturn SA 32X Swiss Type Turning machine was manufactured in the year 2008. It is equipped with a Fanuc Series 18i-TB control unit and has 8 controlled axis. The machine has a spindle speed of 8000 rpm.

Overview

brand: Nexturn
year: 2008
MODEL: SA 32X
application type: Turning
Location: Italy
machine type: Swiss Type Turning Machine
availability: Sold
control unit brand: FANUC

Technical Information - Nexturn SA 32X

General Data

Measurements width: 2300 mm
Measurements depth: 1460 mm
Measurements height: 1750 mm
Machine weight: 3500 kg

Control Unit

Model: Series 18i-tb
Brand: FANUC

Main drive

Spindle speed range: 8000 1/MIN
Number of axis: 8

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Max. Bar turning diameter. (mm) 32mm
- - Max. Turning length (mm) 70mm
- - Max. Main mirror drilling/guiding 12mm/m10
- - Max. Counter mirror mounting diameter 26mm
- - Max. Back tools drilling/tapping 10mm/m8
- - Max. Drilling/tapping vertical tools 10mm/m8
- - Max. Modular live tool disc-mill diameter
- - Max. Main mirror revolution 8,000rpm
- - Max. Opposite mirror revolution 8,000rpm
- - Max. Era of vertical sets 6,000rpm
Qualitative Machine Benefits:
- - Total number of teams 24(26)
- - External diameter/vertical live tools/internal diameter tools od 5/cross2-4/id 5
- - Pre-face sets, take-back sets 7,
- - Tool size 16x120mm, fast idle motion 24mm/min
- - Controlled axis 8
- - Main mirror positioning cs+1/1000゜, opposite mirror positioning cs+1/1000゜
- - Main mirror motor 7. 5/5. 5kw, counter mirror motor 3. 7/2. 2kw, vertical live tool engine 1. 0kw, back live teams engine 1. 0kw, cooling pump motor 0. 9kw, central lubrication pump motor 0. 04kw
- - Cooling tank capacity 195l
- - Center height 1000mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
