Nexturn NST 38 Lathe

Show in original language

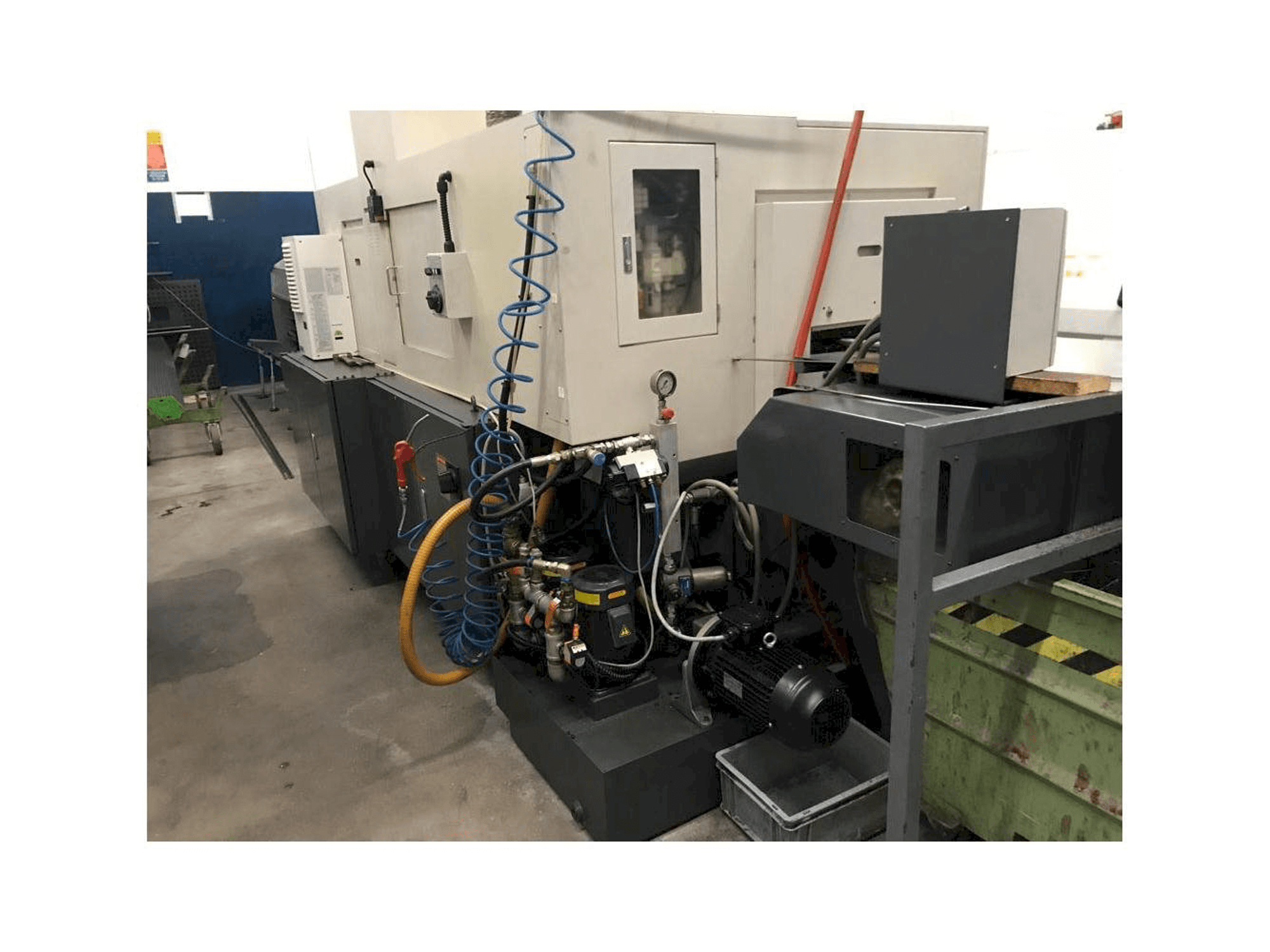

This Nexturn NST 38 Lathe was made in 2013 in Korea. It is equipped with a Fanuc Series 31-i Model A control unit and has 11 axis. The machine has a spindle speed of 8000 rpm.

Overview

brand: Nexturn
year: 2013
MODEL: NST 38
application type: Turning
Location: Italy
machine type: Swiss Type Turning Machine
availability: Sold
control unit brand: FANUC

Technical Information - Nexturn NST 38

Control Unit

Model: Series 31-i Model A
Brand: FANUC

Main drive

Spindle speed range: 8000 1/MIN
Spindle motor power: 11/15 kW
Number of axis: 11

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Turning diameter from bar Ø 38 mm
- - Drilling diameter Ø 16 mm/m12
- - Turning length 150 mm
- - Hole size 16mm
- - Turning diameter from bar max. Ø8-38mm
- - Counter-spindle rotation speed: 6000 rpm
- - Counter-spindle motor power 2. 2/5. 5 kw
- - No. Of axes 11 (x1-y1-z1) (x2 -y2-z2) (x3-y3-z3) y2(c1-c2)
- - Rapid advances y1-y2-y3 24m/min
- - 8-position tool turret
Qualitative Machine Benefits:
- - Lns bar feeder
- - Accessories chip conveyor

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
