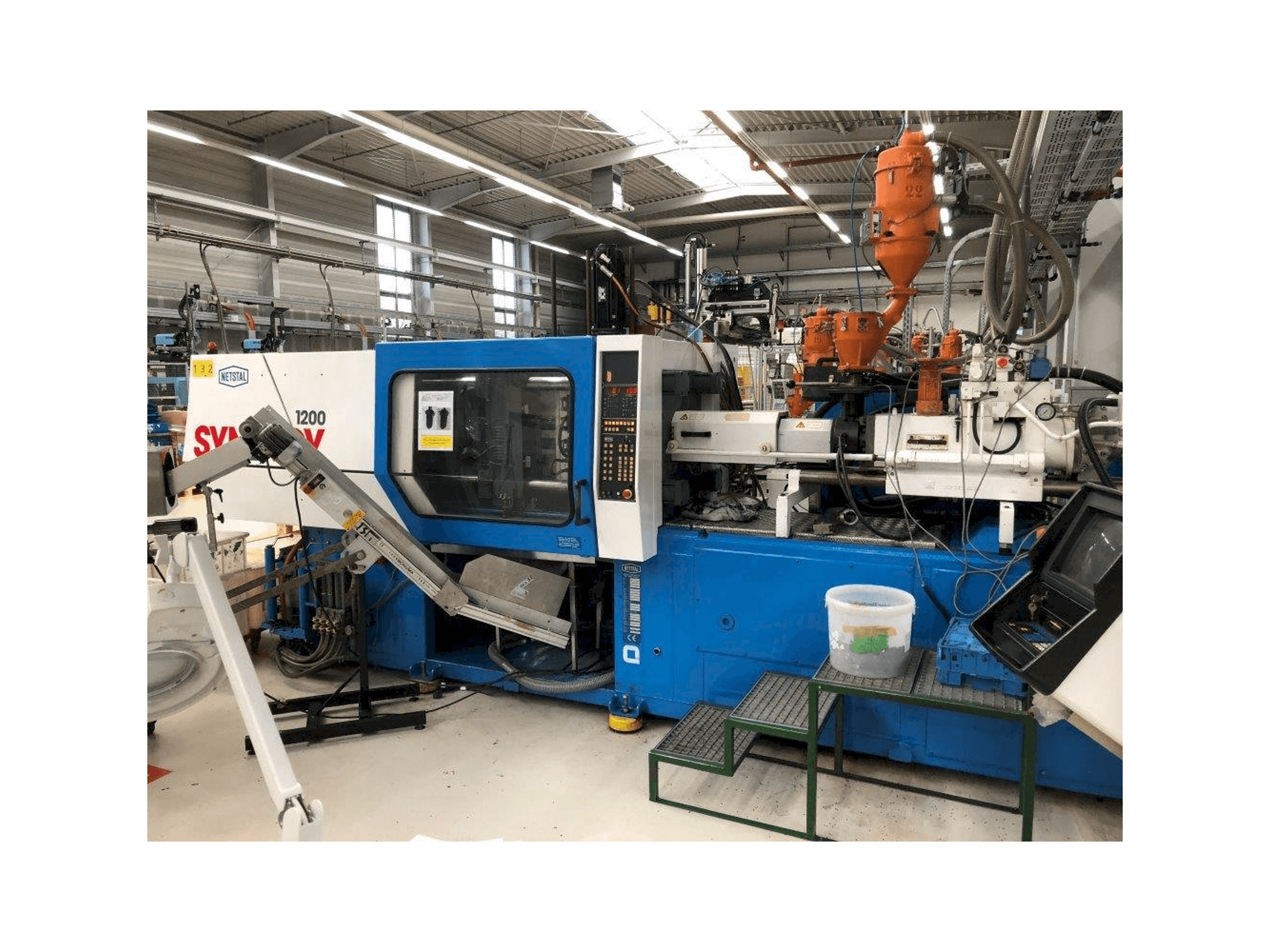

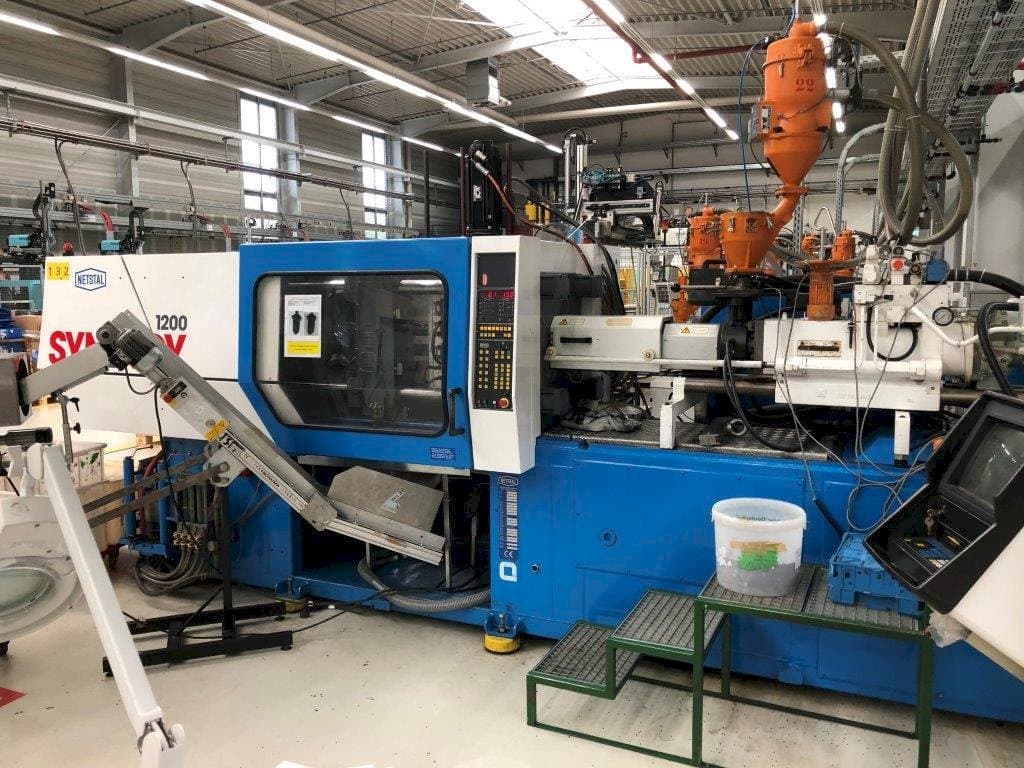

Netstal Synergy S1200-230 Injection Moulding Machine

Show in original language

This Netstal Synergy S1200-230 Injection Moulding Machine was manufactured in 1998 and has been operative for approximately 67000 hours. This machine can perform with a clamping force of 1200 kN.

Overview

brand: Netstal
year: 1998
MODEL: Synergy S1200-230
production hours: 67000
application type: Injection Moulding
Location: Germany
machine type: Electrical Injection Moulding Machine
availability: Sold

Technical Information - Netstal Synergy S1200-230

General Data

Machine weight: 6803 kg

Injection Unit

Screw diameter: 35 mm
Shot weight: 118 g (PS)
Stroke volume: 123 CM³
Injection pressure: 1890 bar
Plasticizing rate max.: 28 g/s
Heating capacity: 17.7 kW
Nozzle pressure: 57 kN

Clamping unit

Clamping force: 1200 kN
Opening stroke: 400 mm
Distance between bars: 460x460 mm
Mould height min: 250 mm
Mould height max: 550 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
