➤ Used Netstal ELION 800-270 S For Sale | gindumac.com

Show in original language

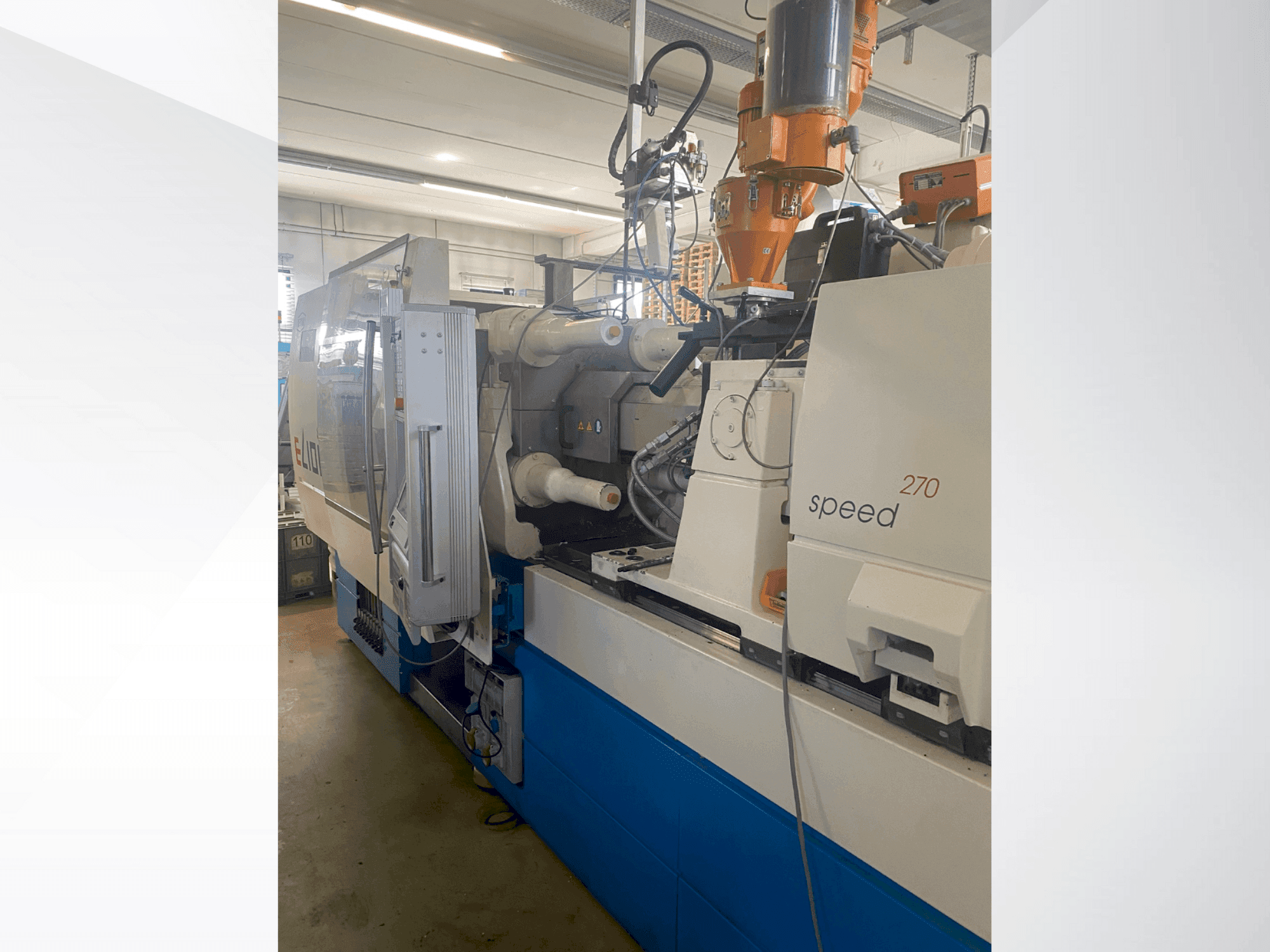

This Netstal ELION 800-270 S was manufactured in 2013. A robust hydraulic injection moulding machine featuring a closing force of 800 KN and a screw diameter of 35 mm. It supports a shot weight of 118.1 gr and an injection speed up to 450 mm/s. Ideal for precision molding with a mould weight capacity up to 1174 kg. Consider the Netstal ELION 800-270 S machine we have for sale. Contact us for further details regarding this injection moulding machine.

Overview

brand: Netstal
year: 2013
MODEL: ELION 800-270 S
application type: Injection Moulding
Location: Switzerland
machine type: Hydraulic Injection Moulding Machine
availability: Sold

Technical Information - Netstal ELION 800-270 S

General Data

Measurements width: 1711 MM
Measurements depth: 4776 MM
Measurements height: 2042 MM
Machine weight: 8300 KG

Injection Unit

Screw diameter: 35 mm
Shot weight: 118.1 g (PS)
Stroke volume: 123.2 cm³
Injection pressure: 2007 bar
Heating capacity: 17.7 kW

Clamping unit

Clamping force: 800 kN
Opening stroke: 350 mm
Distance between bars: 410 x 410 mm
Mould height min: 200 mm
Mould height max: 500 mm
Ejector stroke: 120 mm
Ejector force for / back: 27 kN

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Max metering stroke: 128 mm
- - Standard injection flow rate: 240. 5 cm³/s
- - Power injection flow rate: 433 cm³/s
- - Max injection speed standard/power: 250 / 450 mm/s
- - Max screw speed force/speed/master: 400 / 530 / 550 rpm
- - Max torque force: 480 nm
- - Max torque speed: 330 nm
- - Max torque master: 480 nm
- - Opening force: 800 kn
- - Mold installation height ii: 400 – 700 mm
Qualitative Machine Benefits:
- - Max mold weight: 1174 kg
- - Max retraction force: 27 kn
- - Dry cycle stroke: 1. 3 – 287 s – mm
- - Nozzle contact force: 25 / 50 kn
- - Nozzle lift-off stroke: 510 mm

Extra information

- Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
