NAKAMURA-TOME WTW-150 Lathe

Show in original language

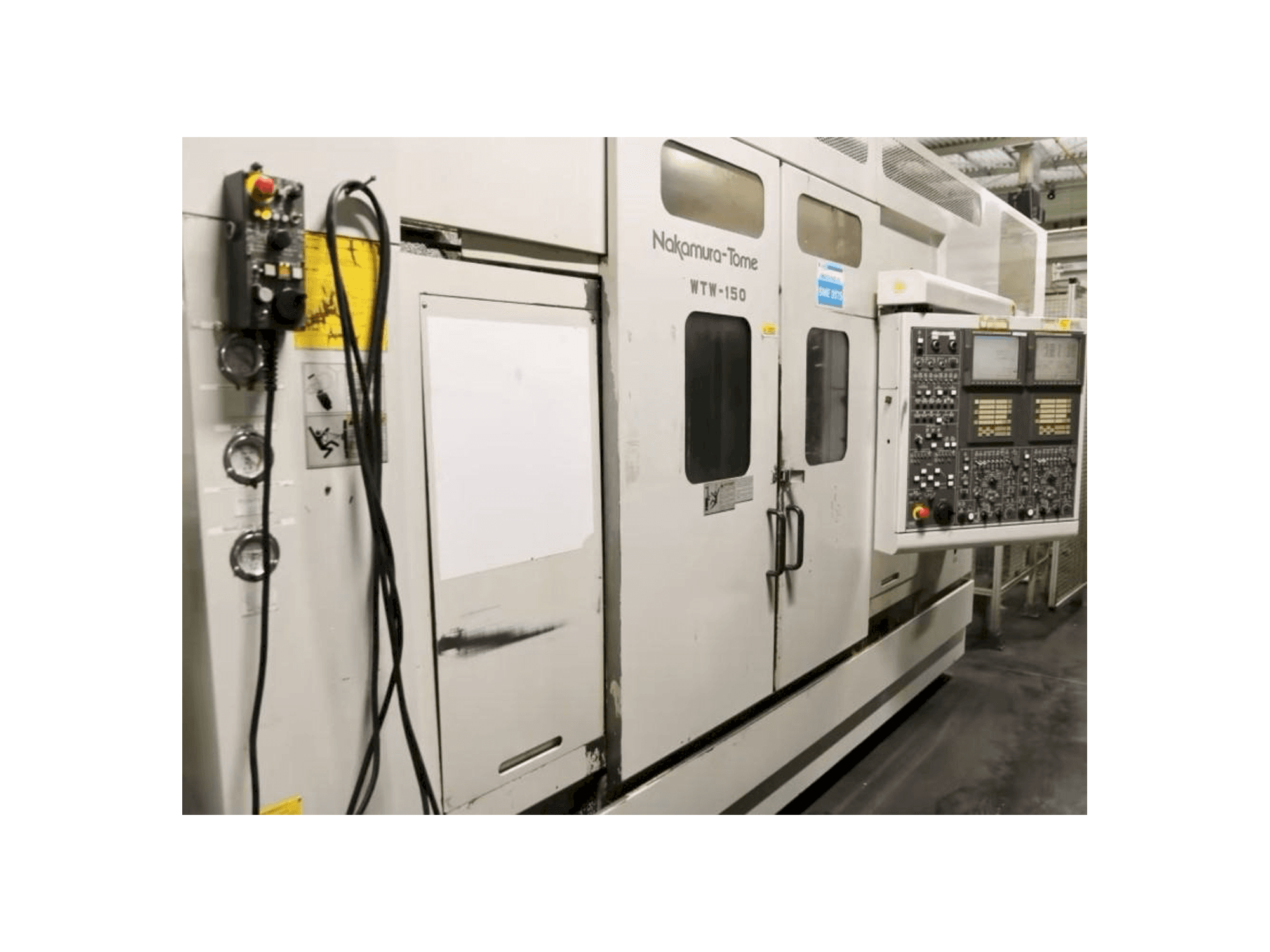

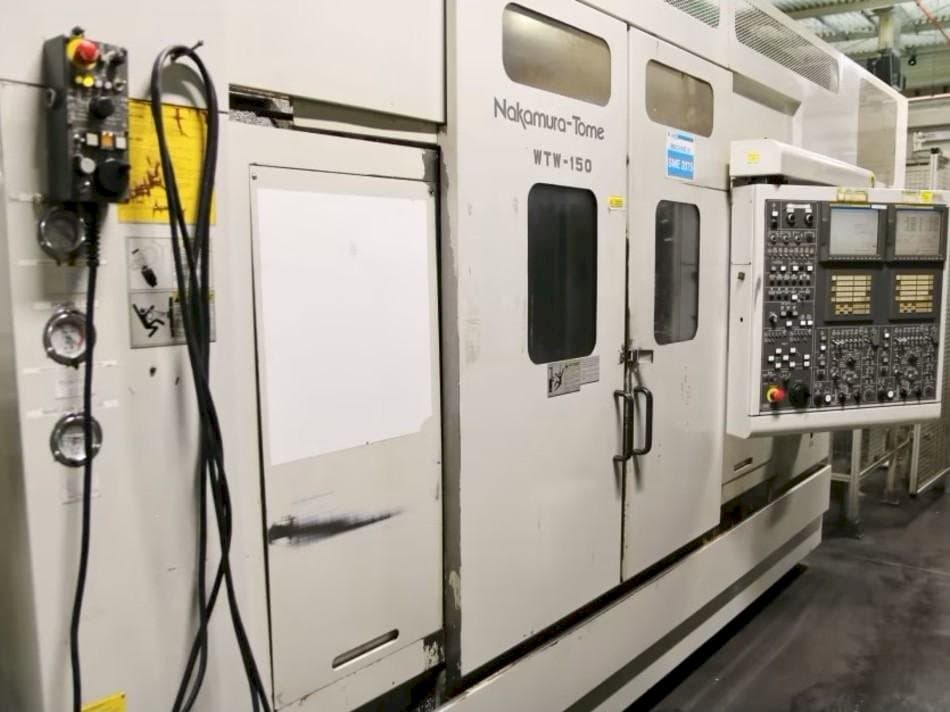

This NAKAMURA-TOME WTW-150 Lathe was manufactured in the year 2004 in Japan. It is equipped with a Fanuc control unit. The machine has a spindle speed of 4000 to 6000 rpm. 2 units are available.

Overview

brand: NAKAMURA-TOME
year: 2004
MODEL: WTW-150
application type: Turning
Location: Turkey
machine type: Turn-Mill Centre
availability: Sold
control unit brand: FANUC

Technical Information - NAKAMURA-TOME WTW-150

General Data

Measurements width: 2330 mm
Measurements depth: 3850 mm
Measurements height: 2320 mm

Control Unit

Brand: FANUC

Main drive

Spindle speed range: 4000-6000 1/MIN

Turret

Number of turrets: 4

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Max. Turning diameter/max. Turning length: 310mm/255mm
- - Distance between spindle nose: max. 1,070mm/min. 195mm
- - Bar capacity: 65mm 51mm
- - Chuck size: 6″
- - Upper turret slide travel x/z/b2 207. 5/300/875mm
- - Slide travel y: 207. 5/300mm
- - Lower turret slide travel x/xz: 60mm（±30）×2
- - Left spindle right spindle
- - Driven motor power and torque: 3. 7/2. 2k w　23. 6/14 n. M
- - Type of turret head/number of index positions dodecagonal/24 rotary system/number of driven-tool stations individual rotation/12
Qualitative Machine Benefits:
- - Y axis on the upper turrets live tooling no chucks included standard package of static tool holders

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
