NAKAMURA-TOME WT-250 MMY Lathe

Show in original language

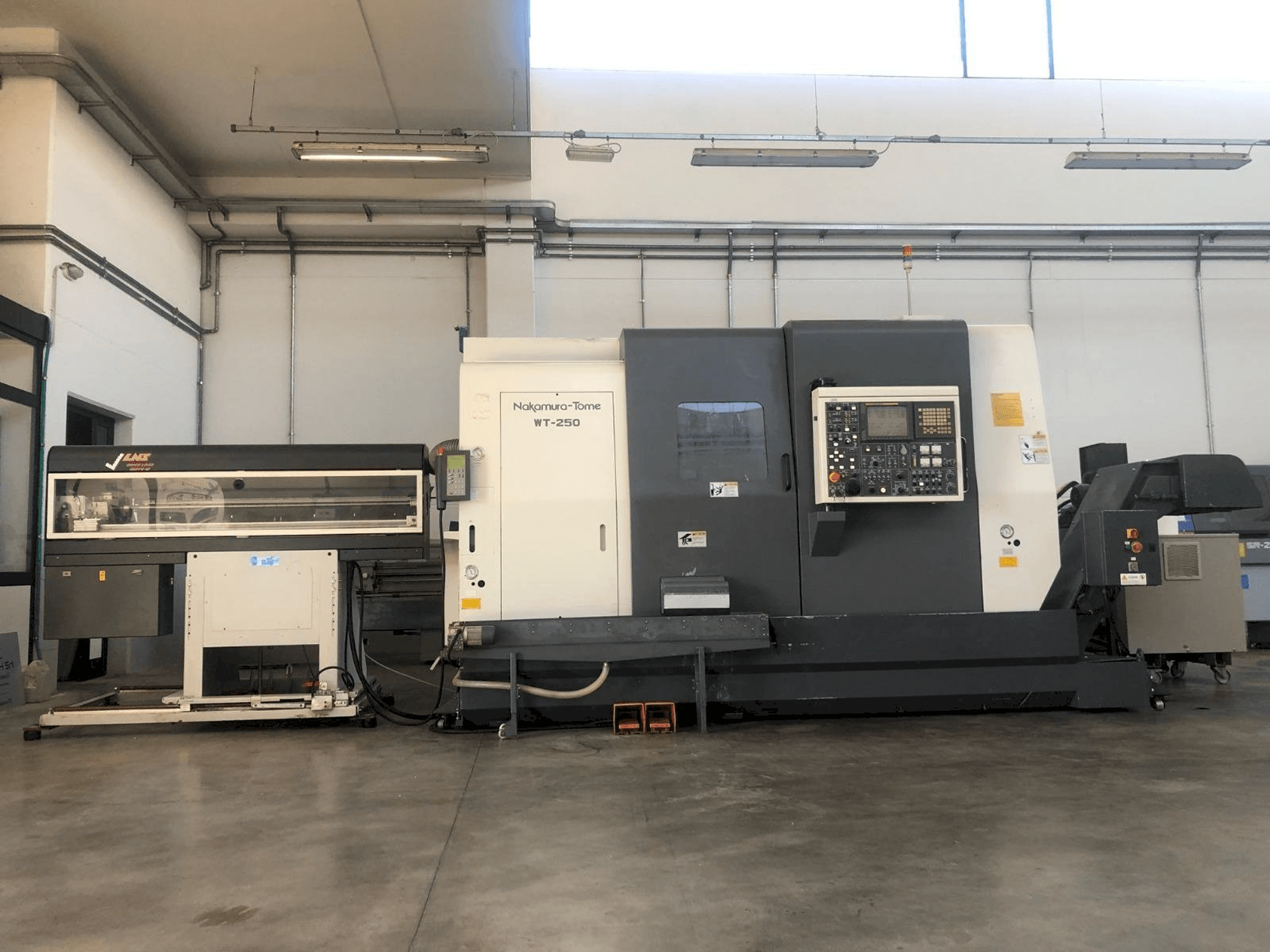

This NAKAMURA-TOME WT-250 MMY Lathe was built in the year 2005 in Japan. Operated through a FANUC 18i-TTB Control unit, this machine can perform with a spindle speed up to 4500 rpm.

Overview

brand: NAKAMURA-TOME
year: 2005
MODEL: WT-250 MMY
application type: Turning
Location: Italy
machine type: Turn-Mill Centre
availability: Sold
control unit brand: FANUC

Technical Information - NAKAMURA-TOME WT-250 MMY

General Data

Measurements width: 4059 mm
Measurements depth: 2314 mm
Measurements height: 2225 mm
Machine weight: 8700kg

Control Unit

Model: 18i-TTB
Brand: FANUC

Main drive

Number of spindles: 2
Spindle speed range: 4500 1/MIN

Movement

X-AXIS Movement: 195 mm
Y-AXIS Movement: +- 41 mm
Z-AXIS Movement: 600 mm

Turret

Number of turrets: 12
Number of tool slots: 12

Additional Equipment

- QUICK LOAD SERVO III LNS bar loader
- N. 7 radial driven tools
- N. 6 axial driven tools
- Static tool kit
- Losma fume extractor
- Pneumatic piece ejector
- Chip conveyor with evacuation mat

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Spindle nose: a2-6
- - Counter spindle nose: a2-5
- - Spindle bar passage: 71 mm
- - Counter spindle bar passage: 51 mm
- - Spindle self-centering diameter: 210 mm
- - Counter spindle self-centering diameter: 165 mmm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
