NAKAMURA-TOME - WT-150IL-TUR-NAK-2011-00001
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- NAKAMURA-TOME WT-150 twin spindle twin turret turning center machine

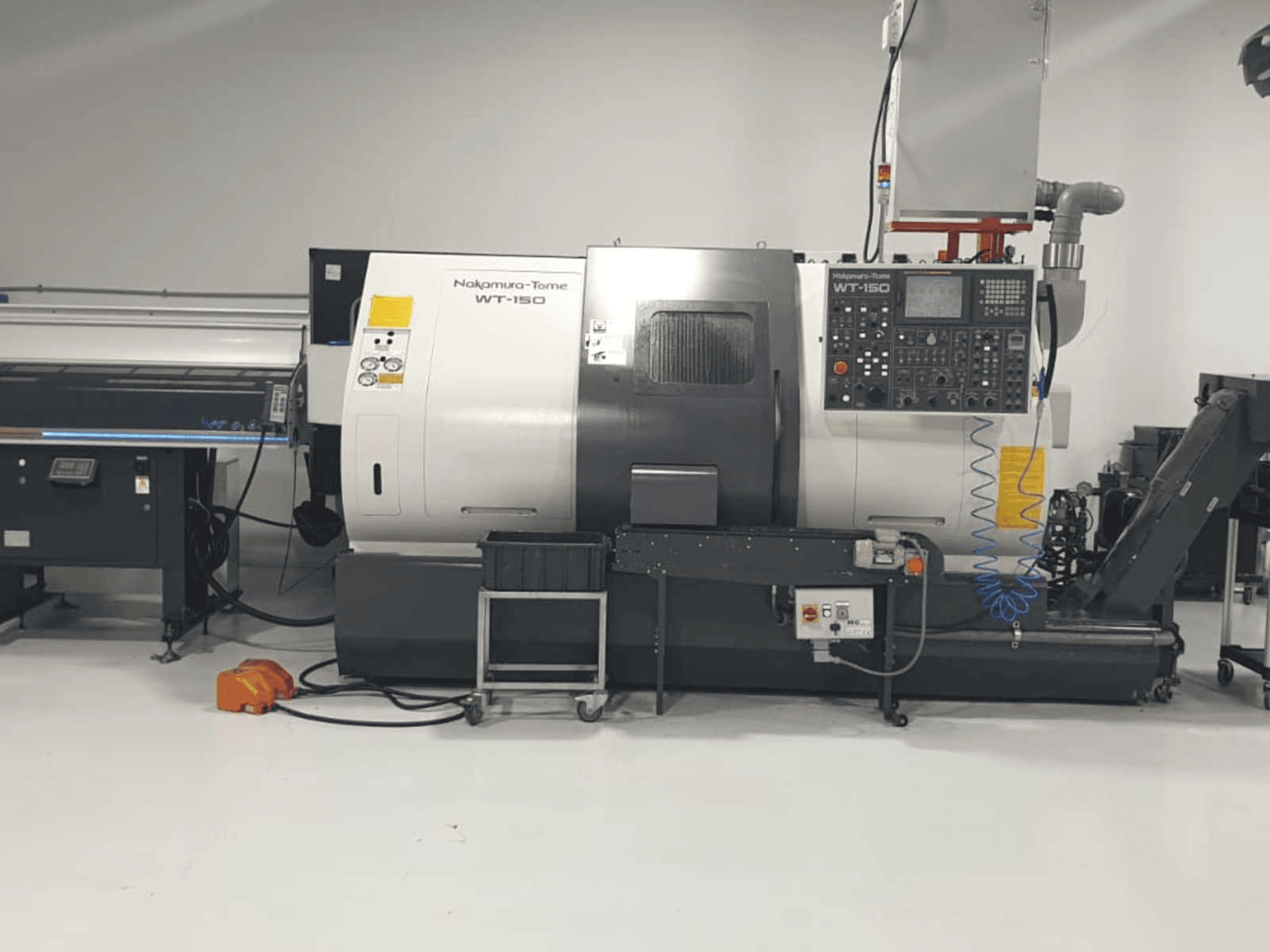

This NAKAMURA-TOME WT-150 twin spindle twin turret turning center machine was manufactured in the year 2011 in Japan and has 55938 production hours of which 27243 are cutting hours. It is equipped with a FANUC 18i-TB 2-PATH control unit. The machine has a spindle speed of 5000 rpm, it includes a bar feeder, chip conveyor, transformer, and tool holders made by Heimatec GmbH, Germany.
Overview
- brand: NAKAMURA-TOME
- year: 2011
- MODEL: WT-150
- production hours: 55938
- application type: Turning
- Location: Israel
- machine type: Turn-Mill Centre
- availability: Sold
- control unit brand: FANUC
Technical Information - NAKAMURA-TOME WT-150
General Data
- Measurements width: 3615 mm
- Measurements depth: 1985 mm
- Measurements height: 1860 mm
- Machine weight: 8900 kg
Control Unit
- Model: 18i-TB 2-PATH
- Brand: FANUC
Main drive
- Spindle speed range: 5000 1/MIN
Tools
- Number of stations: 24
Additional Equipment
- - The machine includes a bar feeder, chip conveyor, transformer and tool holders made by heimatec GmbH, Germany
Additional Information
- Technical Machine Benefits:
- - Max. Turning diameter: 190 mm
- - Standard turning diameter: 170 mm
- - Distance between centers: 200 - 750 mm
- - Max. Turning length: 515 mm
- - Bar capacity: 51 - 65 mm
- - Chuck size (both): 165 mm
- - 12 milling stations in all turret (12/24)
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
