➤ Used Nakamura-Tome Super NTM3 - 2007 - Lathe For sale

Show in original language

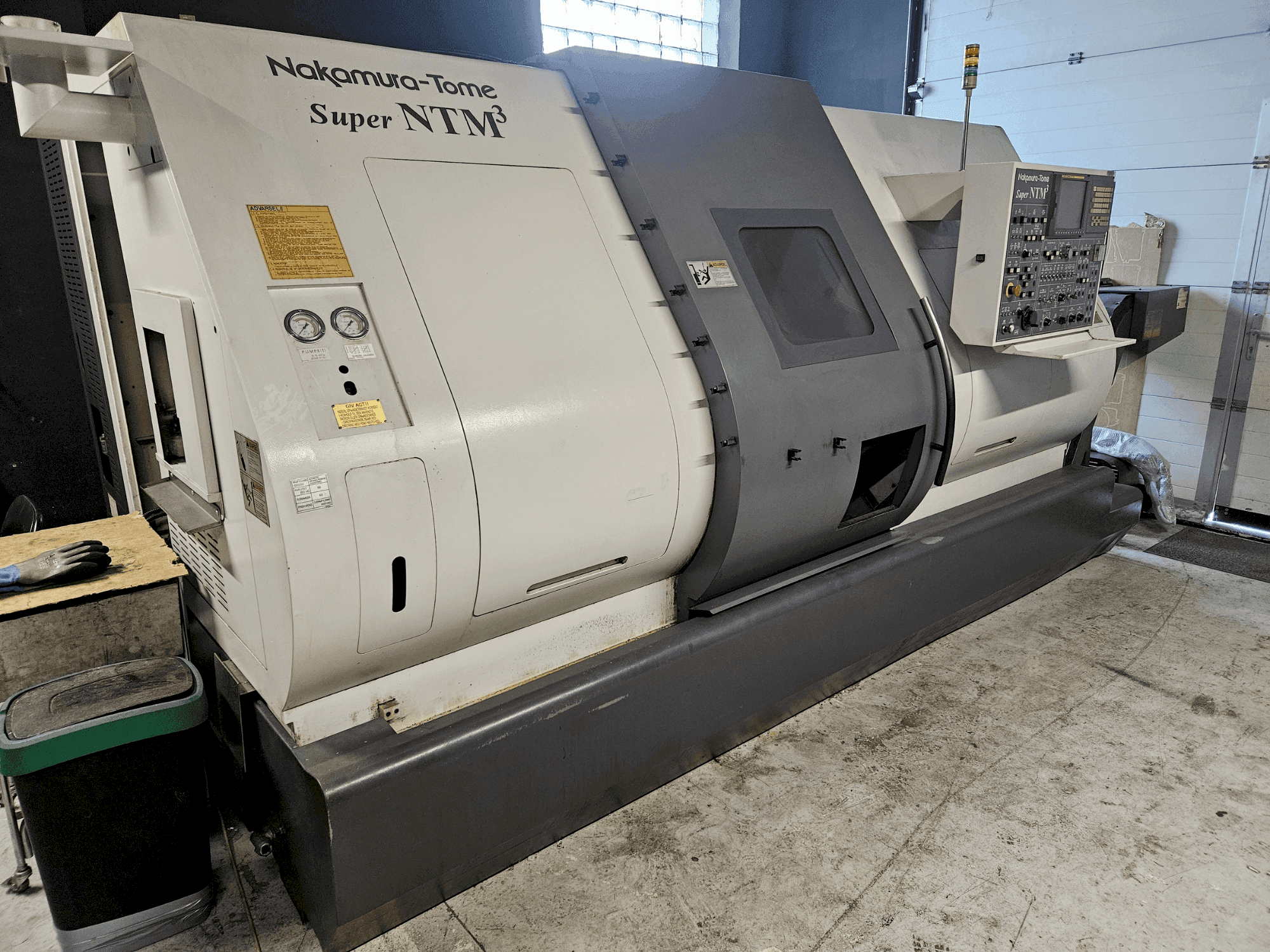

This 11-axis Nakamura-Tome Super NTM3 was manufactured in 2007. It features dual spindles, three turrets, and a Fanuc 16i-TB control system. The main spindle has a 15 kW power with speeds up to 4500 rpm, and the counter-spindle offers 11 kW power with speeds up to 5000 rpm. The machine has a large working space with a maximum turning diameter of 190 mm and a bar diameter of 65 mm. It's a great opportunity to buy this Nakamura-Tome lathe. Contact us for further details.

Overview

brand: NAKAMURA-TOME
year: 2007
MODEL: Super NTM3
application type: Turning
Location: Poland
machine type: Turn-Mill Centre
availability: Immediately
control unit brand: FANUC

Technical Information - NAKAMURA-TOME Super NTM3

General Data

Measurements width: 2270 mm
Measurements depth: 3930 mm
Measurements height: 2110 mm
Machine weight: 12000 kg

Control Unit

Model: 16i-TB
Brand: FANUC

Main drive

Number of spindles: 2
Spindle speed range: 4500 // 5000 1/MIN
Spindle motor power: 15 kW // 11 kW
Number of axis: 11

Turret

Number of turrets: 3

Tools

Number of stations: 24
Slots in storage: 12

Additional Equipment

- Parts catcher
- Parts conveying strip
- Bar loader: IRCO MUK 7012-II (2016)
- Electric transformer
- Barfeeder Breuning IRCO SiMag is included

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Main spindle max. Bar diameter: 65 mm
- - Main spindle max. Turning diameter: 190 mm
- - Main spindle c axis indexing precision: 0. 001°
- - Counter-spindle max. Bar diameter: 52 mm // max. Turning diameter: 190 mm // c axis indexing precision: 0. 001° // _counter-spindle distance_ 970 mm
- - Number of positions: 24
- - Number of motorized positions: 12
- - Y stroke: 102 mm
- - X/z stroke: 167. 5/250 mm
- - Live tools speed: 6000 rpm
- - Live tools power: 5. 5 kw

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
