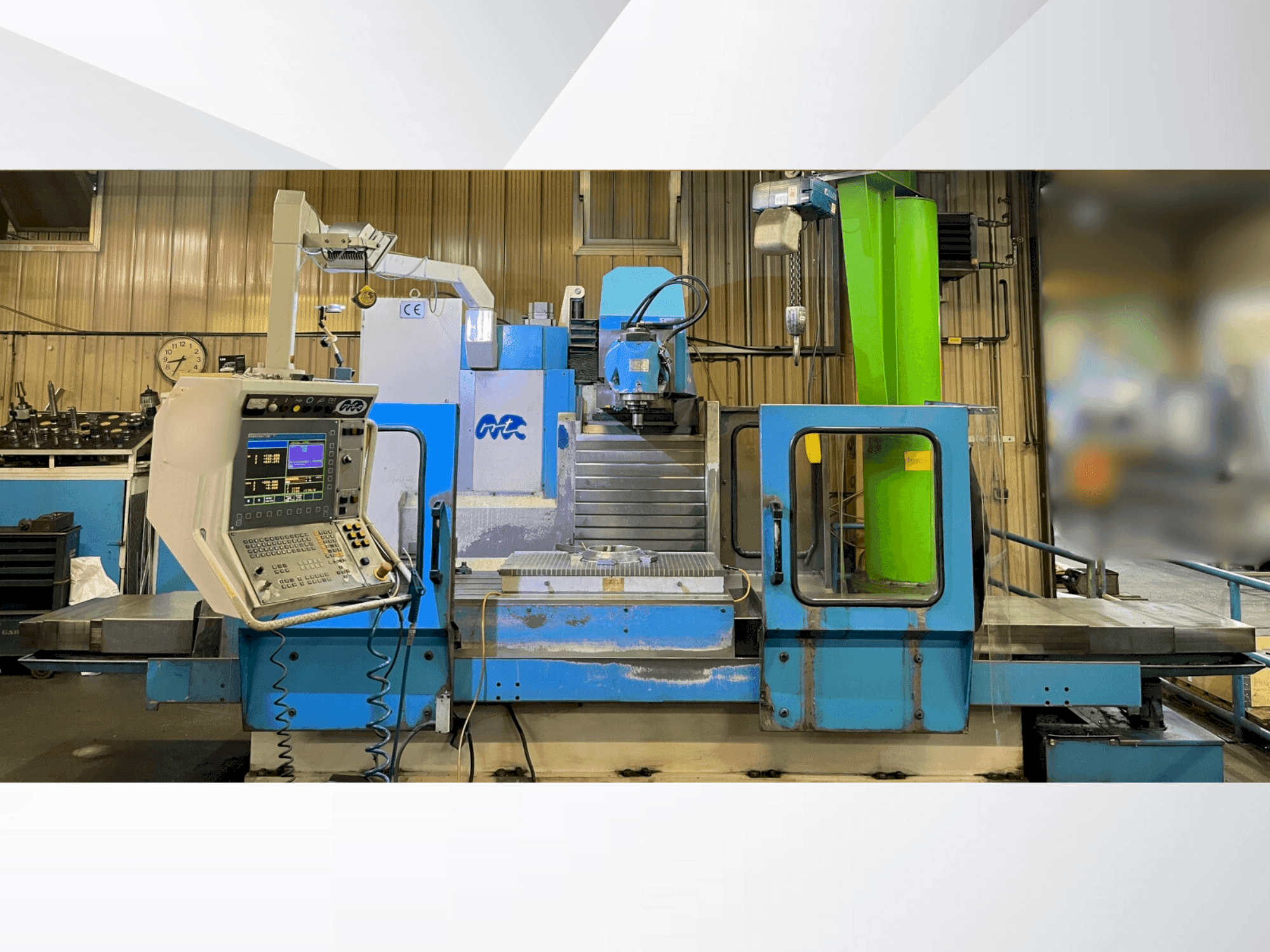

This 3-axis MTE Kompakt Plus vertical machining center was manufactured in 1999. It offers robust construction and precision for a variety of machining applications. Consider the opportunity to buy this MTE Kompakt Plus vertical machining center. Contact us for more information.
Overview
- brand: MTE
- year: 1999
- MODEL: Kompakt Plus
- application type: Milling
- Location: Germany
- machine type: Vertical Machining Centre
- availability: Immediately
- control unit brand: HEIDENHAIN
Technical Information - MTE Kompakt Plus
General Data
- Machine weight: 10000 KG
Control Unit
- Brand: HEIDENHAIN
- Model: TNC 410
Main drive
- Tool taper: 50 DIN 2080
- Number of axis: 3
Movement
- X-AXIS Movement: 2000 mm
- Y-AXIS Movement: 800 mm
- Z-AXIS Movement: 800 mm
Table
- Table load: 4000 kg
Clamping unit
- Clamping force: 1500 KN
Additional Information
- Technical Machine Benefits:
- - Clamping surface: 2200x750
- - T-slots number-width: 5-18
- - Distance between t-slots: 140
- - Hydraulic tool clamping: yes
- - Tool clamping bar: iso 7388/2-a
- - Spindle angle position: manual
- - Motor power: 15 kw
- - Infinitely variable speed: 40-2500 rpm
- - Milling feed rate: 0-4000
- - Positioning feed: 10
- Qualitative Machine Benefits:
- - Maximum feed force: (x-z) 1350 - (y) 1000
- - Maximum feed force: (x-z) 1350 - (y) 1000
- - Positioning accuracy (mm): < 0. 012
- - Repeatability (mm): < 0. 007
- - Hydraulic unit power: 2. 2 kw pump capacity: 8 l/min operating pressure: 70 bar tank capacity: 30 l
- - Coolant unit capacity: 0. 28 l/min pump capacity: 75 l/min tank capacity: 1202. 3 l
- - Guideways on all three axes made of pearl cast iron (gg-25), induction-hardened (hardness 480-500 vickers) and ground. Counter-guides made of plastic designed for slow driving (anti-stick-slip). High load resistance up to 20 kg/cm² with good vibration absorption.
- - High wear resistance
- - Good vibration absorption
- - Machine still under power
Machine Benefits
Extra information
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
