➤ Used MORI SEIKI MV 40B/40 For Sale | gindumac.com

Show in original language

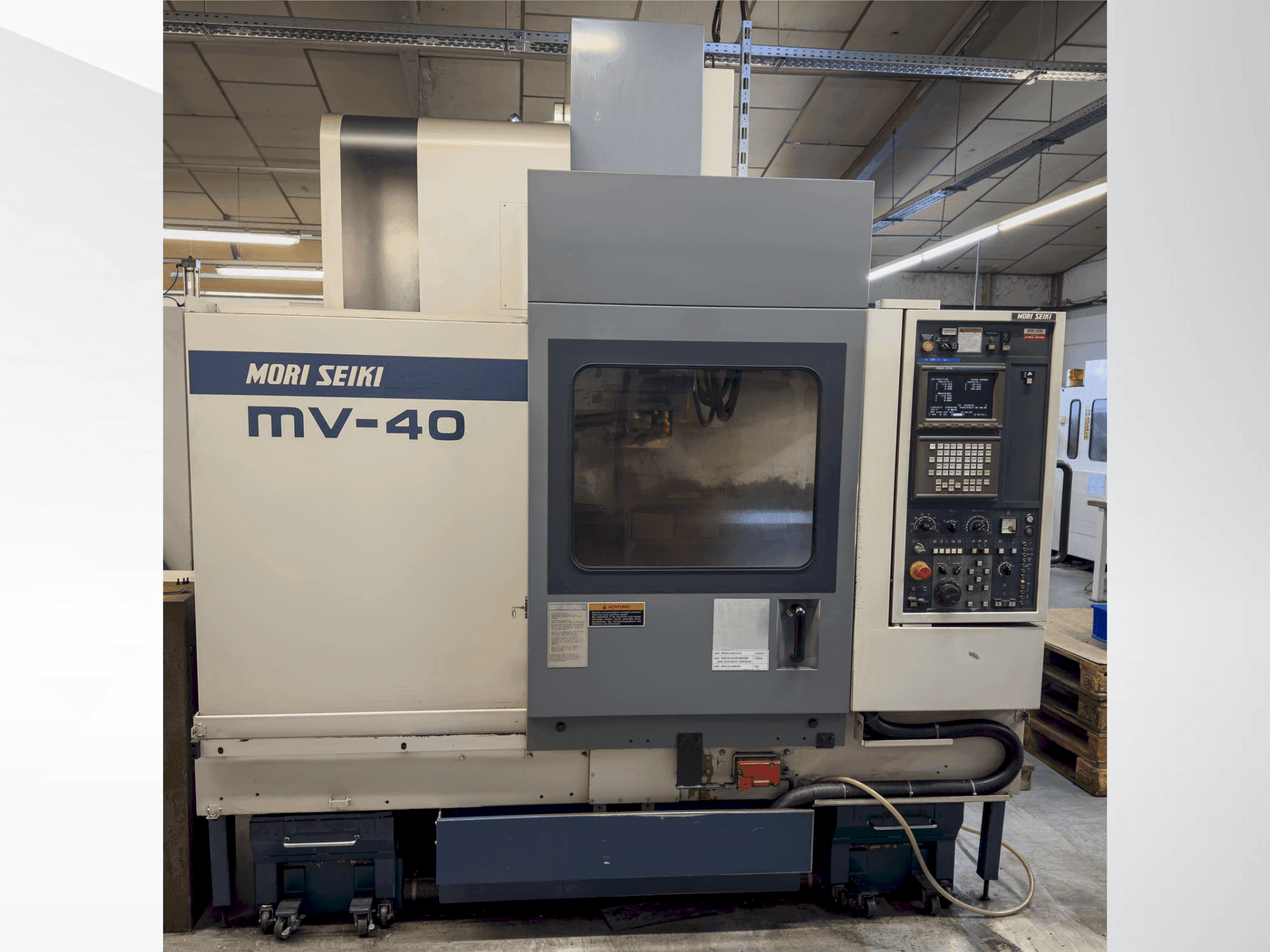

This 3-axis MORI SEIKI MV 40B/40 vertical machining centre was manufactured in 1995. Consider the opportunity to buy this MORI SEIKI MV 40B/40 vertical machining centre. Contact us for more information.

Overview

brand: MORI SEIKI
year: 1995
MODEL: MV 40B/40
application type: Milling
Location: Germany
machine type: Vertical Machining Centre
availability: Immediately

Technical Information - MORI SEIKI MV 40B/40

General Data

Measurements width: 2576 MM
Measurements depth: 2583 MM
Measurements height: 2770 MM
Machine weight: 6300 KG

Main drive

Spindle speed range: 8000 1/MIN
Spindle motor power: 47 A
Tool taper: BT40

Movement

X-AXIS Movement: 800 mm
X-AXIS Feed Force: 1-5000 mm/min
X-AXIS Rapid traverse: 20000 mm/min
Y-AXIS Movement: 410 mm
Y-AXIS Feed Force: 1-5000 mm/min
Y-AXIS Rapid traverse: 20000 mm/min
Z-AXIS Movement: 510 mm
Z-AXIS Feed Force: 1-5000 mm/min
Z-AXIS Rapid traverse: 15000 mm/min

Workpiece

Workpiece weight: 700 kg

Table

Outer length: 1100 mm
Outer width: 450 mm

Tools

Slots in storage: 20
Max weight: 8 kg
Max tool diameter: 80<125> mm
Max tool length: 250 mm

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Frequency: 50 hz
- - Control unit: msc-516
- - Fine feed rate: 0-1260 mm/min in 15 steps
- - Table form: 18 mm, 4 t-slots
- - Tool shank type: mas bt-40
- - Pull stud type: for 90° version of mori seiki [mas i-ii/iso]
- - Tool change time (tool-tool) <mas>: 1. 5 sec
- - Tool change time (chip-chip) <mas>: 5. 2 sec
- - Diameter of front bearing: 65 mm
- - Spindle motor (30 min/continuous): 7. 5/5. 5 kw
Qualitative Machine Benefits:
- - Feed motor: x, y: 0. 9 kw, z: 2. 8 kw
- - Power supply: 19. 6<msc-516> 33. 7<msc-680> kva
- - Air pressure connection: 0. 5 mpa, l/min

Extra information

- Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
