Mitsui Seiki HU80A Milling

Show in original language

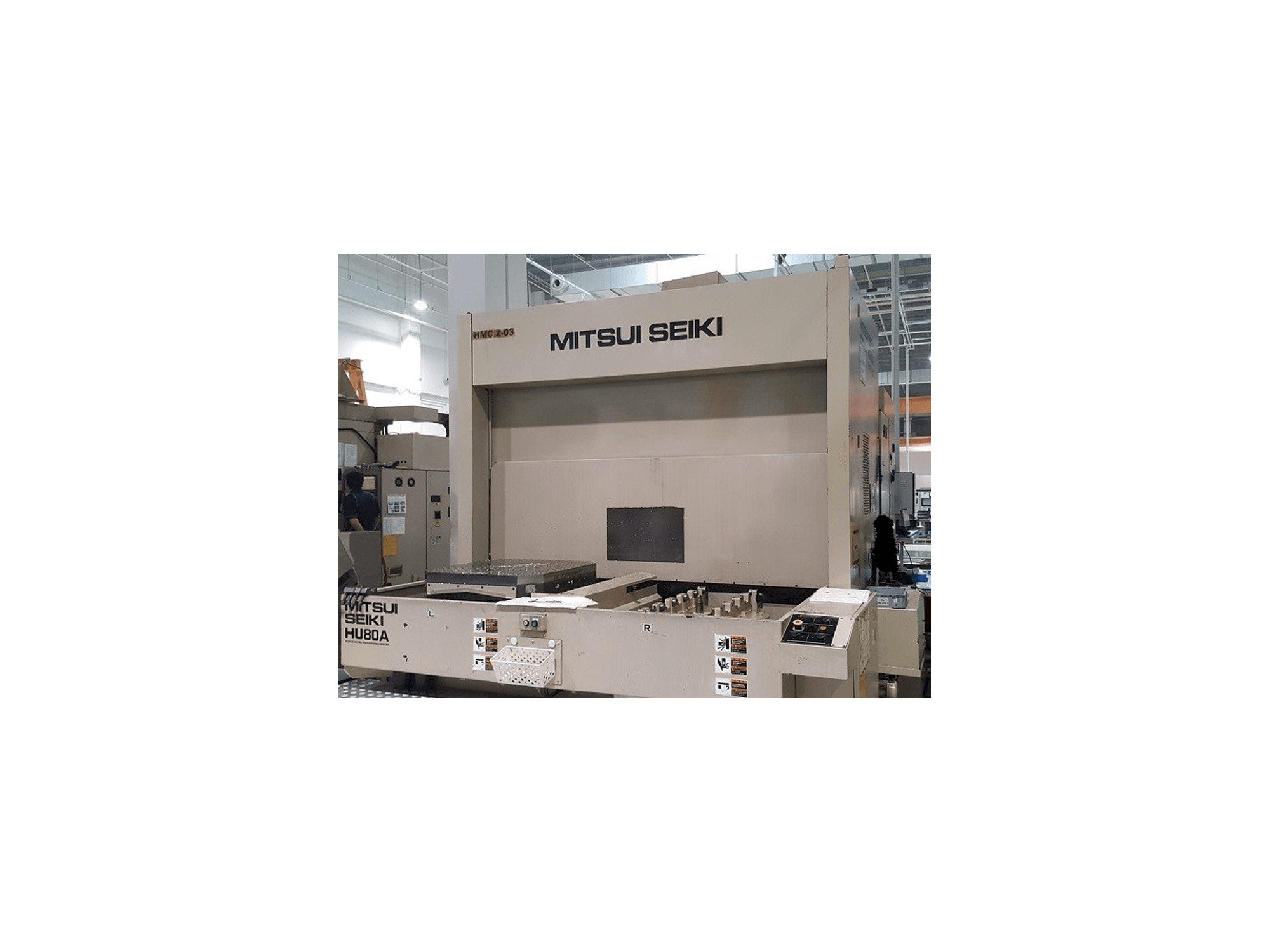

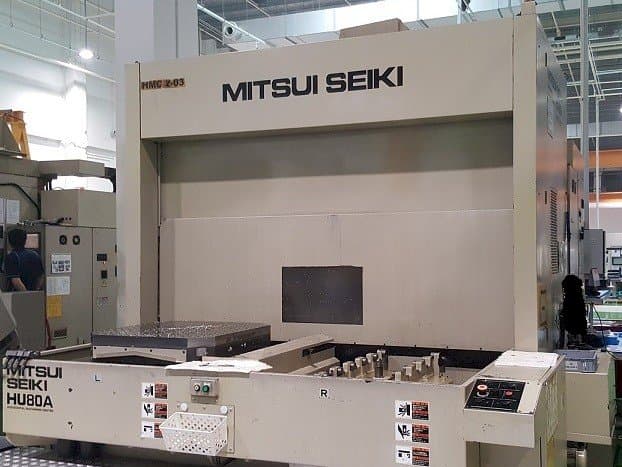

This Mitsui Seiki HU80A Horizontal Machining Center Machine was built in the year 2007. It is equipped with a Heidenhain iTNC 530 HSCI – 3D control unit. This machine can perform with a spindle speed range up to 28000 rpm. The machine counts with a Direct absolute measuring system with air purage, a Tropical Climate Package, a Laminated safety glass and a Coolant.

Overview

brand: Mitsui Seiki
year: 2007
MODEL: HU80A
application type: Milling
Location: Singapore
machine type: Horizontal Machining Centre
availability: Sold

Technical Information - Mitsui Seiki HU80A

Main drive

Spindle speed range: 20-6000 1/MIN
Spindle motor power: AC 18.5KW/15KW
Number of axis: 4

Table

Outer length: 800 mm
Outer width: 800 mm
Table load: 1600 kgs

Tools

Slots in storage: 60

Additional Equipment

- X,Y &Z axis linear feedback scale
- Coolant system: 600 liters
- Built in coil type + floor scraper type chip conveyor: Oil skimmer
- Mist cooling system
- 3 Mpa through spindle coolant
- Mist collector
- 640 memory
- Custom Macro B

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Table longitudinal stroke (x): 1200 mm
- - Spindle head vertical stroke (y): 950 mm
- - Table cross stroke (z): 900 mm
- - Distance from table surface to spindle axis: 150-1100 mm
- - Distance from spindle nose to table centre: 150-1050 mm
- - B axis table index: 0. 001 deg. (36,000 position)
- - B axis: 0. 001 deg. (36,000 position)
- - Surface on pallet: m16 tapped hole, 24 places
- - Spindle taper: iso 7/24 (50t) bt50
- - Spindle diameter: 100 mm
Qualitative Machine Benefits:
- - Spindle torque: max 600nm / 30 min rating
- - Rapid traverse: 24000 mm/min
- - Cutting feed: 0. 1 – 10,000 mm/min
- - Number of pallet: 2 (800 x 800 mm)

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
