- ➤ Used MicroStep PLS7501.20PG For sale | gindumac.com

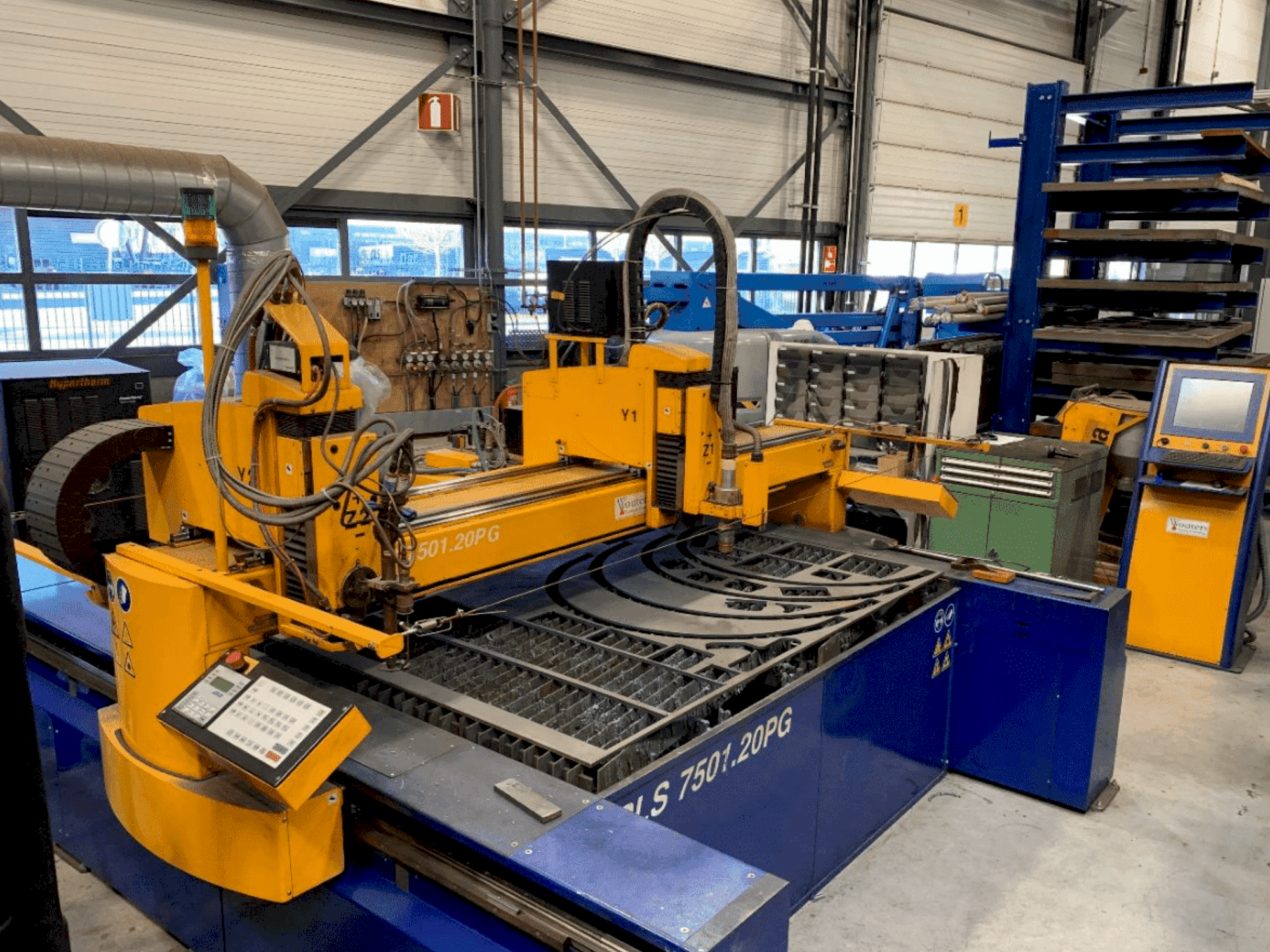

This MicroStep PLS7501.20PG was manufactured in 2011. A robust plasma cutting machine, it features a maximum plasma cutting thickness of 64mm and autogenous cutting up to 100mm. It boasts a large working surface of 1500 x 2000mm, expandable to 7500x2000mm, and can handle a maximum load of 800 kg/m². Ideal for precision work with its double-sided guidance and processor-controlled servo motors. For more information about this plasma cutting machine, please reach out to us.
Overview
- brand: MicroStep
- year: 2011
- MODEL: PLS7501.20PG
- application type: Plasma cutting
- Location: Netherlands
- machine type: Plasma Cutting Machine
- availability: Sold
Technical Information - MicroStep PLS7501.20PG
General Data
- Measurements width: 2000 mm
- Measurements depth: 1500 mm
Table
- Table load: 800 kg
Additional Information
- Technical Machine Benefits:
- - Cutting thickness autogenous: 100mm
- - Maximum height under portal: 150mm
- - Positioning speed: up to 40,000 mm/min
- - Energy connections: 3x 400v + n + pe, 50hz, 16a, compressed air 6 bar
- - Guidance and drive: double-sided play-free guidance by means of precision gear racks with bevel gearing on both shafts
- - Drive motors: processor-controlled servo motors height control: motorized, via arc voltage for plasma.
- - Measuring system: irc 2500 imp/tr
- - Includes various cutting types and advanced guidance systems
- Qualitative Machine Benefits:
- - High accuracy and repeatability standards
- - Machine still under power
Machine Benefits
Extra information
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
