MICROCUT - VMC-1600FIT-MIL-MIC-2014-00001
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- MICROCUT MC-1600F Vertical machining center

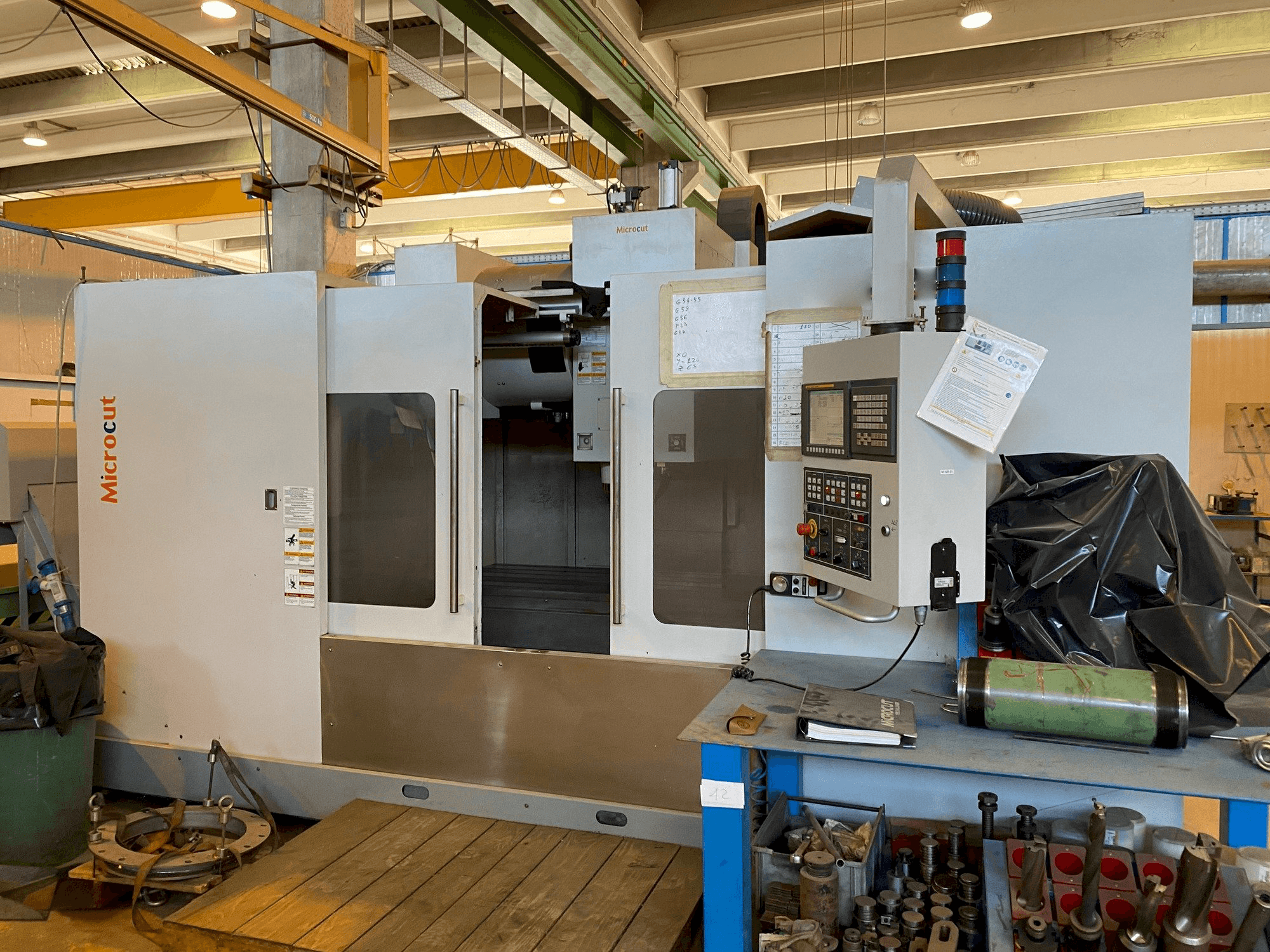

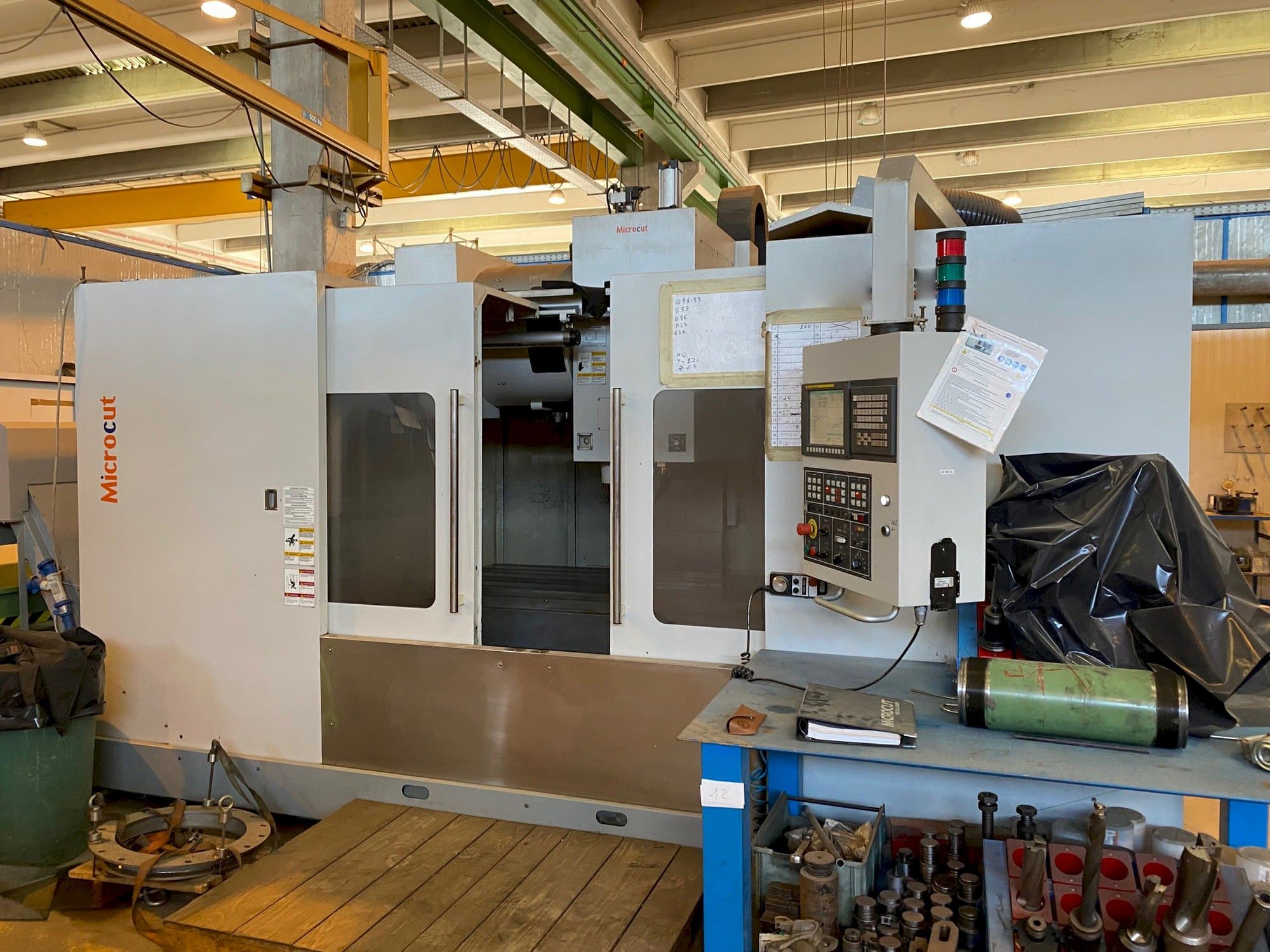

This MICROCUT MC-1600F Vertical machining center was made in Taiwan in 2014. It shows 1020 working hours. It is operated through a FANUC Series Oi-MD control unit. This 3 axis machine works with a spindle speed (opt.) up to 6000 / 10000 rpm. Includes machine manual.
Overview
- brand: MICROCUT
- year: 2014
- MODEL: VMC-1600F
- production hours: 1020
- application type: Milling
- Location: Italy
- machine type: Vertical Machining Centre
- availability: Sold
- control unit brand: FANUC
Technical Information - MICROCUT VMC-1600F
General Data
- Machine weight: 12000 KG
Control Unit
- Brand: FANUC
- Model: Series Oi-MD
Main drive
- Spindle speed range: 6000 / 10000 (opt.) 1/MIN
- Number of axis: 3
Movement
- X-AXIS Movement: 1600 mm
- X-AXIS Rapid traverse: 24 m/min
- Y-AXIS Movement: 800 mm
- Y-AXIS Rapid traverse: 24 m/min
- Z-AXIS Movement: 710 mm
- Z-AXIS Rapid traverse: 24 m/min
Table
- Outer length: 1800 mm
- Outer width: 800 mm
- Min distance between vertical spindle and table: 150 mm
- Max distance between vertical spindle and table: 860 mm
- Table load: 2000 KG
Media
- Main electronic connection: 3 X 400V / 50Hz
- Power consumption: 50 kVA
- Chip conveyor: Yes
- Internal cooling: Yes
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
