Microcut Modern BNC-2260XL Lathe

Show in original language

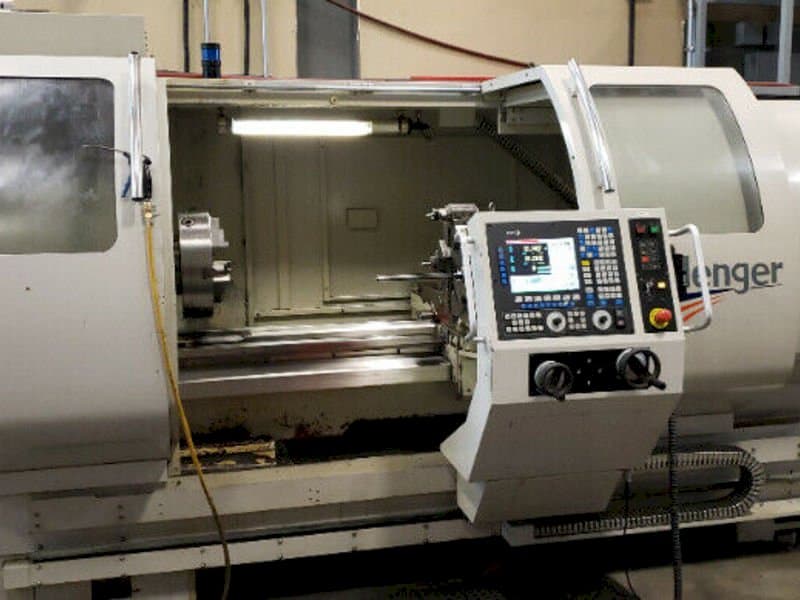

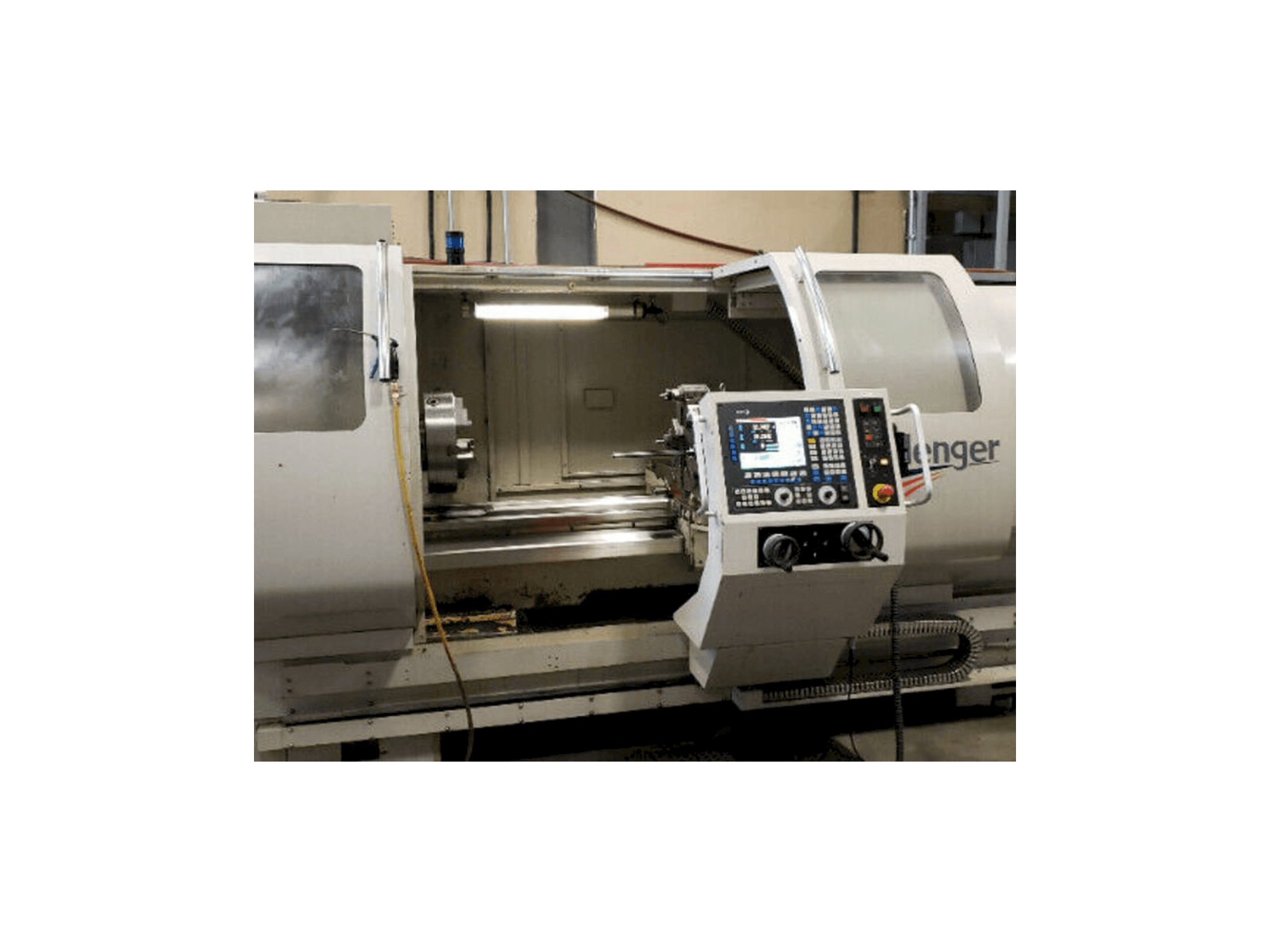

This Microcut Modern BNC-2260XL Lathe was manufactured in the year 2008. This machine operates with a spindle speed range of 80-3500 rpm.

Overview

brand: MICROCUT
year: 2008
MODEL: Modern BNC-2260XL
application type: Turning
Location: Canada
machine type: Horizontal Turning Machine
availability: Sold

Technical Information - MICROCUT Modern BNC-2260XL

General Data

Measurements width: 42672 mm
Measurements height: 1524 mm
Machine weight: 3293 kg

Main drive

Spindle speed range: 80-3500 1/MIN

Movement

X-AXIS Movement: 2032 mm
X-AXIS Rapid traverse: 6096 mm/min
X-AXIS Accuracy: 0.00508 mm
Z-AXIS Movement: 457 mm
Z-AXIS Rapid traverse: 8001 mm/min
Z-AXIS Accuracy: 0.00508 mm

Table

Distance between: 1524 mm

Tail Stock

Pinol way: 178 mm
Pinol tool taper: MT-5

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Spindle nose d1-8
- - Spindle bearing taper roller p5
- - Ac servo motor 20 hp
- - Xz feed motor 2. 5 hp
- - Coolant pump 1/8 hp
- - Width of bed: 46 mm
- - Swing over bed: 560 mm
- - Swing over cross slide: 305 mm
- - Z ball screw 50mm x 10mm c5
- - X ball screw 25mm x 5mm c5

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
