➤ Used Mazak QUICK TURN SMART 200 ML | Lathe For sale

Show in original language

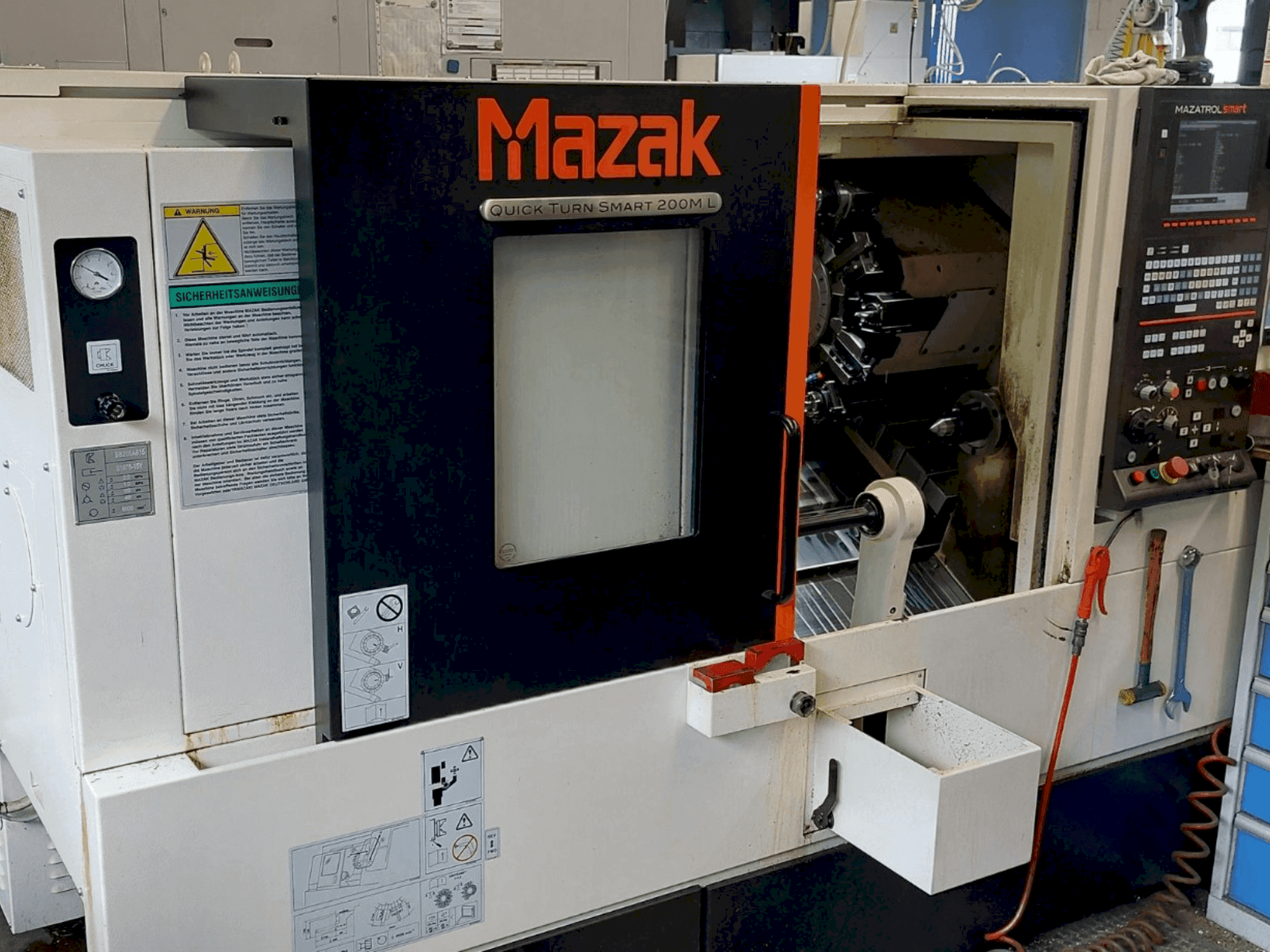

This 3-axis Mazak QUICK TURN SMART 200 ML lathe was manufactured in 2015. It features a maximum machining diameter of 360mm, a length of 535mm, and a spindle bore of 76mm. The main spindle reaches speeds up to 5,000 min-1, and the turret holds 12 tools. Equipped with MAZAK Smart control, it ensures precision and efficiency. Ideal for both chuck and shaft machining, buy this Mazak QUICK TURN SMART 200 ML lathe. Contact us for further details regarding this lathe.

Overview

brand: Mazak
year: 2015
MODEL: QUICK TURN SMART 200 ML
application type: Turning
Location: Germany
machine type: Horizontal Turning Machine
availability: Sold
control unit brand: MAZATROL

Technical Information - Mazak QUICK TURN SMART 200 ML

General Data

Measurements width: 1680 mm
Measurements depth: 2630 mm
Measurements height: 1700 mm
Machine weight: 4900 kg

Control Unit

Model: Smart control
Brand: MAZATROL

Main drive

Number of spindles: 1
Spindle speed range: 5000 rpm 1/MIN
Spindle bore: 76 mm
Pressing force: 5000 Nm KN
Number of axis: 3

Movement

X-AXIS Movement: 225 mm
X-AXIS Feed Force: 30 m/min
Z-AXIS Movement: 605 mm
Z-AXIS Feed Force: 36 m/min

Tools

Number of stations: 12

Media

Chip conveyor: Yes

Additional Equipment

- The turret will be fully equipped with tool holders, 3 of which are driven.
- High pressure system: combiloop CL 1N / dimensions: 506 x 516 x 655 mm / weight 30 kg

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Tank capacity: 180 l
- - Spindle motor torque: 358 nm
- - Max feed (x-axis): 65 msec // max feed (z-axis): 80 msec
- - Standard machining diameter: 235 mm
- - Max machining diameter: 360 mm // max machining length: 535 mm // max bar diameter (main spindle): 65 mm // max workpiece weight for chuck machining: 300 kg // max workpiece weight for shaft machining: 500 kg
- - Holder cross-section (turning tool): 25 mm
- - Max milling spindle speed: 4500 min-1 // max milling spindle torque: 47 nm
- - Mounting: mk5
- - Travel range (tailstock body): 565 mm
- - Efficient feed speeds for increased productivity.
Qualitative Machine Benefits:
- - Precision control with mazak smart control.
- - Robust tailstock for stable and precise operations.

Extra information

- Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
