Mazak - Multiplex 6200-IICZ-TUR-MAZ-2015-00003
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- Mazak Multiplex 6200-II Lathe

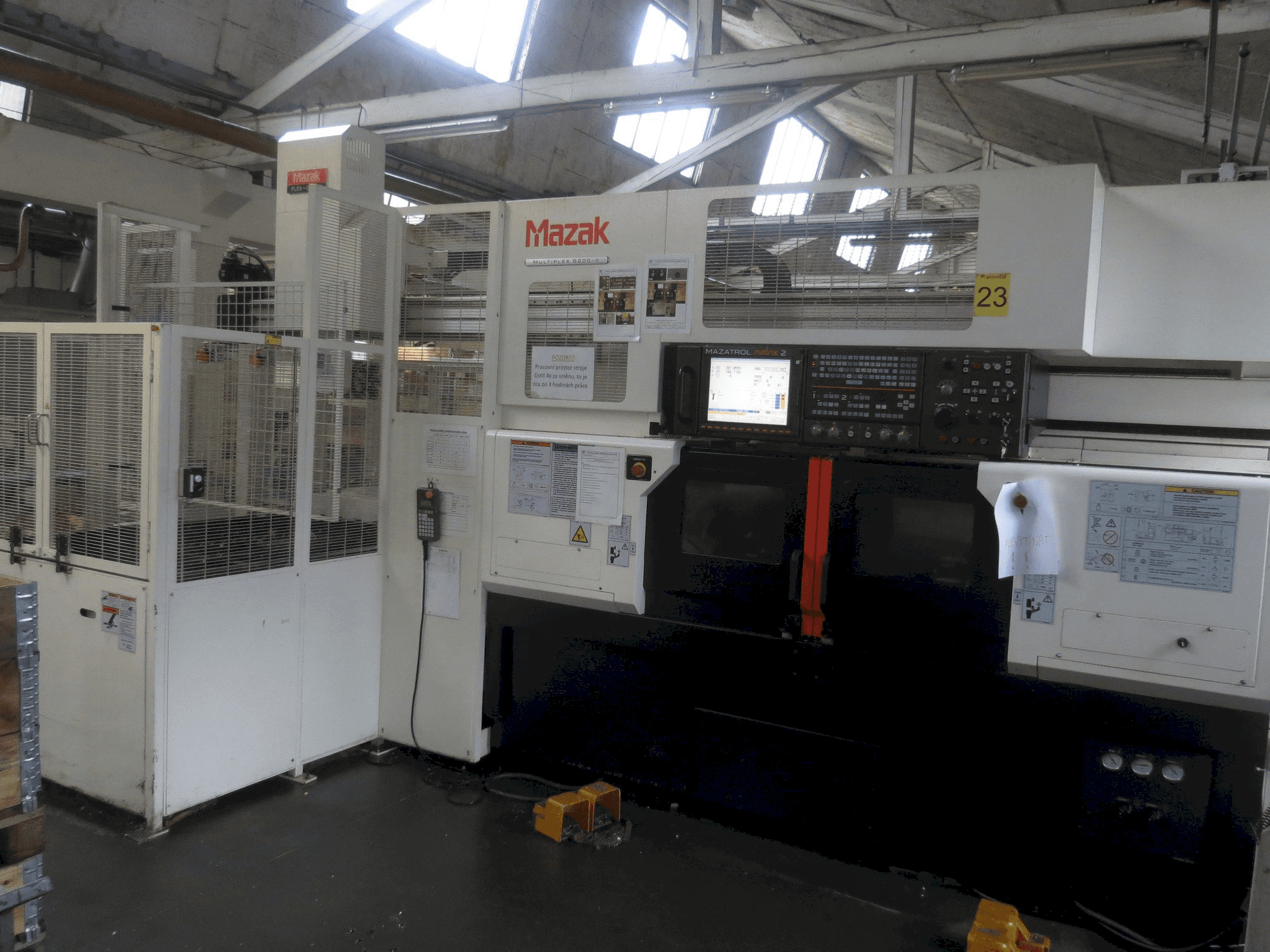

This Mazak Multiplex 6200-II Lathe was manufactured in the year 2015 in Japan. It is equipped with a Mazak Matrix 2 control unit. The machine has a spindle speed of 5000 rpm.
Overview
- brand: Mazak
- year: 2015
- MODEL: Multiplex 6200-II
- application type: Turning
- Location: Czech Republic
- machine type: Turn-Mill Centre
- availability: Immediately
- control unit brand: MAZATROL
Technical Information - Mazak Multiplex 6200-II
General Data
- Measurements width: 3570 mm
- Measurements depth: 1795 mm
- Measurements height: 2090 mm
Control Unit
- Model: Matrix 2
- Brand: MAZATROL
Main drive
- Number of spindles: 2
- Spindle speed range: 5000 1/MIN
- Spindle motor power: 22.5 kW
Movement
- X-AXIS Movement: 230 mm
- Z-AXIS Movement: 440 mm
Turret
- Number of turrets: 2
Media
- Chip conveyor: Yes
Additional Equipment
- - 12-position VDI tool head with all positions or live tools (speed 4500 rpm)
- - Tool eye (probe) automatic for both turrets
- - Direct measuring (X-axis) for left and right side
- - ROBOTIC LOADING SYSTEM
- - Chip conveyor rear output (link/for steel.material.)
- - Mist separator
- - Chuck blowing
- - Blowing during workpiece transfer
Additional Information
- Technical Machine Benefits:
- - Maximum swing: 320 mm
- - Maximum machining length chuck work: 180 mm
- - Maximum machining length shaft work: 530 mm
- - Maximum bar size diameter: 51 mm
- - Rapid traverse x1/x2: 30,500 mm/min
- - Main spindle c-axis (0. 0001°)
- Qualitative Machine Benefits:
- - Very good condition
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
Borja Garcia
Payment Terms
Payment in advance
Asset Financing
