Mazak - multiplex 200 ySI-TUR-MAZ-2019-00001

Name: Mazak multiplex 200 y
Brand: Mazak
SKU: SI-TUR-MAZ-2019-00001
Price: 278150 GBP
Availability: InStock

£ 278,150

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used Mazak multiplex 200 y For Sale | gindumac.com

Show in original language

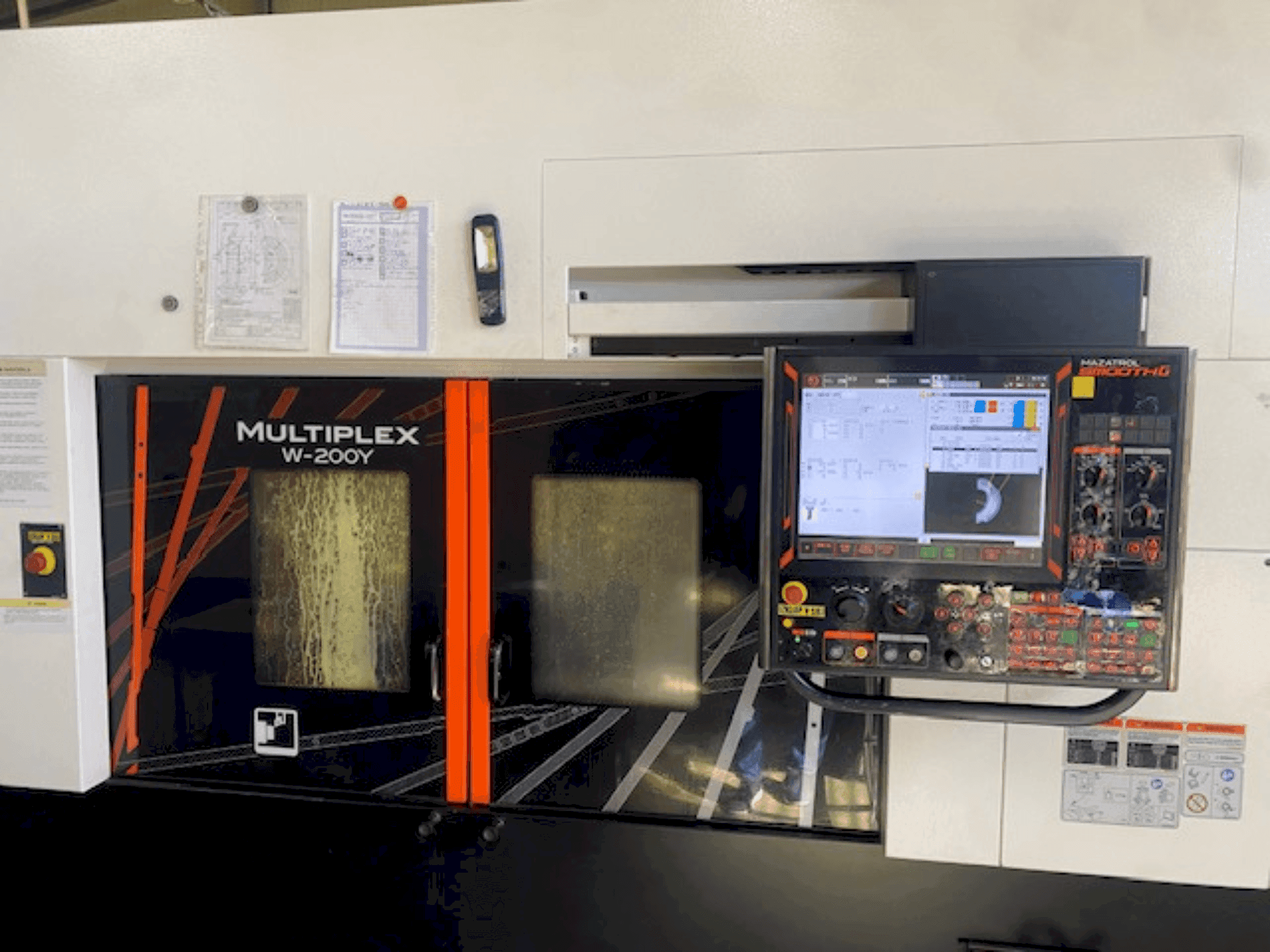

This 6-axis Mazak multiplex 200 y multi-spindle turning machine was manufactured in 2019. It features dual turrets with 12 tool positions each and a maximum spindle speed of 5,000 rpm. The machine supports a maximum turning diameter of 320 mm and a machining length of 300 kg. Rapid traverse rates are impressive at 35 m/min for X1/X2 and 42 m/min for Z1/Z2. A great opportunity to buy this Mazak multiplex 200 y multi-spindle turning machine. Contact us for further details.

Overview

brand: Mazak
year: 2019
MODEL: multiplex 200 y
application type: Turning
Location: Slovenia
machine type: Multi-Spindle Turning Machine
availability: Immediately

Technical Information - Mazak multiplex 200 y

Main drive

Spindle speed range: 5000 rpm 1/MIN
Spindle motor power: 22.0 kW
Spindle bore: Depends on the type of clamping head used
Number of axis: 6

Movement

X-AXIS Movement: 275 mm
Y-AXIS Movement: 100 mm
Z-AXIS Movement: 490 mm

Turret

Number of turrets: 2

Tools

Number of index: 12

Media

Air pressure: 5.0 bar

Additional Equipment

- Gantry loader
- For use with Kitagawa 88208 clamping head
- Coolant tank capacity: 265 L
- Power requirement (rated connected power): 76.8 kVA

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Clamping head size: 320 mm
- - Maximum turning diameter: 320 mm // maximum machining diameter: 180 mm // maximum machining length of unsupported workpiece: 300 kg // maximum weight support for unsupported workpiece: 65 mm
- - Spindle nose: a2-4
- - Bore diameter through spindle: 76 mm
- - Maximum torque: 467 nm // maximum torque of driven tools: 47. 0 nm
- - Tool sizes: external turning diameter od: 25 mm, internal turning diameter d: 40 mm, milling arbor: 20 mm, threading tap: m12, face milling cutter: 20 mm
- - Positioning time per step: 0. 20 seconds // positioning time per full rotation: 0. 60 seconds
- - Maximum milling spindle speed: 5,000 rpm
- - Power of driven tools (10-minute rated power): 5. 5 kw
- - Rapid traverse x1/x2: 35 m/min // rapid traverse z1/z2: 42 m/min // rapid traverse y1/y2: 15 m/min

Extra information

- Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
