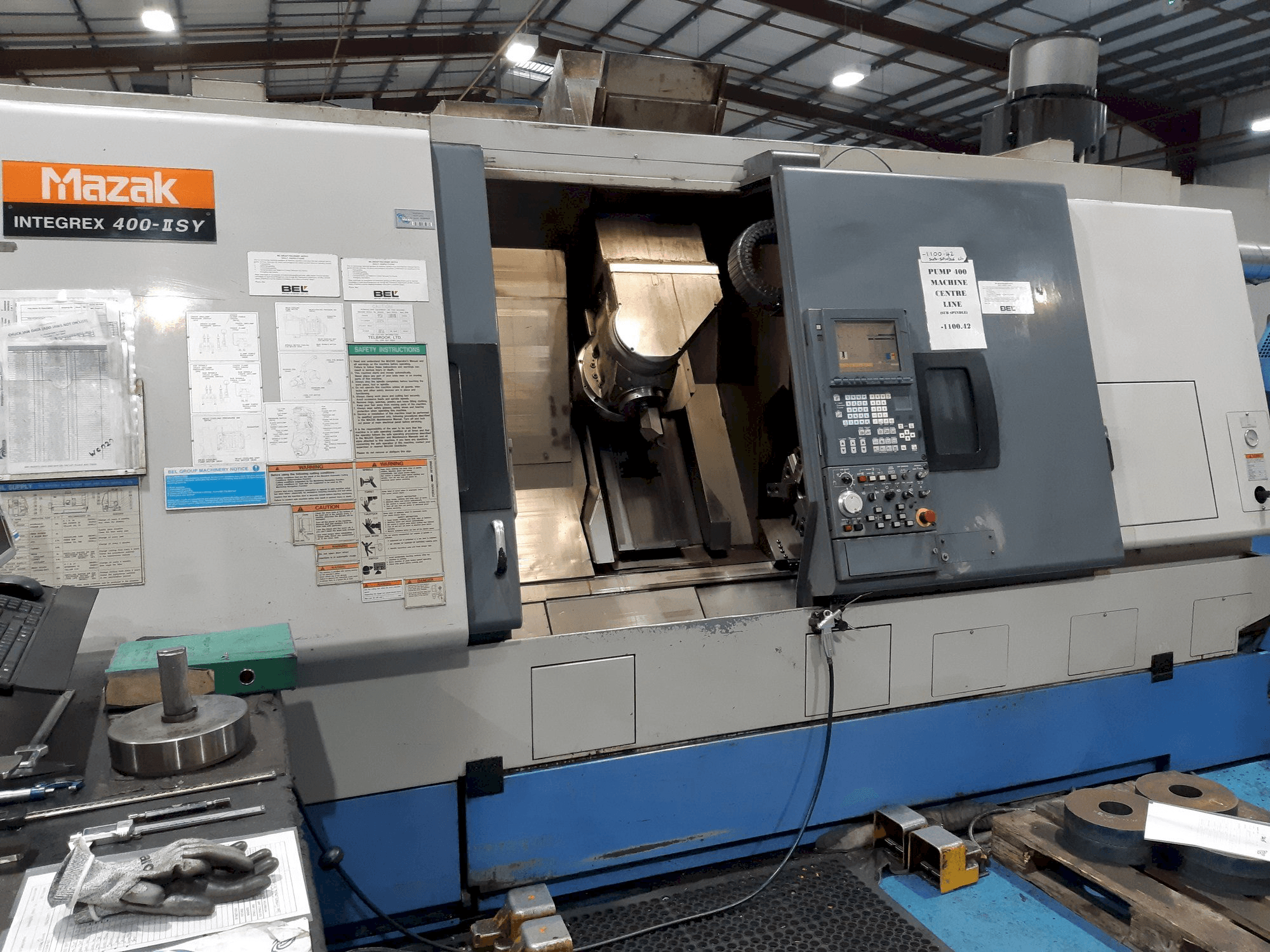

This Mazak Integrex 400 II SY lathe machine was built in 2003 in Japan. It has been on for 9652 hours, of which 7774 are cutting time. This 5 axis machine is operated through a Mazak Mazatrol Fusion 640 MT Pro control unit. It has a spindle speed up to 3000 rpm and a milling spindle speeds 10.000 rpm. It is in very good conditions.
Overview
- brand: Mazak
- year: 2003
- MODEL: Integrex 400 II SY
- production hours: 9652
- application type: Turning
- Location: United Kingdom
- machine type: Turn-Mill Centre
- availability: Sold
- control unit brand: MAZATROL
Technical Information - Mazak Integrex 400 II SY
Control Unit
- Model: Mazatrol Fusion 640 MT Pro
- CNC language customizable: Yes
- Brand: MAZATROL
Main drive
- Number of spindles: 2
- Spindle speed range: 3000 1/MIN
- Spindle motor power: 30 kW
- Number of axis: 5
Movement
- X-AXIS Movement: 580 mm
- Y-AXIS Movement: 230 mm
- Z-AXIS Movement: 1137 mm
Tools
- Slots in storage: 40
Media
- Chip conveyor: Yes
- Internal cooling: Yes
Additional Information
- Technical Machine Benefits:
- - Max turning ø 610 mm
- - Through spindle coolant 70 bar
- - Subspindle speeds 3500 rpm, motor 15 kw
- - C-axis 0. 001° (both spindles)
- - Spindle bore diameter ø 88 mm
- - Milling spindle synchronous tapping, work measuring system renishaw mp10, eia/iso option package
- - Milling spindle speeds 10. 000 rpm, motor 15 kw
- - 6 jaw 15" chuck, 6 jaw 12" chuck
- - Max turning ø over slide 390 mm
- Qualitative Machine Benefits:
- - Very good condition of the machine
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
Borja Garcia
Payment Terms
Payment in advance
