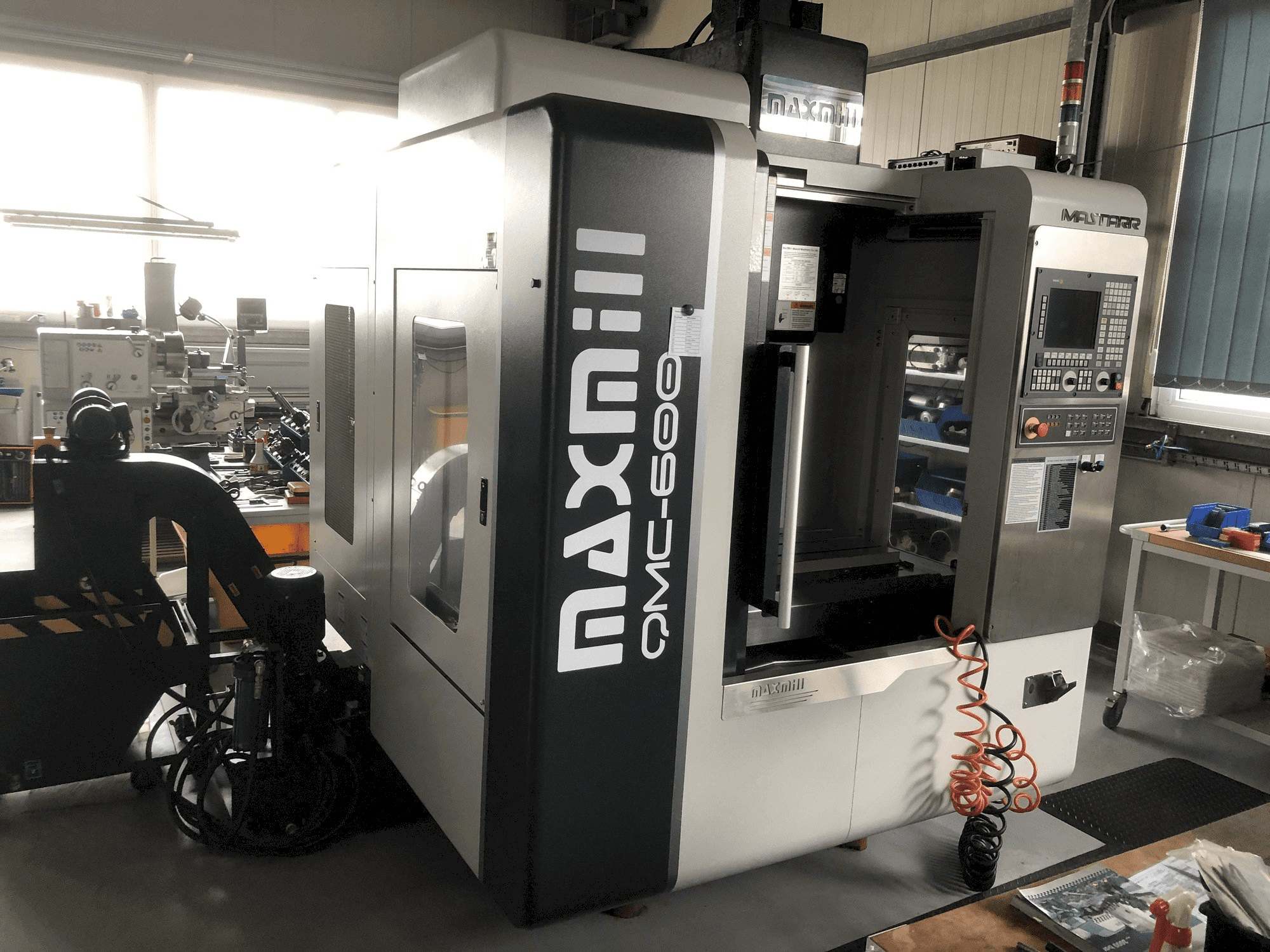

MAXMILL QMC-600 Vertical Machining Center

Show in original language

This MAXMILL QMC-600 Vertical Machining Center was built in Taiwan in the year 2017. It is operated through a FAGOR 8055 control unit with 10.4'' LCD screen and transportable handwheel. This machine stands out for its spindle speed up to 12000 rpm and its table dimension of 710 x 410 mm. It comes with its electronic documentation in german.

Overview

brand: MAXMILL
year: 2017
MODEL: QMC-600
application type: Milling
Location: Germany
machine type: Vertical Machining Centre
availability: Sold
control unit brand: FAGOR

Technical Information - MAXMILL QMC-600

General Data

Measurements width: 2255 mm
Measurements depth: 1900 mm
Measurements height: 2610 mm
Machine weight: 4000 kg

Control Unit

Model: 8055
Brand: FAGOR

Main drive

Spindle speed range: 12000 1/MIN
Spindle motor power: 7.5/10 kW
Tool taper: ISO 40 (DIN 69871)
Number of axis: 3

Movement

X-AXIS Movement: 610 mm
Y-AXIS Movement: 410 mm
Z-AXIS Movement: 530 mm

Table

Outer length: 710 MM
Outer width: 410 mm

Tools

Number of stations: 20
Type of tool holder: 40 ISO

Media

Main electronic connection: 400 V
Power consumption: 15 KVA
Oil water separator: Yes
Chip conveyor: Yes

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Tool changer -type double arm
- - Linear guides in all 3 axes
- - Spindle oil cooler; spindle cooling;coolant gun
- - Automatic grease lubrication; self-cleaning cooling lubrication system
- - 20 bar spindle internal cooling
- - Hinged chip conveyor (ejection left)
- - Preparation for tool and workpiece measuring system
- - Air-conditioned control cabinet
- - Spindle orientation; full enclosure; machine according to ce
- - 3-colour cycle lamp; rigid thread cutting
Qualitative Machine Benefits:
- - Machine documentation / german - electronic

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
