Matsuura MAM 600HG PC-12 4 Axis Machining Center

Show in original language

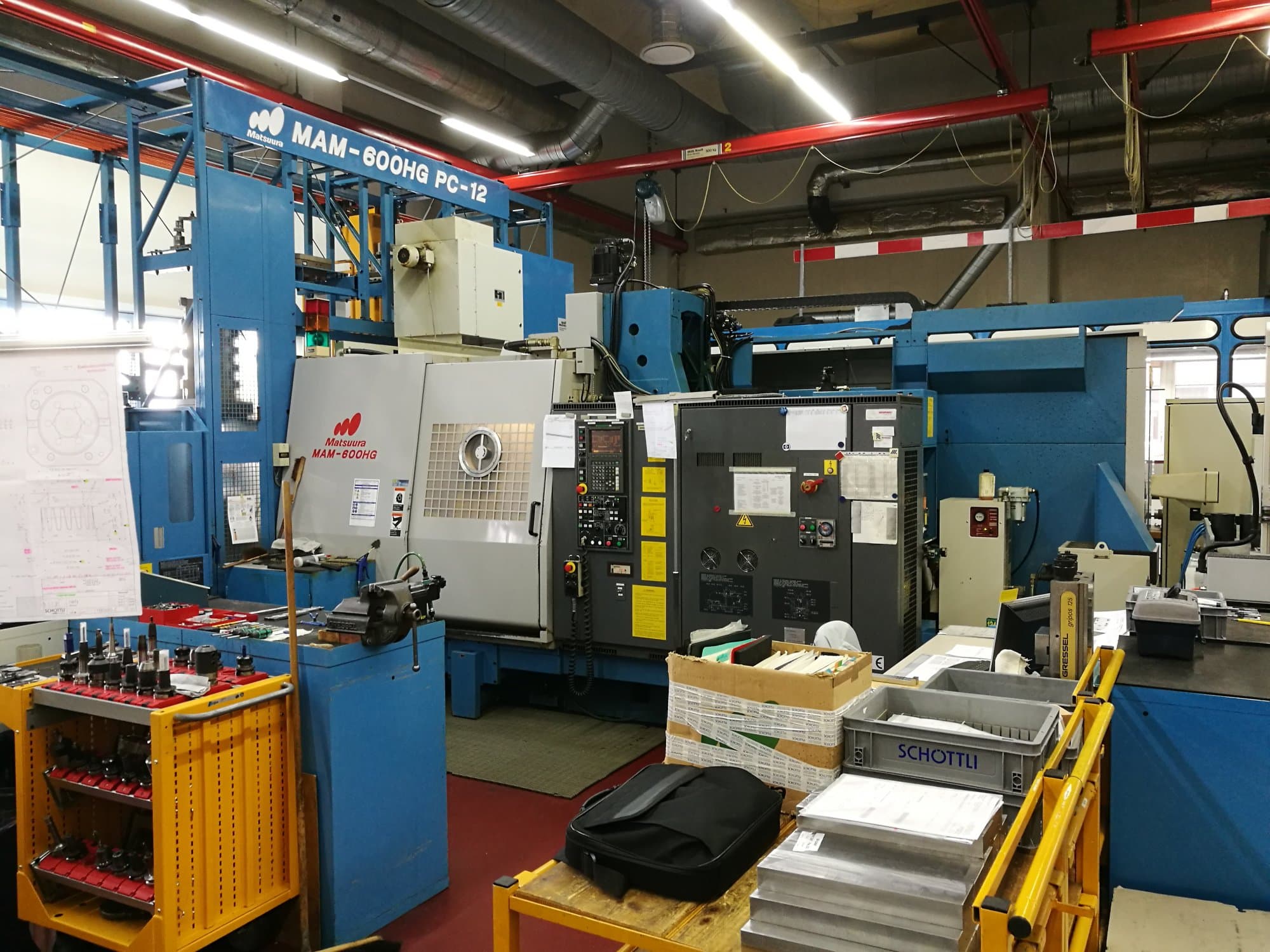

This Matsuura MAM 600HG PC-12 4-Axis Machining Centre from 1998 has a production record of 24446 hours. Operated through a YASANG control unit, the equipment stands out for its good condition and includes as additional equipment a palette changer, a 5th Axis as well as a firefighting system.

Overview

brand: Matsuura
year: 1998
MODEL: MAM 600HG PC-12
production hours: 24446
application type: Milling
Location: Switzerland
machine type: Horizontal Machining Centre
availability: Sold

Technical Information - Matsuura MAM 600HG PC-12

General Data

Measurements width: 6030 mm
Measurements depth: 4600 mm
Measurements height: 3105 mm
Machine weight: 11000 kg

Control Unit

Remote control: Yes

Movement

X-AXIS Movement: 600 mm
X-AXIS Working Feed: 1-10000 mm/min
X-AXIS Feed Force: 5.2 kN
X-AXIS Rapid traverse: 24000 mm/min
X-AXIS Accuracy: 0.001
Y-AXIS Movement: 600 mm
Y-AXIS Working Feed: 1-10000 mm/min
Y-AXIS Feed Force: 6.4 kN
Y-AXIS Rapid traverse: 24000 mm/min
Y-AXIS Accuracy: 0.001
Z-AXIS Movement: 625 mm
Z-AXIS Working Feed: 1-10000 mm/min
Z-AXIS Feed Force: 13 kN
Z-AXIS Rapid traverse: 24000 mm/min
Z-AXIS Accuracy: 0.001
A-AXIS Movement: 360° MM
B-AXIS Movement: 360° MM

Workpiece

Workpiece weight: 400 kg

Table

Outer length: 400 mm
Outer width: 400 mm

Tools

Slots in storage: 60
Max weight: 10 kg
Max tool diameter: 80/150 mm
Max tool length: 350 mm

Media

Main electronic connection: 380 V / 50 Hz
Power consumption: 70 kVA
Air pressure: 6 bar
Lubrication tank: 700 L
Oil tank: 15 L
Chip conveyor: Yes
Internal cooling: Yes

Additional Equipment

- Multipallet changer
- 5th Axis
- Firefighting system

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
