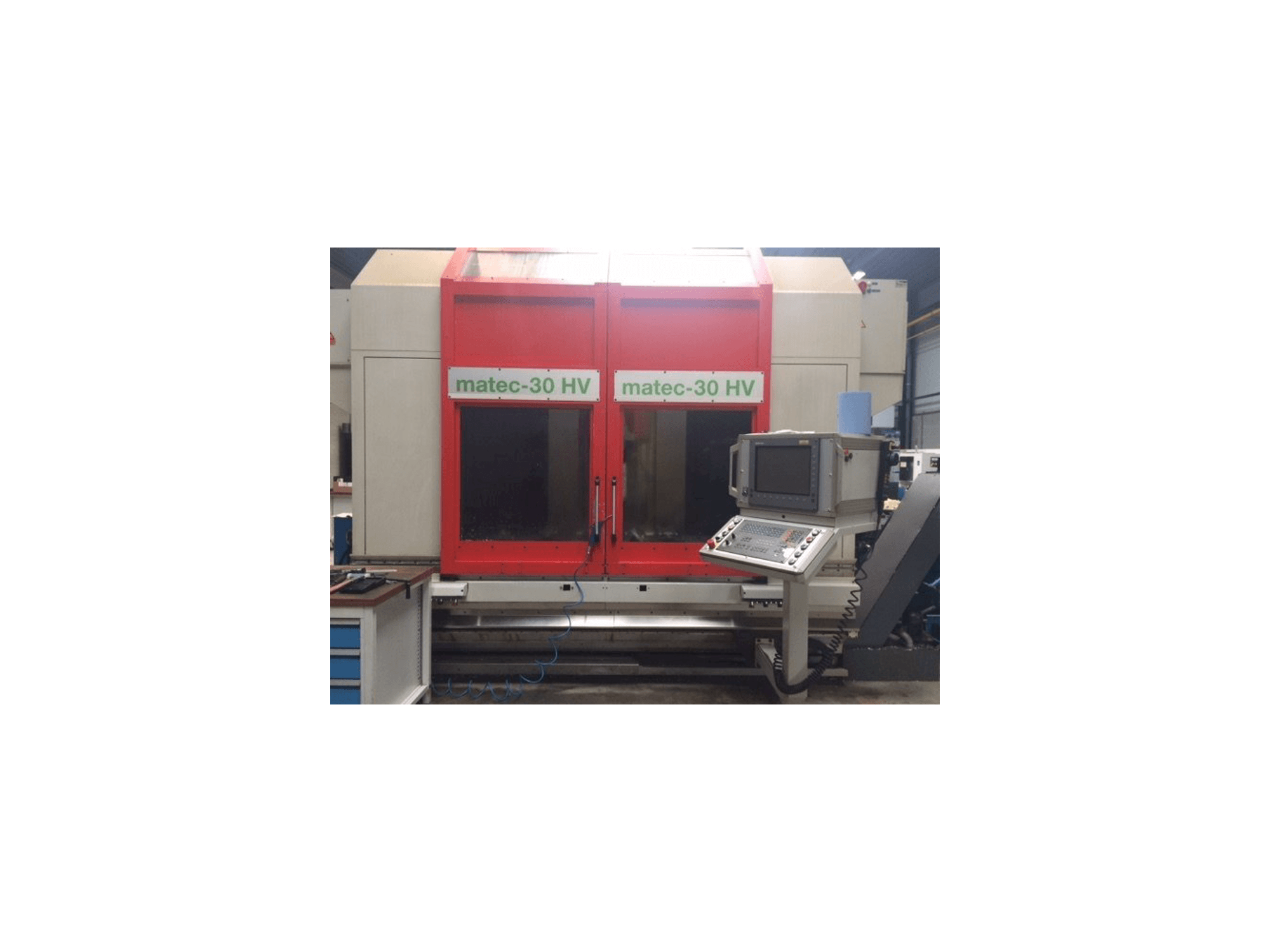

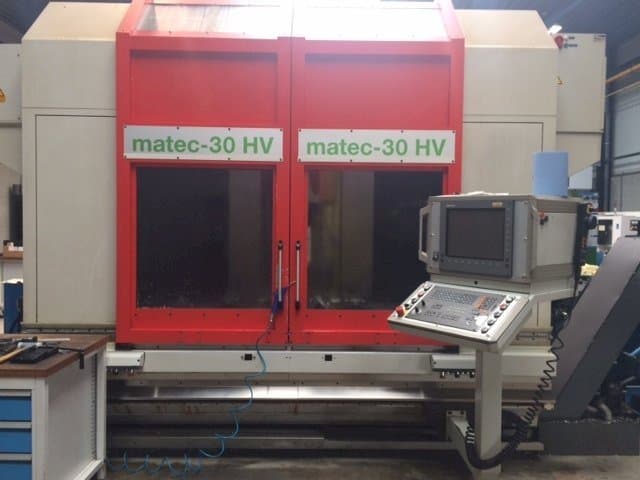

Matec 30HV Vertical Machining center

Show in original language

This Matec 30HV Vertical Machining center was manufactured in the year 2001 in Germany. It is equipped with a Heidenhain TNC 430 control unit and has 4 axis. The machine has a spindle speed of 15000 rpm.

Overview

brand: Matec
year: 2001
MODEL: 30 HV
application type: Milling
Location: Belgium
machine type: Vertical Machining Centre
availability: Sold
control unit brand: HEIDENHAIN

Technical Information - Matec 30 HV

General Data

Measurements width: 5800 mm
Measurements depth: 3650 mm
Measurements height: 3200 mm
Machine weight: 11500 kg

Control Unit

Model: TNC 430
Brand: HEIDENHAIN

Main drive

Spindle speed range: 15000 1/MIN
Tool taper: DIN 69871
Number of axis: 4

Movement

X-AXIS Movement: 2000 mm
Y-AXIS Movement: 600 mm
Z-AXIS Movement: 800 mm

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Internal cooling with paper belt filter
- - Twist head +/- 90
- - Mist extraction

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
