Matchmaker VMC-820 Vertical Machining Center

Show in original language

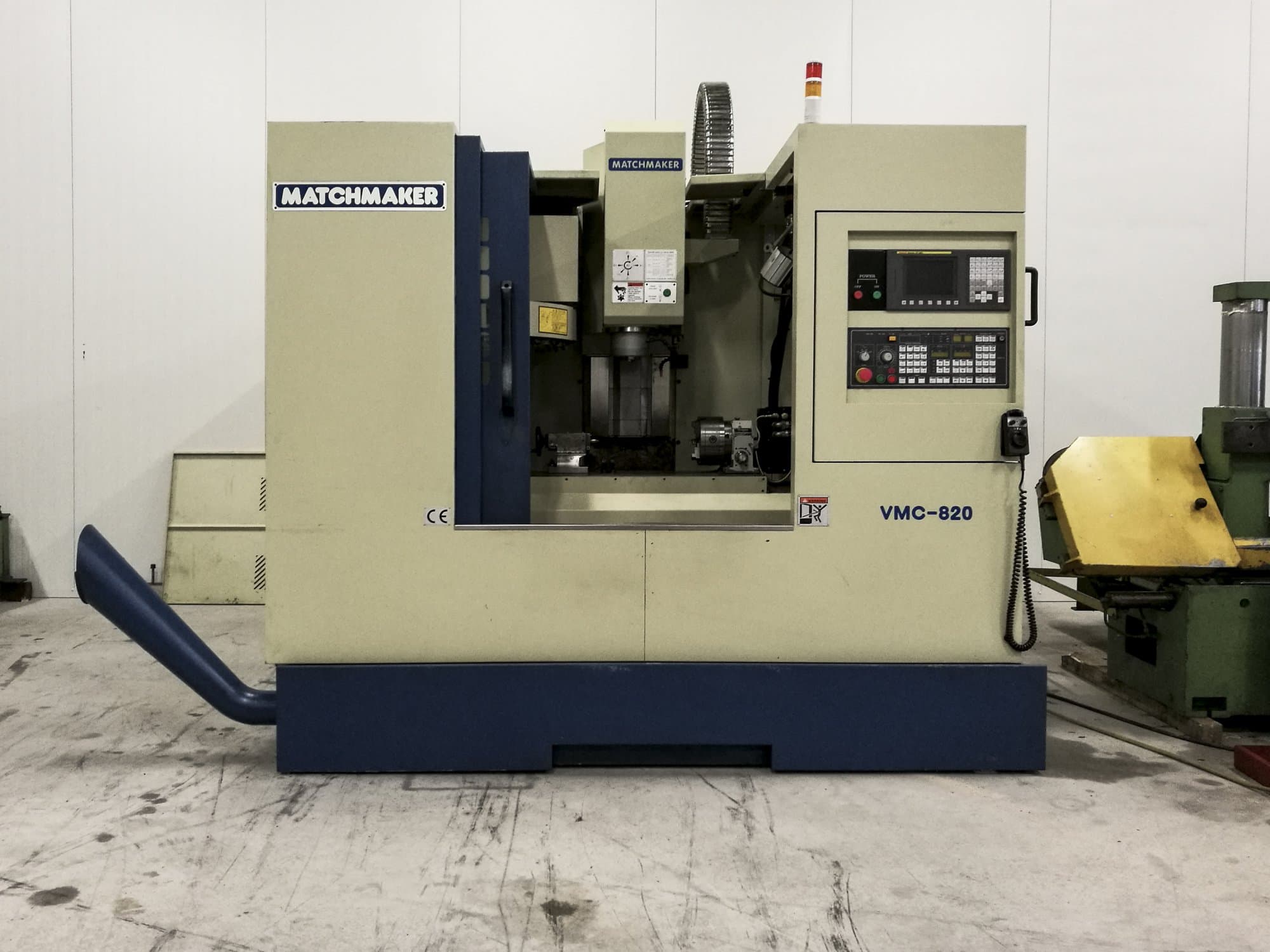

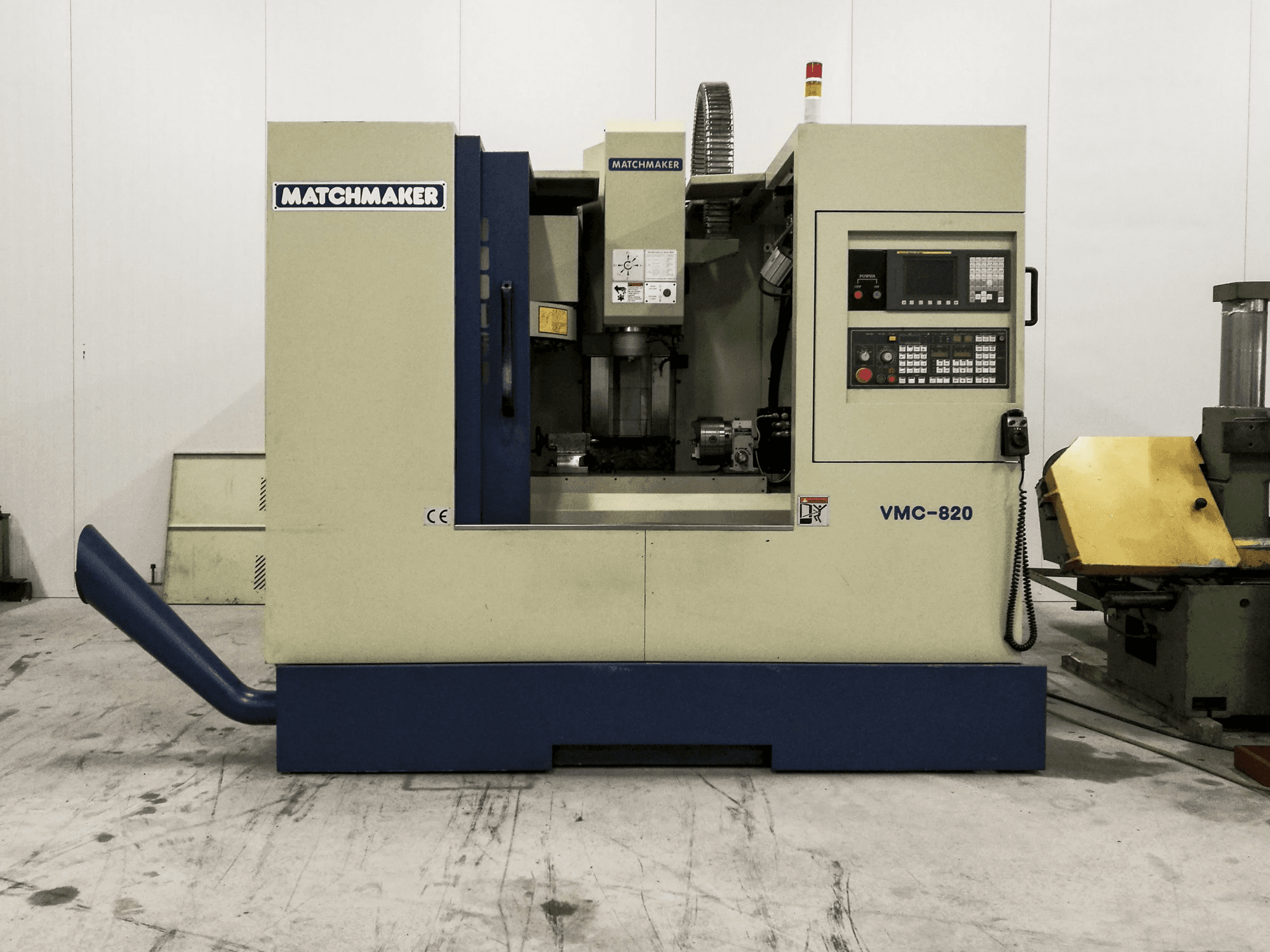

This Matchmaker VMC-820 Vertical Machining Center was manufactured in 2006 in the United Kingdom and has a working record of approximately 3800 production hours since then. This machine is equipped with a FANUC Oi-MC Control Unit and comes with a fourth axis as additional equipment.

Overview

brand: Matchmaker
year: 2006
MODEL: VMC-820
production hours: 3800
application type: Milling
Location: Netherlands
machine type: Vertical Machining Centre
availability: Sold
control unit brand: FANUC

Technical Information - Matchmaker VMC-820

General Data

Measurements width: 2410 mm
Measurements depth: 2020 mm
Measurements height: 2100 mm
Machine weight: 3500 kg

Control Unit

Brand: FANUC
Model: Oi-MC

Main drive

Number of spindles: 1
Spindle speed range: 8000 1/min

Movement

X-AXIS Movement: 820 mm
Y-AXIS Movement: 520 mm
Z-AXIS Movement: 510 mm

Table

Outer length: 950 mm
Outer width: 450 mm

Tools

Max weight: 6 kg
Max tool diameter: 100 mm
Max tool length: 250 mm

Media

Main electronic connection: 380 V / 50 Hz
Power consumption: 20 kVA
Chip conveyor: Yes

Additional Equipment

- Fourth Axis

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
