Makino - A99-A132IT-MIL-MAK-2000-00001

Name: Makino A99-A132
Brand: Makino
SKU: IT-MIL-MAK-2000-00001
Price: 82650 GBP
Availability: InStock

£ 82,650

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used Makino A99-A132 For sale | gindumac.com

Show in original language

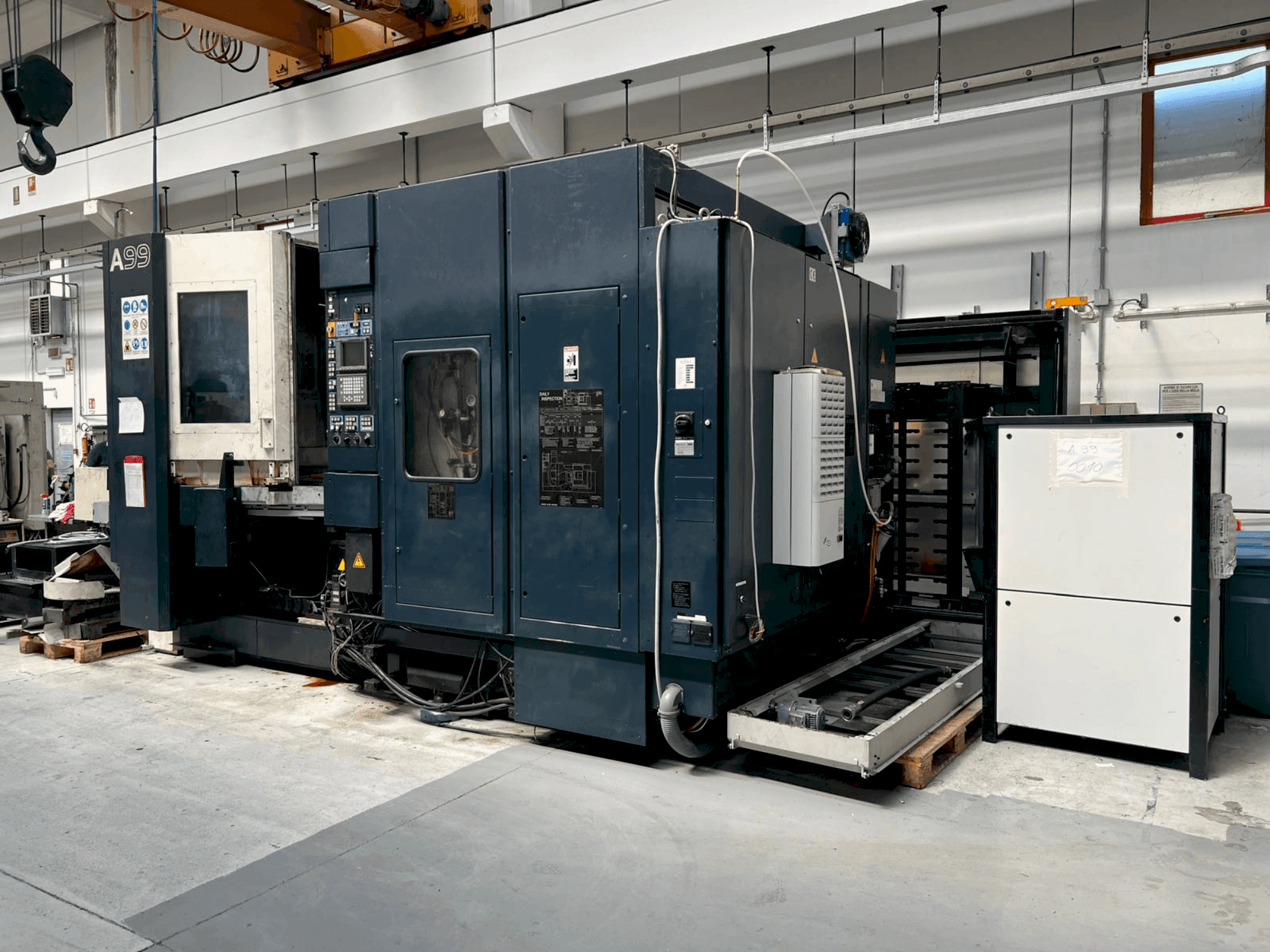

This 4-axis Makino A99-A132 horizontal machining centre was manufactured in 2000. It features a robust HSK 100 spindle, capable of 12,000 rpm and a maximum torque of 380 N/m. The machine offers extensive travels with 1000 mm on both X and Y axes, and 950 mm on the Z-axis. It supports a hefty 1800 kg on its 800x800 mm table. Ideal for complex, heavy-duty machining, the Makino A99-A132 machine we have for sale. Contact us for further details.

Overview

brand: Makino
year: 2000
MODEL: A99-A132
application type: Milling
Location: Italy
machine type: Horizontal Machining Centre
availability: Immediately
control unit brand: FANUC

Technical Information - Makino A99-A132

General Data

Measurements width: 6000 mm
Measurements depth: 4500 mm
Machine weight: 23000 kg

Control Unit

Model: 16 im pro
Brand: FANUC

Main drive

Number of spindles: 1
Spindle speed range: 12000 Rpm 1/MIN
Spindle motor power: 30 Kw
Tool taper: HSK 100
Number of axis: 4

Movement

X-AXIS Movement: 1000 mm
Y-AXIS Movement: 1000 mm
Z-AXIS Movement: 950 mm

Table

Outer length: 800 mm
Outer width: 800 mm
Table load: 1800 kg

Tools

Number of index: 245 positions

Media

Internal cooling: Yes

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Rapid feed rate: 50,000 mm/min for x, y, and z axis
- - High maximum torque: 380 n/m
- - High tool magazine capacity: 245 positions
- - Positioning accuracy: +/- 0. 004 mm
- - Repeatability: +/- 0. 003 mm
Qualitative Machine Benefits:
- - Total machine enclosure ensuring safety and cleanliness
- - Tool breakage and measurement detection system enhancing precision and reducing downtime

Extra information

- Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
