Makino - A61nxDE-MIL-MAK-2015-00001

Name: Makino A61nx
Brand: Makino
SKU: DE-MIL-MAK-2015-00001
Price: 170050 GBP
Availability: InStock

£ 170,050

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used Makino A61nx For Sale | gindumac.com

Show in original language

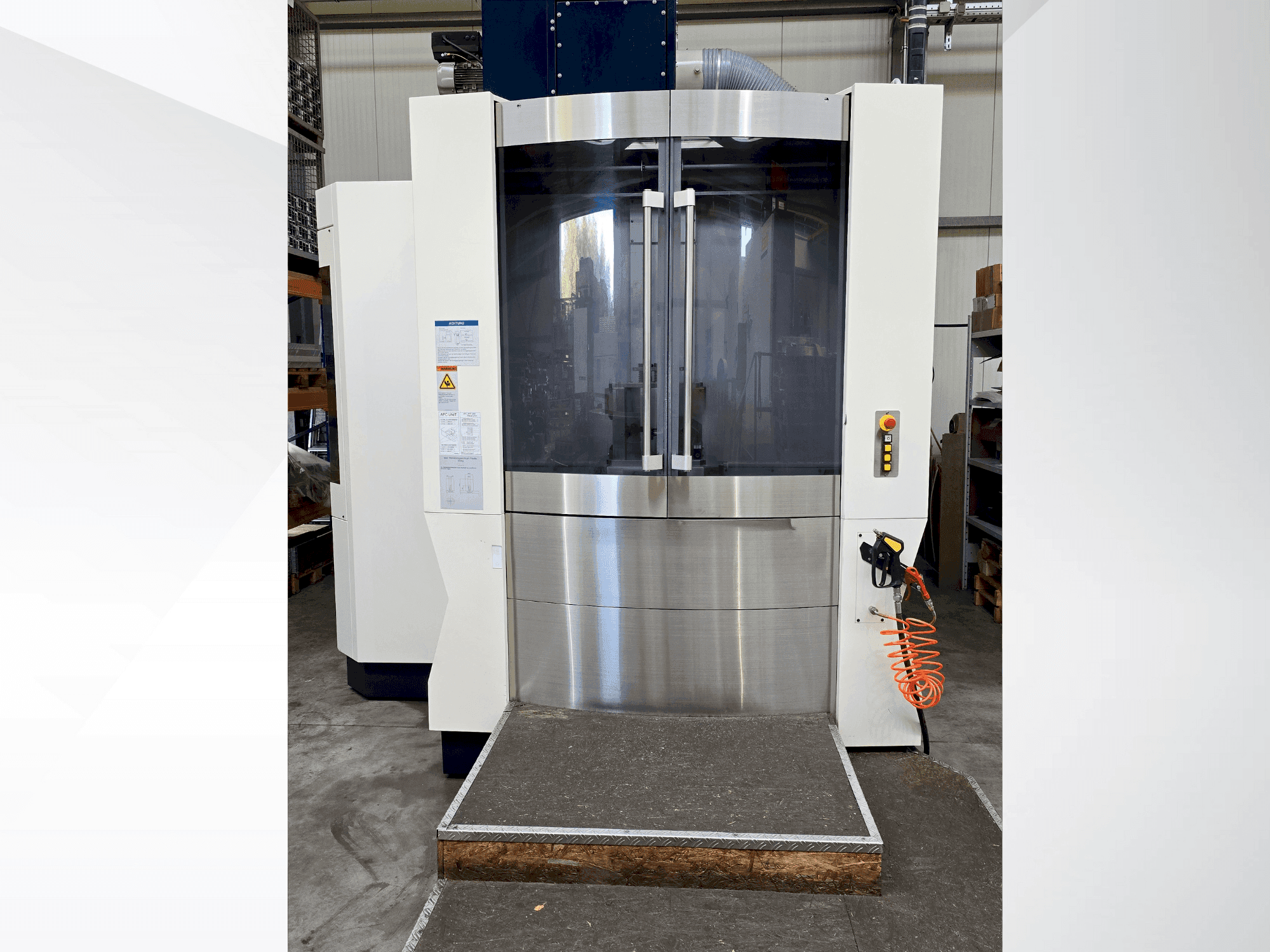

This 4-axis Makino A61nx horizontal machining center was manufactured in 2015. It features a robust spindle with speeds up to 14,000 min-¹, a torque of 240 Nm, and a power of 30 kW. The machine includes a high-capacity tool magazine with storage for 60 tools and rapid tool change times. Ideal for heavy-duty machining with a pallet size of 500 × 500 mm and maximum workpiece weight of 700 kg. For more information about this horizontal machining center, please reach out to us.

Overview

brand: Makino
year: 2015
MODEL: A61nx
application type: Milling
Location: Switzerland
machine type: Horizontal Machining Centre
availability: Immediately
control unit brand: FANUC

Technical Information - Makino A61nx

General Data

Measurements width: 2910 mm
Measurements depth: 4888 mm
Measurements height: 2981 mm
Machine weight: 12000 kg

Control Unit

Model: 310iS-A
Brand: FANUC

Main drive

Number of spindles: 1
Spindle speed range: 14000 1/MIN
Spindle motor power: 22 kW
Tool taper: HSK-A 63
Number of axis: 4

Movement

X-AXIS Movement: 730 mm
Y-AXIS Movement: 730 mm
Z-AXIS Movement: 800 mm

Workpiece

Workpiece weight: 500 kg

Tools

Max weight: 12 kg
Max tool diameter: 70 mm
Max tool length: 510 mm

Media

Chip conveyor: Yes
Internal cooling: Yes
Cooling pressure: 30 bar

Additional Equipment

- Direct path measuring systems in XYZ-axis
- Core cooling of the ball screw spindles and bearings with circulating oil // Jacket cooling on spindle nose and motor
- High-speed blanking function
- Linear guides in heavy-duty design: 55 mm
- https://gindumacgmbh.zendesk.com/sales/deals/176297652#:~:text=Tool%20magazine%3A%20Storage%20capacity%2060%20tools
- Renishaw OMP60 touch probe // Renishaw Inspection Plus
- Automatic override of the corners: G62
- Restart after programme interruption
- User macro with 600 variables
- Flow monitor for coolant through the spindle

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Pallet size: 500 × 500 mm
- - Maximum workpiece dimensions (diameter/height): 800/1000 mm
- - Direct path measuring systems, core cooling and jacket cooling, chip-to-chip time: 2. 4 s
- - Memory extension for 500 main and sub-programmes
- - Air curtain on the operating door
- - Space requirement: approx. 8. 3 x 5 x 2. 981 m (without conveyor)

Extra information

- Transport dimensions: 4704 mm x 2466 mm x 2916 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
