Makino a61nx Pro 6 Horizontal Machine Center

Show in original language

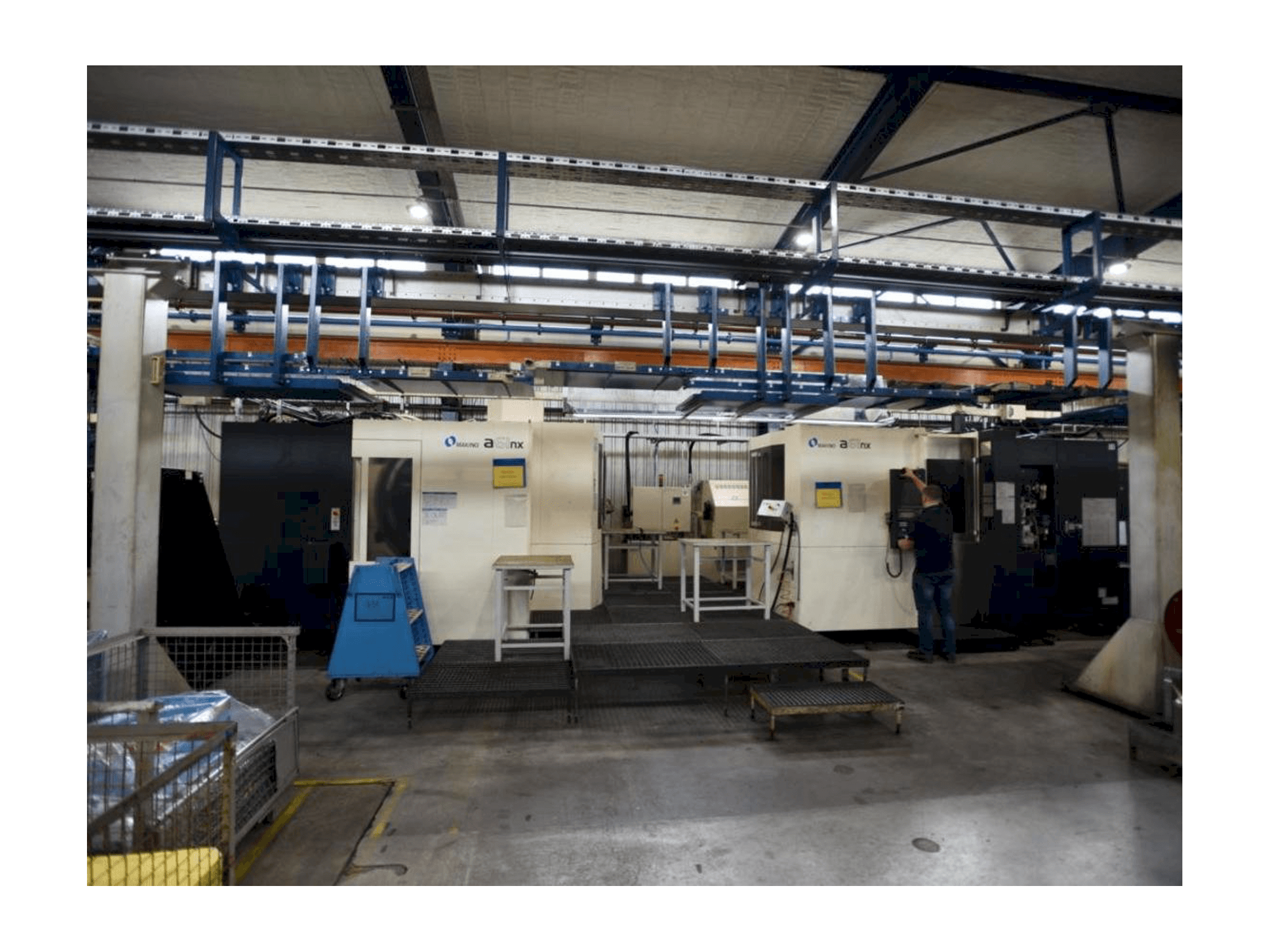

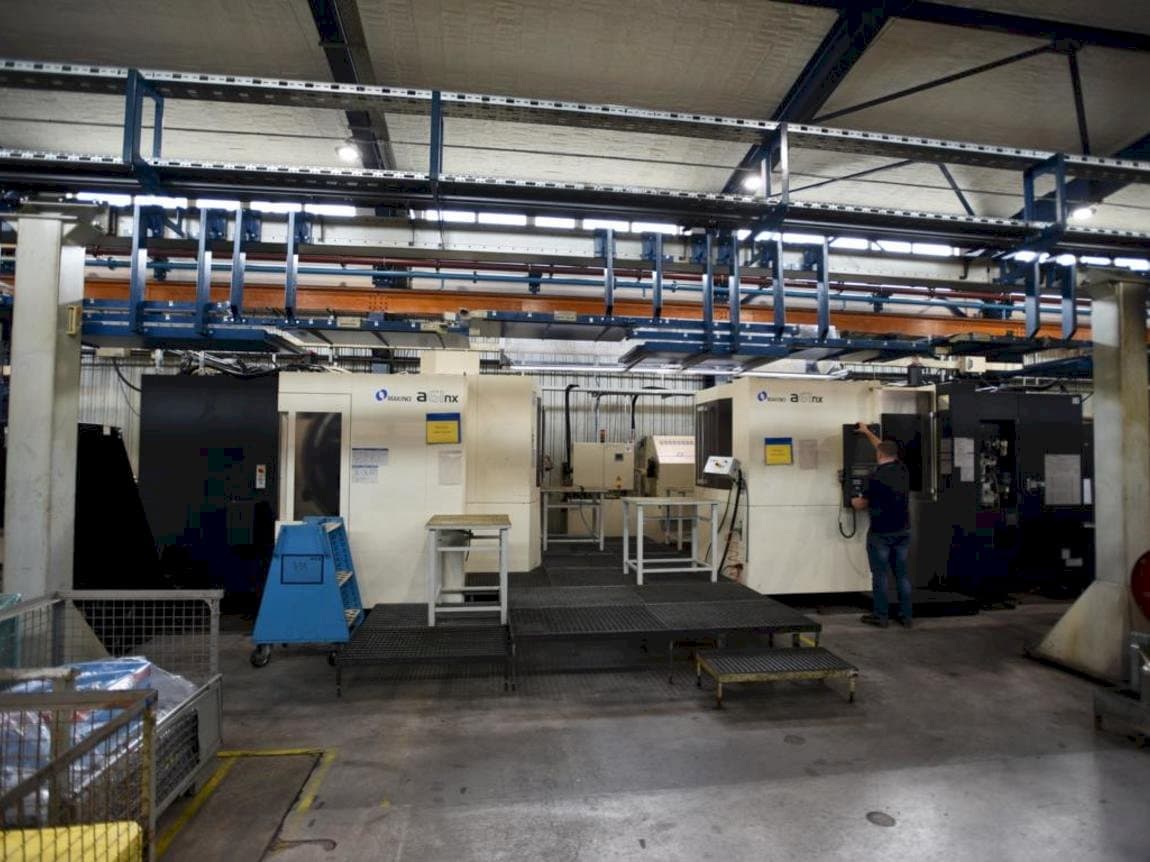

This Makino a61nx Pro 6 Horizontal Machine Center was made in the year 2019 in Germany and has 9500 hours on, of which 3900 are spindle hours and 1700 are machining hours. It is equipped with a Makino Professional 6 control unit. The machine has a spindle speed of 14000 rpm. 2 equal units are available.

Overview

brand: Makino
year: 2019
MODEL: a61nx Pro 6
production hours: 9500
application type: Milling
Location: Germany
machine type: Horizontal Machining Centre
availability: Sold
control unit brand: MAKINO

Technical Information - Makino a61nx Pro 6

Control Unit

Model: Professional 6
Brand: MAKINO

Main drive

Spindle speed range: 14000 1/MIN

Tools

Slots in storage: 60

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Torque 303 nm
- - Direct thread cutting
- - Nc rotary table (dd motor)
- - Automatic central lubrication
- - Data center 1gb
- - Door interlock of the pallet changer
- - Pallet changer
- - Safety cover of the pallet changer
- - Automatic program start after pallet change two (2) pallets with tapping grid
- - Eight (8) adjustable flushing nozzles on the spindle
Qualitative Machine Benefits:
- - Coolant flushing in the working area of the machine
- - Terrace flushing
- - Coolant supply centrally through work spindle (15bar) coolant device with scraper belt conveyor lsw880
- - Second filtration for coolant through the spindle (cyclone filter) chip and splash protection as full enclosure of the working chamber
- - Air dryer
- - Visual tool breakage control bts, signal lamp 3-color , helix interpolation, part program memory 2gb
- - 1000 storable programs
- - External spindle orientation
- - Tool radius compensation type c
- - Retracting from threading

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
