Products
Machine Tools

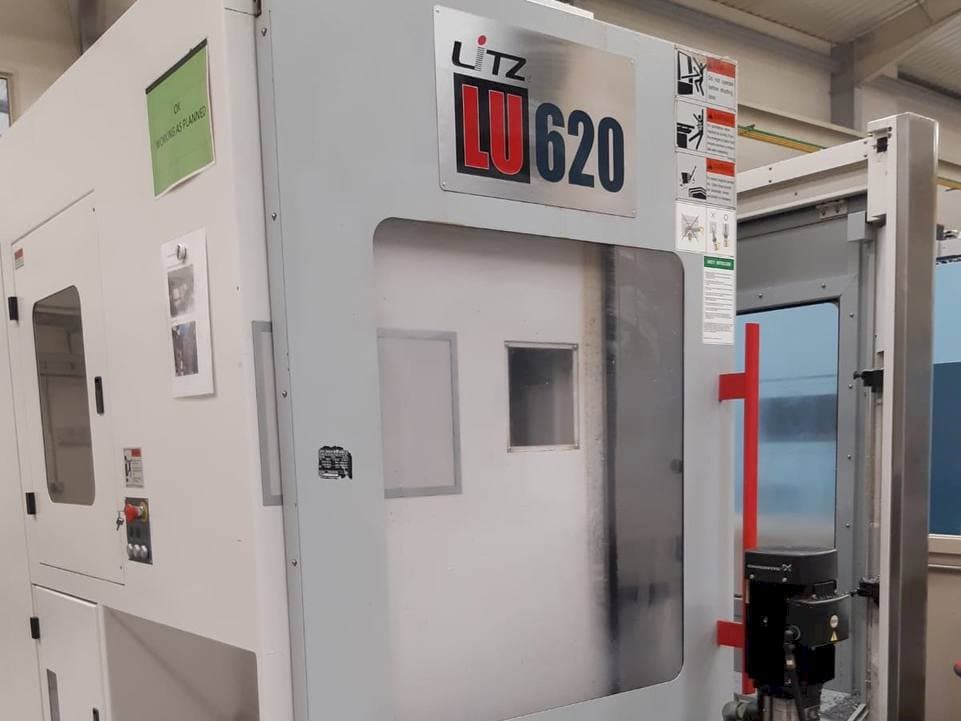

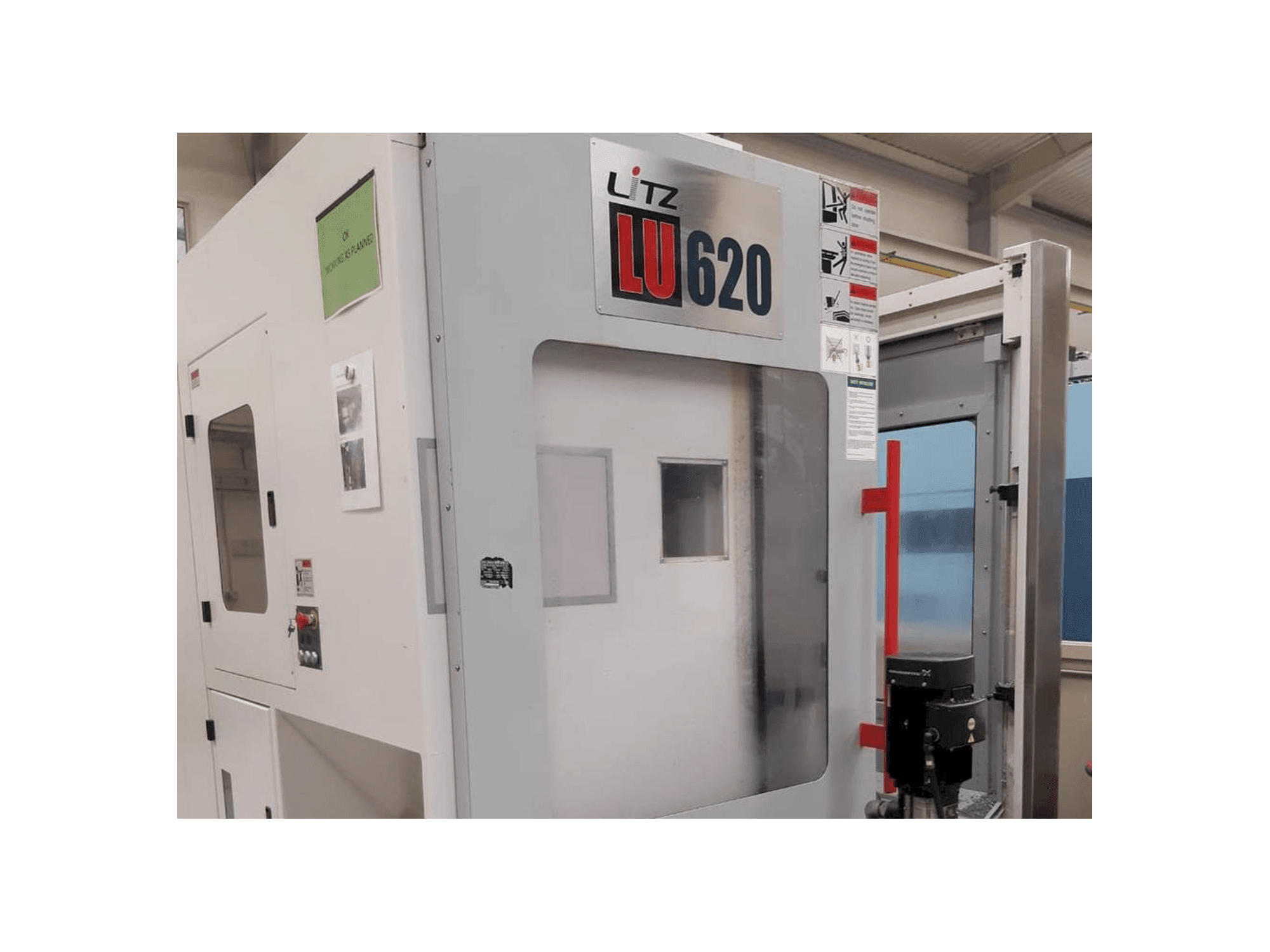

Litz LU 620 Vertical Machining Center

Show in original language

This Litz LU 620 Vertical Machining Center was manufactured in 2013. It has been on for 51473 hours, of which 7334 are spindle hours. This 5 axis machine can work with a spindle speed up to 12000 rpm. This machine stands out for its perfectly good conditions.

Overview

brand: Litz
year: 2013
MODEL: LU 620
production hours: 51473
application type: Milling
Location: United Kingdom
machine type: Vertical Machining Centre
availability: Sold
control unit brand: HEIDENHAIN

Technical Information - Litz LU 620

General Data

Measurements width: 2260 mm
Measurements depth: 2590 mm
Measurements height: 3060 mm
Machine weight: 8800 kg

Control Unit

Brand: HEIDENHAIN
Model: iTNC 530

Main drive

Number of spindles: 1
Spindle speed range: 12000 1/MIN
Spindle motor power: 18/21 kW
Number of axis: 5

Movement

X-AXIS Movement: 620 mm
X-AXIS Working Feed: 36 m/min
Y-AXIS Movement: 520 mm
Y-AXIS Working Feed: 36 m/min
Z-AXIS Movement: 460 mm
Z-AXIS Working Feed: 36 m/min

Workpiece

Workpiece weight: 300 kg

Media

Internal cooling: Yes

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Through spindle coolant
- - Table size Ø 650 mm
- - B axis tilting range: - 50° / + 110°
- - Spindle taper cat 40
Qualitative Machine Benefits:
- - Very good condition

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
