KUNZMANN - WF4/3DE-MIL-KUN-1998-00002

Name: KUNZMANN WF4/3
Brand: KUNZMANN
SKU: DE-MIL-KUN-1998-00002
Price: 10150 GBP
Availability: InStock

£ 10,150

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used KUNZMANN WF4/3 For sale | gindumac.com

Show in original language

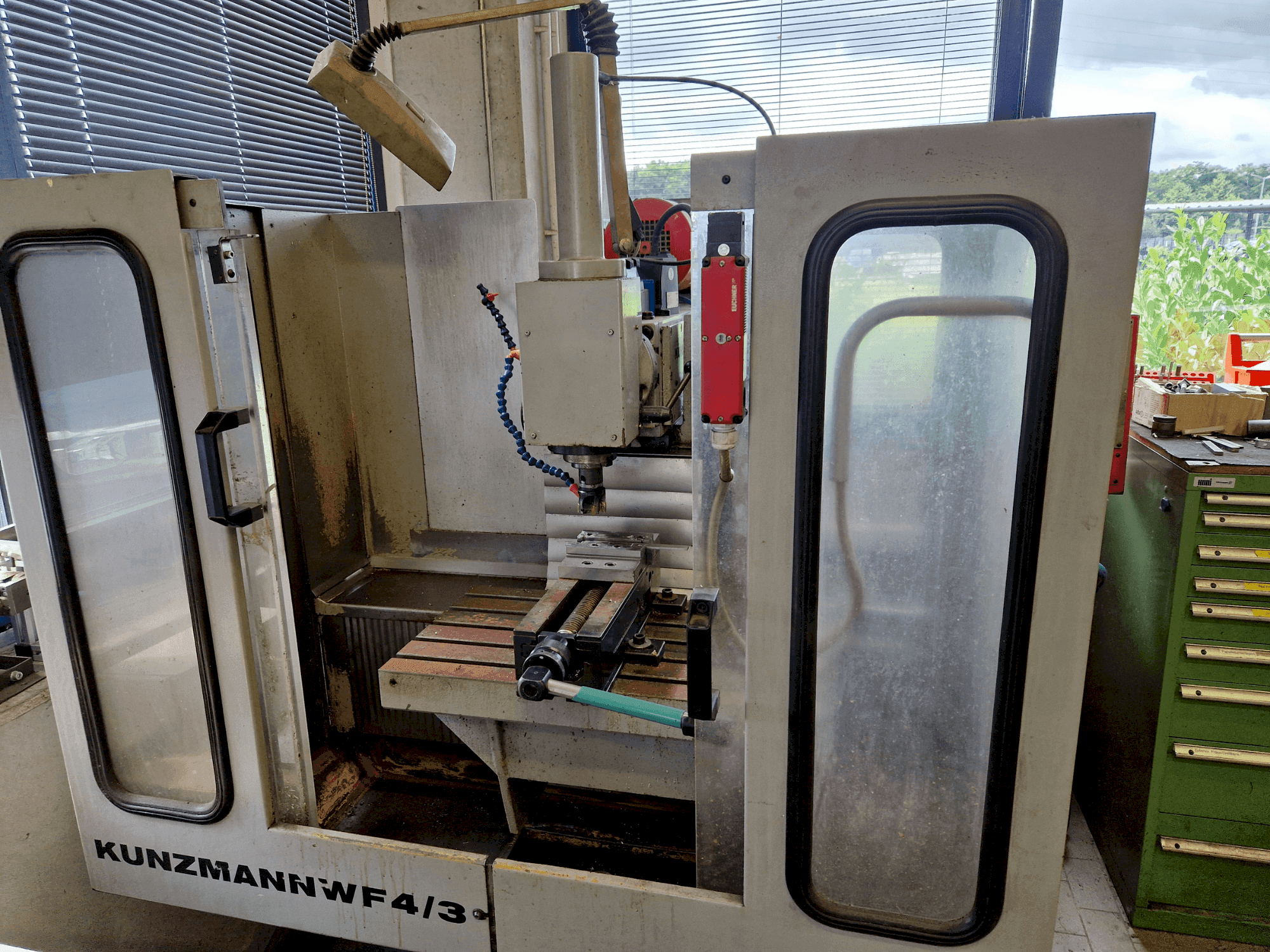

This KUNZMANN WF4/3 universal milling machine was manufactured in 1998. It features a clamping surface of 650 x 350 mm, a maximum load capacity of 250 kg, and a tool holder SK40. Speed ranges from 40 to 2500 rpm with a quill stroke of 60 mm. The machine includes a control cabinet and weighs approximately 1300 kg. Ideal for precise milling applications. Reach out for more information about this machine.

Overview

brand: KUNZMANN
year: 1998
MODEL: WF4/3
application type: Milling
Location: Germany
machine type: Universal Machining Centre

Technical Information - KUNZMANN WF4/3

General Data

Measurements width: 2000 MM
Measurements depth: 2000 MM
Measurements height: 2000 MM

Movement

X-AXIS Movement: 400 MM
Y-AXIS Movement: 320 MM
Z-AXIS Movement: 400 MM

Tools

Type of tool holder: Sk40

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Clamping surface 650 x 350 mm // clamping grooves 5
- - Groove spacing 63mm max. // load 250kg
- - Table top edge to horizontal spindle center 140-540mm
- - Top edge of table to lower edge of vertical head max. 430mm
- - Tool holder sk40 // speeds s i 40-320 rpm // speeds s ii 320-2500 rpm
- - Quill stroke vertical 60mm // vertical head swivels 90° on both sides
- - Longitudinal and transverse 0-1000 mm/min // longitudinal and transverse 4000 mm/min
- - Vertical 0-1000 mm/min // vertical 3000 mm/min
- - Machine incl. Control cabinet and heavy desk 1300kg

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
