Used Injection moulding machine KRAUSS MAFFEI KM 65/80 CX (2010) for sale | GINDUMAC.COM

Show in original language

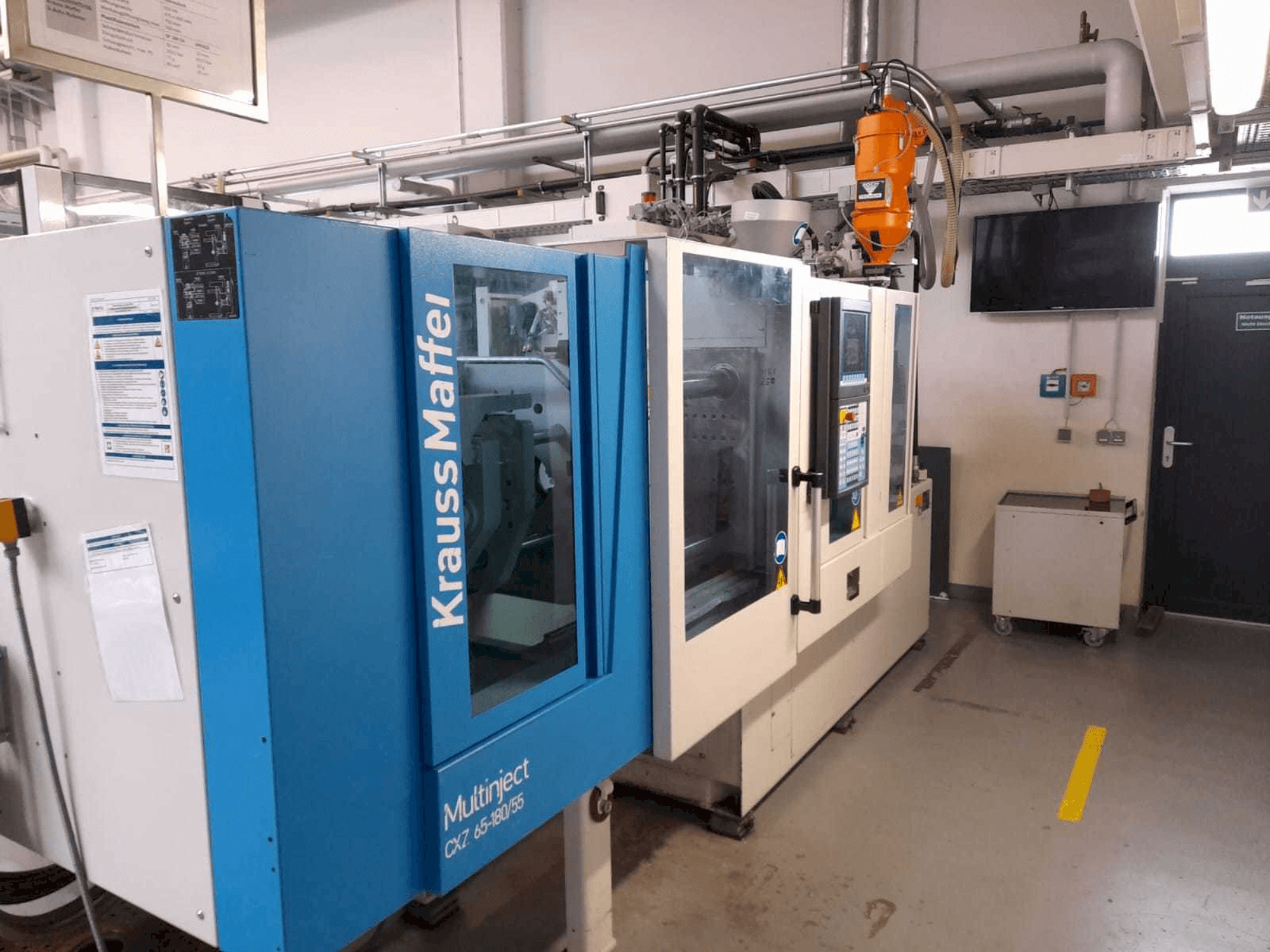

This KRAUSS MAFFEI KM 65/80 CX Injection moulding machine was manufactured in 2010 in Germany. This machine is equipped with a hydraulic clamping unit with a clamping force of 650 kN. It has a tie bar spacing of 470 x 420mm and an opening width of 750mm. The maximum mold opening stroke is 500mm. The plasticizing unit SP180 CX features a 30mm screw diameter, injection pressure of 2025 bar, and a maximum shot weight of 77g (PS) with a stroke volume of 85cm³. Additionally, it includes a plasticizing unit SP55 CX with a 20mm screw diameter, injection pressure of 2025 bar, and a maximum shot weight of 23g (PS) with a stroke volume of 25cm³. The machine has approximately 7,500 operating hours and 2,000 production hours, with a net weight of 4340 kg. Contact us anytime for further information.

Overview

brand: Krauss Maffei
year: 2010
MODEL: KM 65/80 CX
production hours: 2000
application type: Injection Moulding
Location: Germany
machine type: Hydraulic Injection Moulding Machine
availability: Sold

Technical Information - Krauss Maffei KM 65/80 CX

General Data

Machine weight: 4340 KG

Injection Unit

Screw diameter: 30
Shot weight: 77
Stroke volume: 85 CM³
Injection pressure: 2025 BAR

Clamping unit

Clamping force: 650 KN
Opening stroke: 500
Distance between bars: 470 x 420

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Plasticising unit sp180 cx described above
- - Plasticising unit sp55 cx - screw diameter 20mm, injection pressure 2025 bar, shot weight max. Ps 23g, stroke volume 25cm³
- - Opening width 750mm
- - Operating hours: 7,500

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
