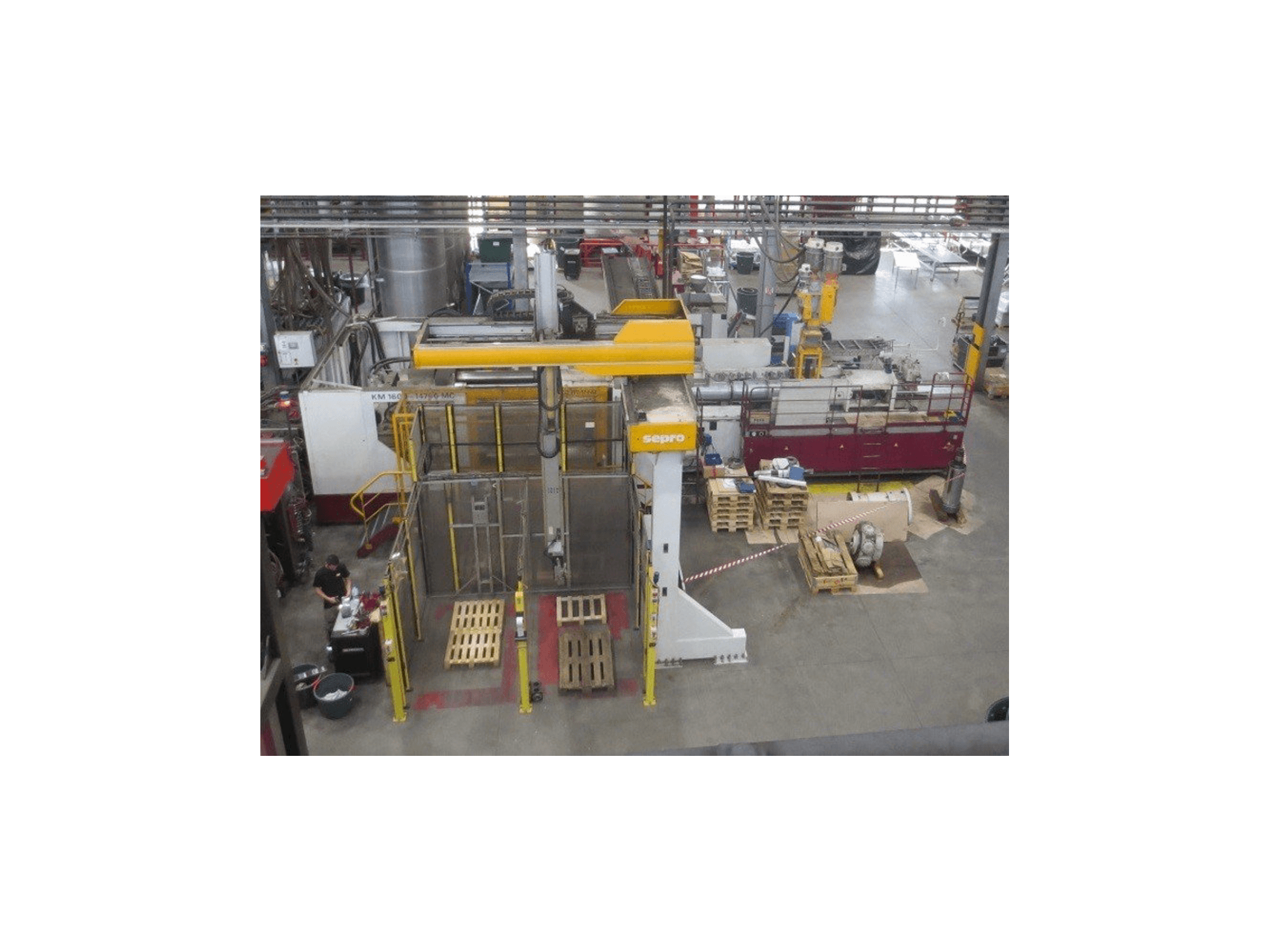

Krauss Maffei KM 1600 MC SP 14700 Injection Moulding Machine

Show in original language

This Krauss Maffei KM 1600 MC SP 14700 Injection Moulding Machine was made in the year 1998. It is operated with a control unit of the same brand. This machine work with a clamping force 16000 kN, a screw diameter 130 mm, and a mould thickness between 900 - 1600 mm.

Overview

brand: Krauss Maffei
year: 1998
MODEL: KM 1600 MC SP 14700
application type: Injection Moulding
Location: France
machine type: Hydraulic Injection Moulding Machine
availability: Sold

Technical Information - Krauss Maffei KM 1600 MC SP 14700

General Data

Machine weight: 130000 kg

Injection Unit

Screw diameter: 130 mm

Clamping unit

Clamping force: 16000 kN

Additional Information

Machine Benefits

Technical Machine Benefits:
- - L/d ratio : 20
- - Maximum dosing volume : 7632 cm3
- - Min. Mold thickness : 900 mm
- - Maximum mould thickness : 1600 mm
- - Distance between tie bars : 1800 - 1400 mm
- - Fixed part cores: 1
- - Cores in mobile part: 2
- - Mould heating area: 8

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
