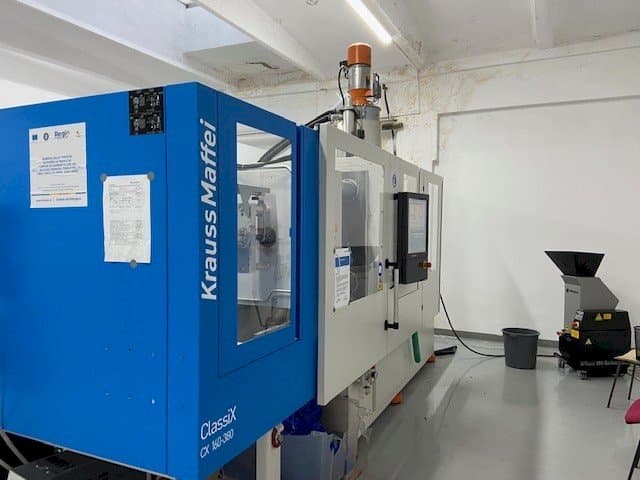

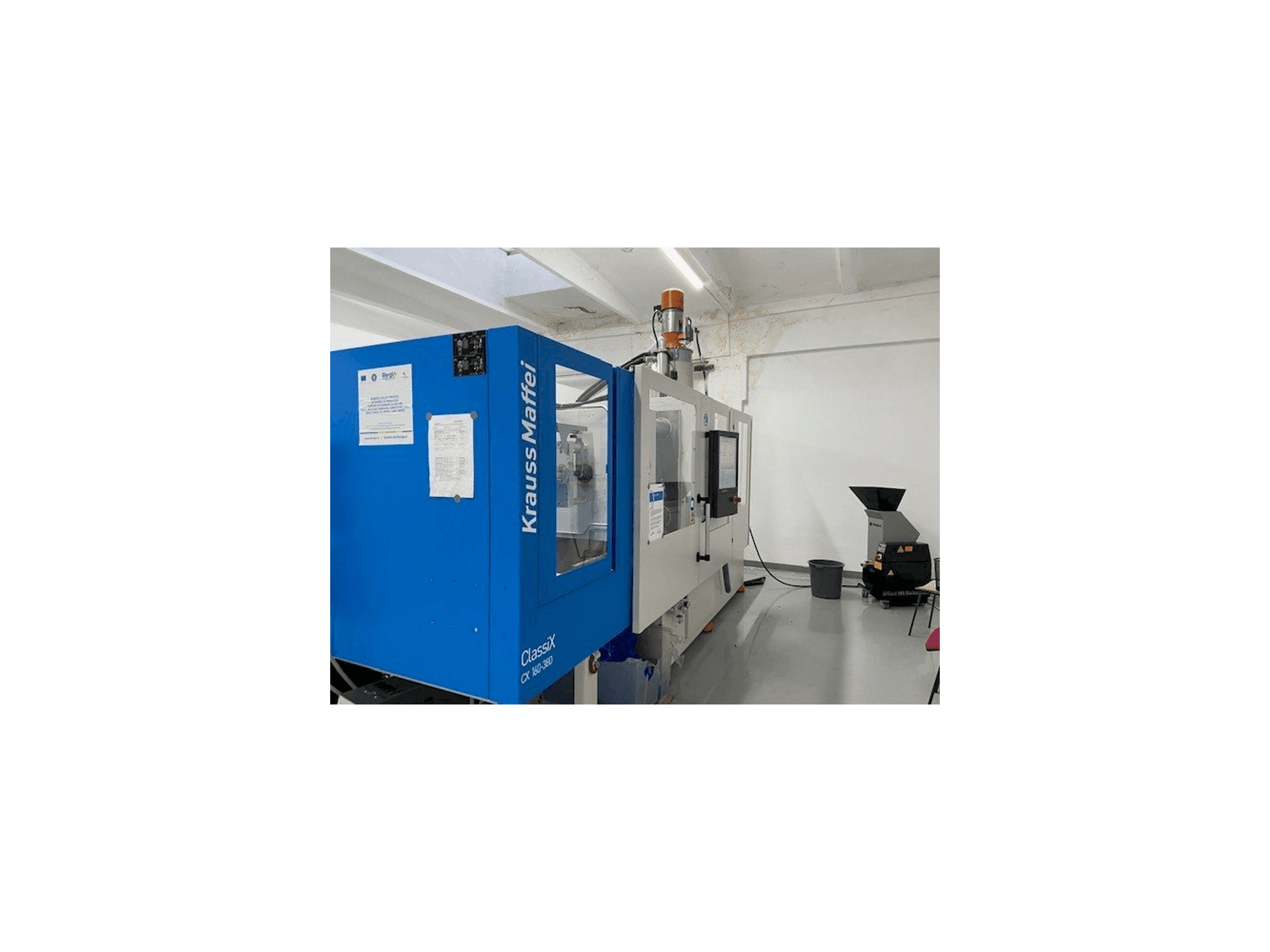

Krauss Maffei ClassiX CX 160-380 Injection Moulding Machine

Show in original language

This Krauss Maffei ClassiX CX 160-380 Injection Moulding Machine was made in the year 2019 and has approximately 1600 hours. It is equipped with a Krauss Maffei MC6 control unit. The machine has a clamping force of 1600 kN and a screw diameter of 40 mm.

Overview

brand: Krauss Maffei
year: 2018
MODEL: ClassiX CX 160-380
production hours: 1600
application type: Injection Moulding
Location: Romania
machine type: Hydraulic Injection Moulding Machine
availability: Sold
control unit brand: KRAUSS MAFFEI

Technical Information - Krauss Maffei ClassiX CX 160-380

Control Unit

Model: MC6
Brand: KRAUSS MAFFEI

Injection Unit

Screw diameter: 40 mm
Stroke volume: 200 CM³
Injection pressure: 1800 bar
Heating capacity: 5

Clamping unit

Clamping force: 1600 kn
Ejector stroke: 150 mm
Ejector force for / back: 23/10 kn

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Platen size (h): 820x845 mm, platen size (v): 520x520 mm
- - Min width mould: 300 mm
- - Max opening width: 950 mm
- - Hot channel control circuits in the mold: 8
- - Dryer motan: dryer volume 60l, power 1. 3kw
- - Feeder motan metro hes: capacity 50kg/h, engine power 1,1kw
- - Moderation unit reglopals 90smart – 2 pcs: capacity 7l, heating power at 400v 9kw, debit max. : 60l/min, size equipment: 202/560/661 mm, air cooled condenser water chiller will provide a cooling temp between 8 si 20 ̊c 18 kw
- - Chiller reglochill rc2e 20: cooling power 18kw
- - Granulator rapid 150-21 deltatech: feeding funnel dimensions: 490x330 mm, cutting chamber dimension: 205x150mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
