Krauss Maffei 80-380 EX Injection Moulding Machine

Show in original language

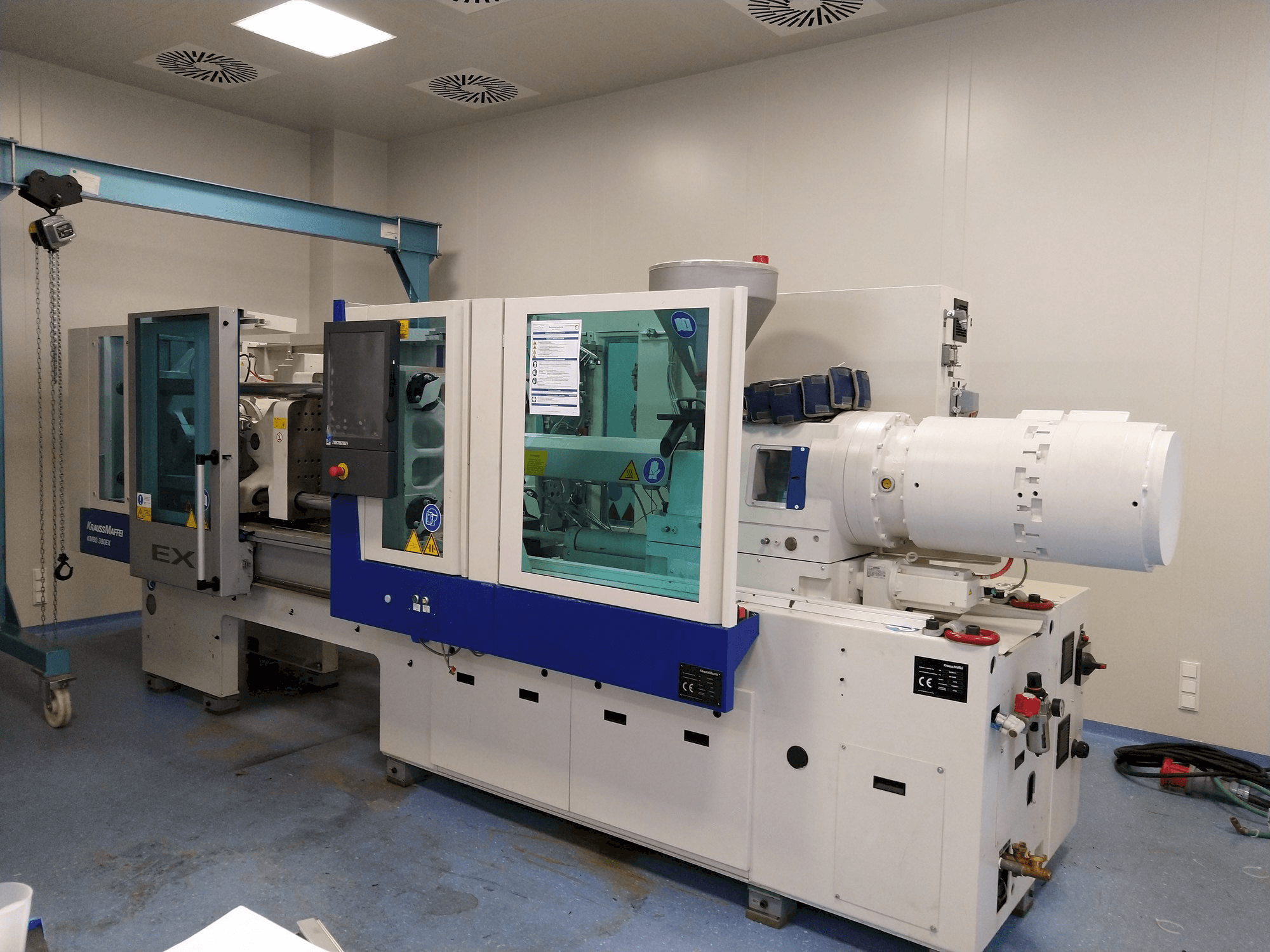

This Krauss Maffei 80-380 EX Injection Moulding Machine was built in 2009 in Germany. It is operated through a Krauss Maffei control unit. This machine can work with a clamping force of 800 kN. It also works with a nozzle contact force of 30 kN. A robot is included. Machine is currently dismantled but will be delivered fully functional.

Overview

brand: Krauss Maffei
year: 2009
MODEL: 80-380 EX
application type: Injection Moulding
Location: Germany
machine type: Electrical Injection Moulding Machine
availability: Sold

Technical Information - Krauss Maffei 80-380 EX

General Data

Measurements width: 5100 mm
Measurements depth: 1500 mm
Measurements height: 2100 mm
Machine weight: 6.300 kg

Tools

Max weight: 996 kg

Injection Unit

Screw diameter: 30 mm
Shot weight: 104,7 g
Stroke volume: 115 CM³
Injection pressure: 2500 bar
Plasticizing rate max.: 19,9 g/s
Screw speed: 477 rpm
Nozzle pressure: 30 kN

Clamping unit

Clamping force: 800 kN
Max open daylight: 790 mm
Ejector stroke: 100 mm

Media

Power consumption: 57 kW

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Tool opening force max. 64 kn

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
