Krauss Maffei 500-6100 CX Injection Moulding Machine

Show in original language

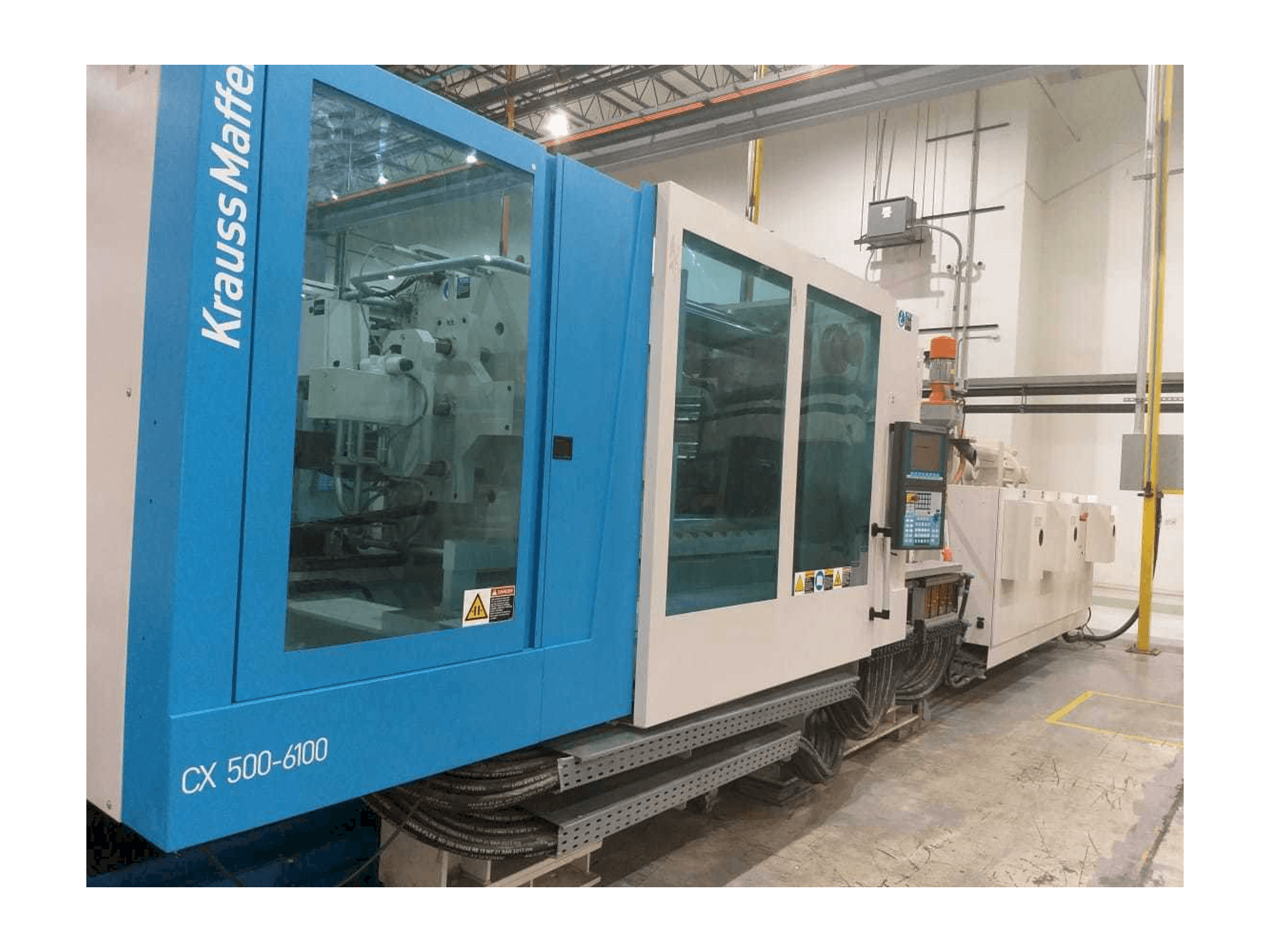

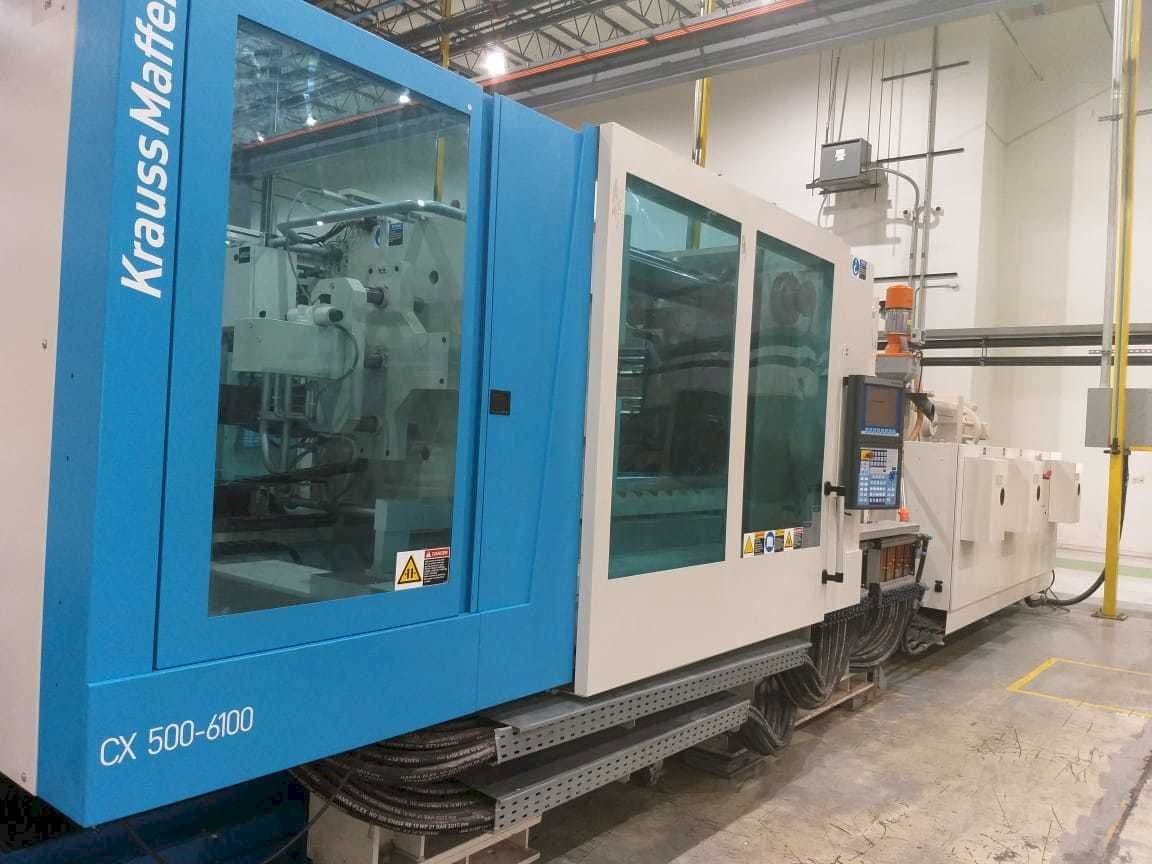

This Krauss Maffei 500-6100 CX Injection Moulding Machine was built in 2014 in Germany. It is equipped with a control unit of the same brand. This machine can work with a clamping force of 5000 kN, and a screw diameter of 95 mm. This Krauss Maffei is in very good conditions.

Overview

brand: Krauss Maffei
year: 2014
MODEL: 500-6100 CX
application type: Injection Moulding
Location: Mexico
machine type: Hydraulic Injection Moulding Machine
availability: Sold

Technical Information - Krauss Maffei 500-6100 CX

General Data

Measurements width: 7500 mm
Measurements depth: 2500 mm
Measurements height: 2400 mm
Machine weight: 28000 kg

Injection Unit

Screw diameter: 95 mm

Clamping unit

Clamping force: 5000 kN
Opening stroke: 1170 mm
Max open daylight: 1650 mm
Distance between bars: 900 x 800 mm
Size of mold platens: 1270 x 1230 mm
Ejector stroke: 250 mm
Ejector force for / back: 95 / kN

Media

Main electronic connection: 440 - 480 V / 60 Hz

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
