➤ Used Krauss Maffei 420-3000 CX For sale | gindumac.com

Show in original language

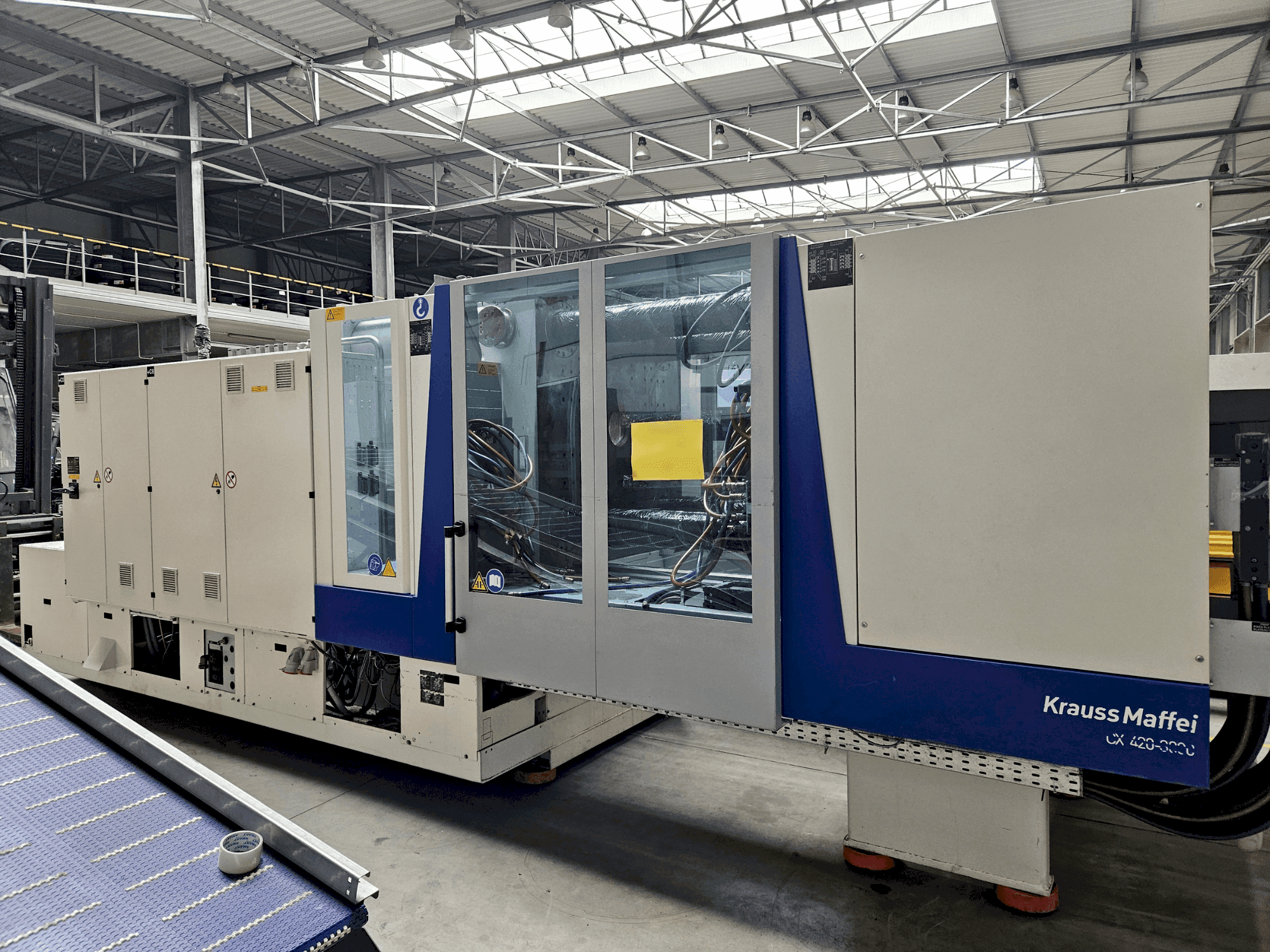

This Krauss Maffei 420-3000 CX injection moulding machine was manufactured in 2011. It features a robust clamping force of 4200 kN and a screw diameter of 80 mm, suitable for high-precision molding. The machine dimensions are 7.3 x 2.6 x 2.5 m, and it weighs 25500 kg, ensuring stability and durability. Ideal for those looking to enhance their production capabilities with a reliable machine. For more information about this injection moulding machine, please reach out to us.

Overview

brand: Krauss Maffei
year: 2011
MODEL: 420-3000 CX
application type: Injection Moulding
Location: Poland
machine type: Hydraulic Injection Moulding Machine
availability: Sold

Technical Information - Krauss Maffei 420-3000 CX

General Data

Measurements width: 2600 MM
Measurements depth: 7300 MM
Measurements height: 2500 MM
Machine weight: 25500 KG

Control Unit

Model: MC5 3.3

Injection Unit

Screw diameter: 80 mm
Shot weight: 1464 g (for PS)
Stroke volume: 1608 cm3 CM³
Injection pressure: 1856 bar
Adjustable heating zones: 7

Clamping unit

Clamping force: 4200 kn
Opening stroke: 124.7 / 102.4 kN
Mould height min: 380 mm
Size of mold platens: 1270 x 1200 mm
Ejector stroke: 250 mm

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Mold opening stroke: 1020 mm
- - Tie bar spacing: 800 x 800 mm
- - Number of dry cycles according to euromap 6: 1200 l/h
- - Maximum platen stroke: 1400 mm
- - Nozzle radius: 15 mm
- - Nozzle orifice diameter: 6 mm
- - Main electronic connection: 400v 3n~ 50hz
- - Pump drive power: 75 kw
- - High injection pressure, large shot volume
- - Consistent performance, robust clamping unit

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
