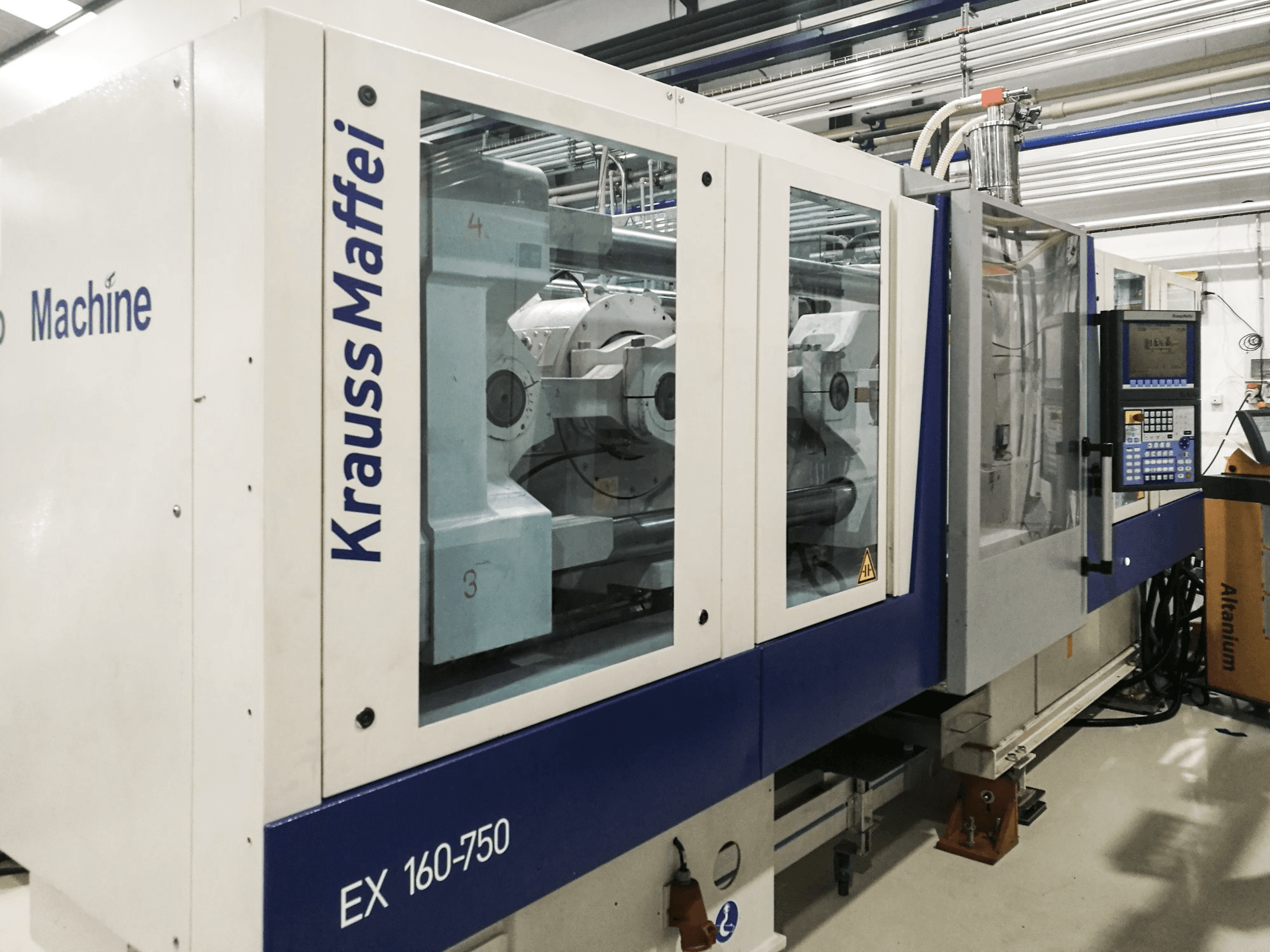

Krauss Maffei 160-750 EX Injection Moulding Machine

Show in original language

This Krauss Maffei 160-750 EX Injection Moulding Machine was manufactured in Germany in 2010 and holds a record of 54001 production hours ever since. With a MC5 Control unit model (by Krauss Maffei), the machine stands in very good conditions thanks to regular maintenance and levelling every 6 months. The equipment has worked mainly with polyethylene, producing plastic caps. For this machine a warranty on spare parts is included.

Overview

brand: Krauss Maffei
year: 2010
MODEL: 160-750 EX
production hours: 54001
application type: Injection Moulding
Location: Spain
machine type: Electrical Injection Moulding Machine
availability: Sold
control unit brand: KRAUSS MAFFEI

Technical Information - Krauss Maffei 160-750 EX

General Data

Measurements width: 6300 mm
Measurements depth: 1600 mm
Measurements height: 2300 mm
Machine weight: 12700 kg

Control Unit

Brand: KRAUSS MAFFEI
Model: MC5

Injection Unit

Screw diameter: 50 mm
Shot weight: 357,6 g/PS
Stroke volume: 393 cm³
Injection pressure: 1982 bar
Plasticizing rate max.: 62,2 g/s PS
Screw speed: 458 1/min
Nozzle pressure: 30 kN

Clamping unit

Clamping force: 1600 kN
Opening stroke: 450 mm
Mould height min: 300 mm
Mould height max: 550 mm
Ejector stroke: 150 mm
Ejector force for / back: 22 kN

Additional Equipment

- (Warranty on Spare Parts included)

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
