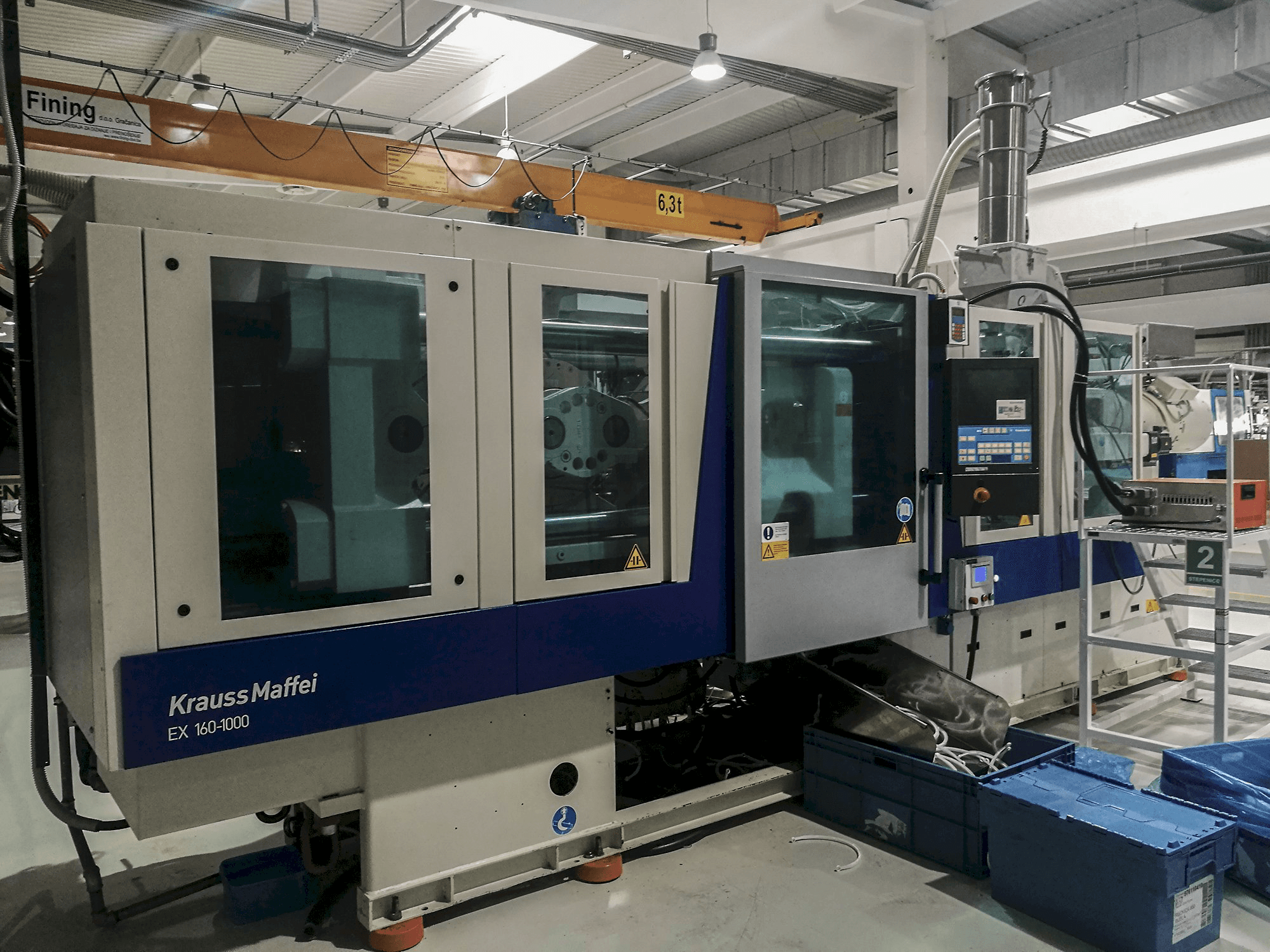

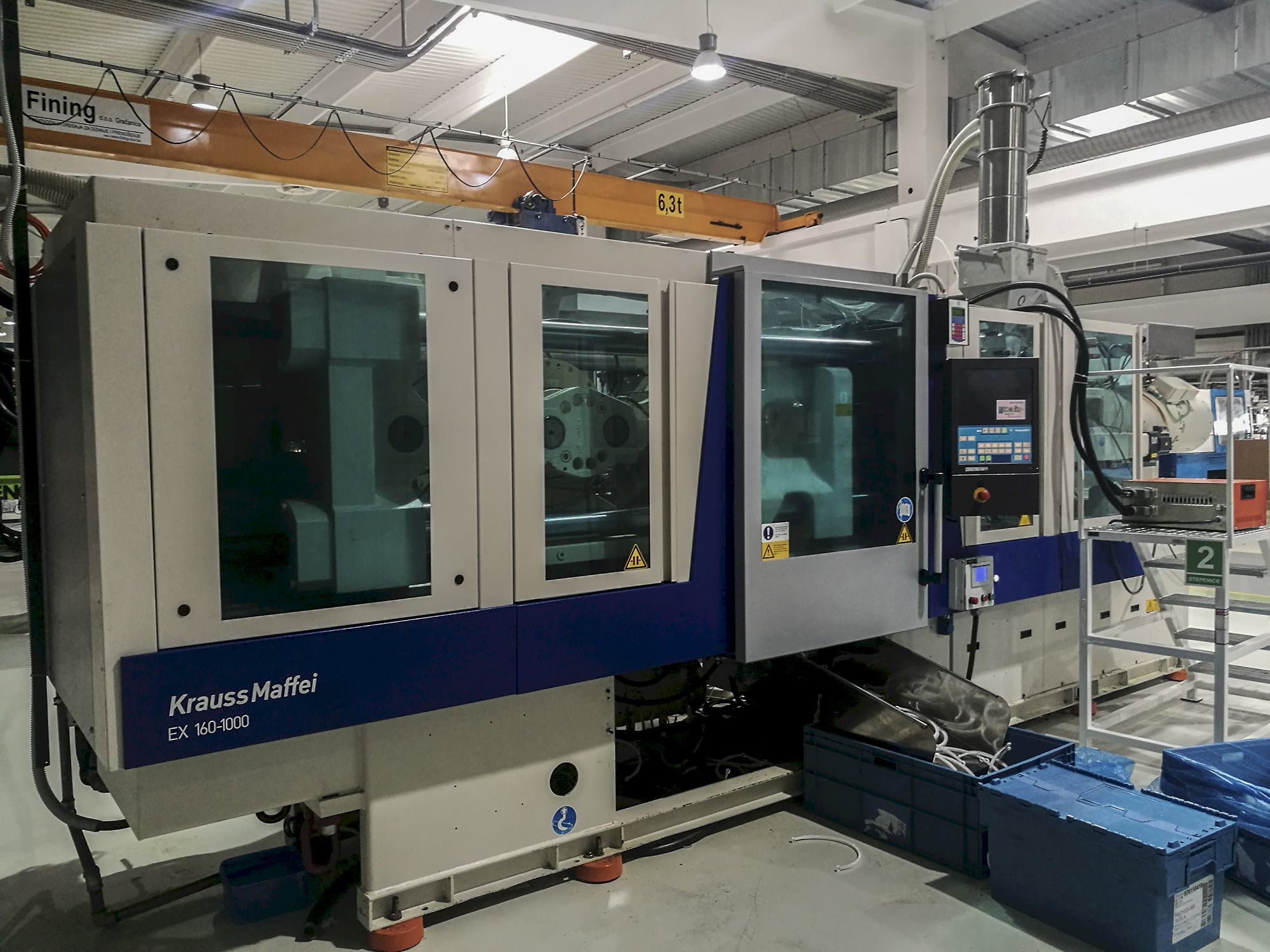

Krauss Maffei 160-1000 EX Injection Moulding Machine

Show in original language

This Krauss Maffei 160-1000 EX Injection Moulding Machine was manufactured in Germany in 2011 and has been operative for 47185 production hours since then. This model is equipped with a Krauss Maffei MC5 Control unit and stands out due to a low energy consumption for production cycles of 8 seconds or longer. The machine is ready for automation and manipulator equipment and was regularly serviced.

Overview

brand: Krauss Maffei
year: 2011
MODEL: 160-1000 EX
production hours: 47185
application type: Injection Moulding
Location: Bosnia and Herzegovina
machine type: Electrical Injection Moulding Machine
availability: Sold
control unit brand: KRAUSS MAFFEI

Technical Information - Krauss Maffei 160-1000 EX

General Data

Measurements width: 8000 mm
Measurements depth: 1800 mm
Measurements height: 2000 mm
Machine weight: 11000 kg

Control Unit

Model: MC5
CNC main language: Croatian
CNC language customizable: Yes
Brand: KRAUSS MAFFEI

Injection Unit

Screw diameter: 50 mm
Shot weight: 393 g/PS
Stroke volume: 432 cm3 CM³
Injection pressure: 2304 bar
Plasticizing rate max.: 61.1 g/s PS
Screw speed: 416 1/min
Heating capacity: 18.7 kW
Adjustable heating zones: 5

Clamping unit

Clamping force: 1600 kN
Opening stroke: 450 mm
Distance between bars: 520x520 mm
Mould height min: 300 mm
Mould height max: 550 mm
Ejector stroke: 150 mm
Ejector force for / back: 22 kN

Media

Main electronic connection: 380 V
Power consumption: 14 kVA
Internal cooling: Yes

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
