Krauss Maffei 150-700 C2 Injection Moulding Machine

Show in original language

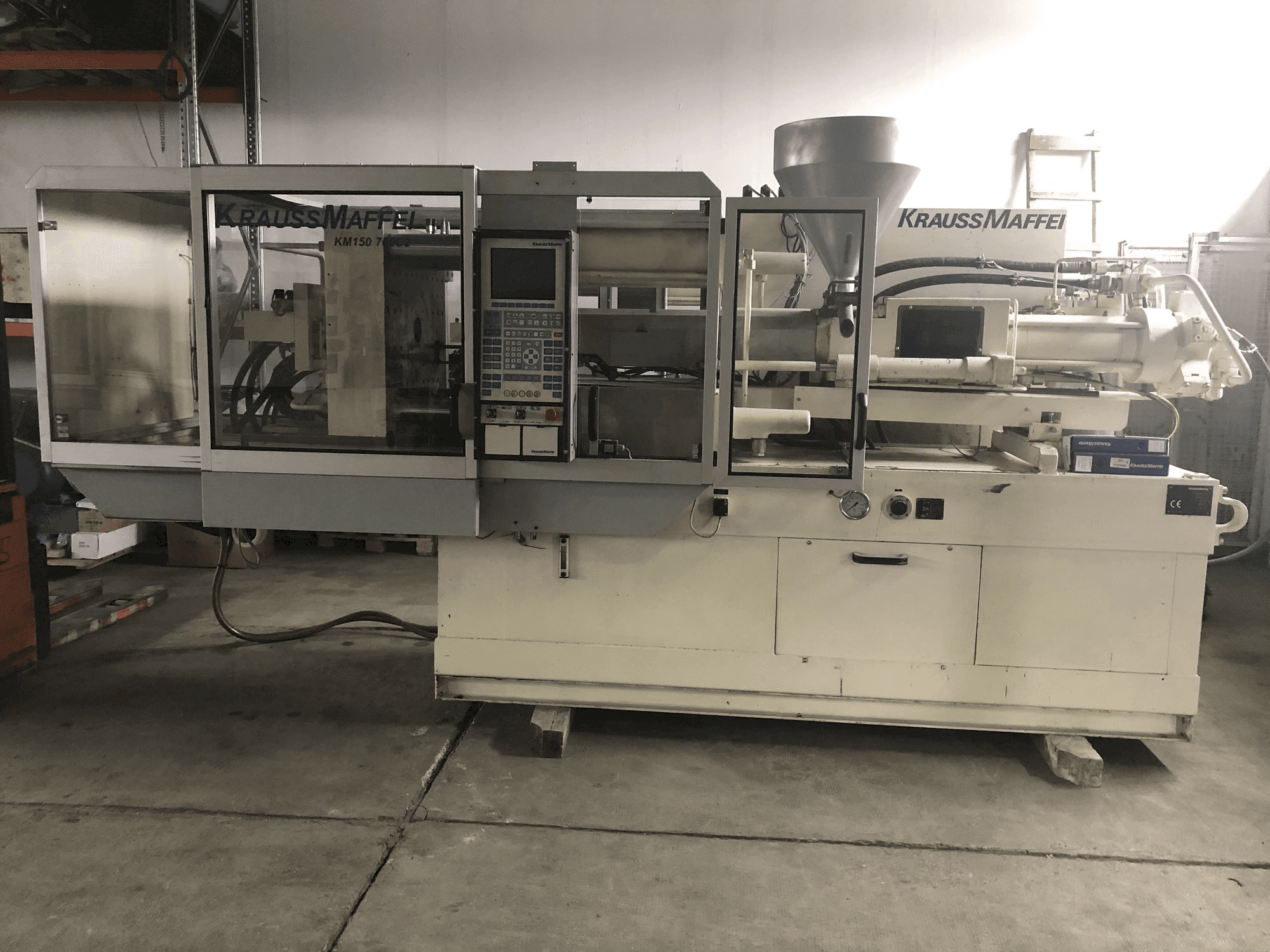

This Krauss Maffei 150-700 C2 Injection Moulding Machine was manufactured in 2001 in Germany. This reliable machine incorporates a clamping force of 1500 kN and stands out for its double pump for parallel movements.

Overview

brand: Krauss Maffei
year: 2001
MODEL: 150-700 C2
application type: Injection Moulding
Location: Serbia
machine type: Hydraulic Injection Moulding Machine
availability: Sold
control unit brand: KRAUSS MAFFEI

Technical Information - Krauss Maffei 150-700 C2

General Data

Measurements width: 4660 mm
Measurements depth: 1510 mm
Measurements height: 2190 mm
Machine weight: 7100 kg

Control Unit

Brand: KRAUSS MAFFEI

Injection Unit

Screw diameter: 45 mm
Shot weight: 278 g PS
Stroke volume: 305 CM³
Injection pressure: 2336 bar
Screw speed: 27 g/s
Heating capacity: 13 kW
Nozzle pressure: 50 kN

Clamping unit

Clamping force: 1500 kN
Opening stroke: 600 mm
Max open daylight: 900 mm
Distance between bars: 500 x 500 mm
Mould height min: 300 mm
Size of mold platens: 780 x 790 mm
Ejector stroke: 150 mm
Ejector force for / back: 22/10 kN

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Double pump for parallel movements
- - Accumulator for speed 300mm/sec
- - Hotrunner
- - Corepull
- - Air valve
- - Euromap 12

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
