Krauss Maffei - 1300/8100 MXTR-INJ-KRA-2017-00001
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Plastics Processing Machinery
- Krauss Maffei 1300/8100 MX injection moulding

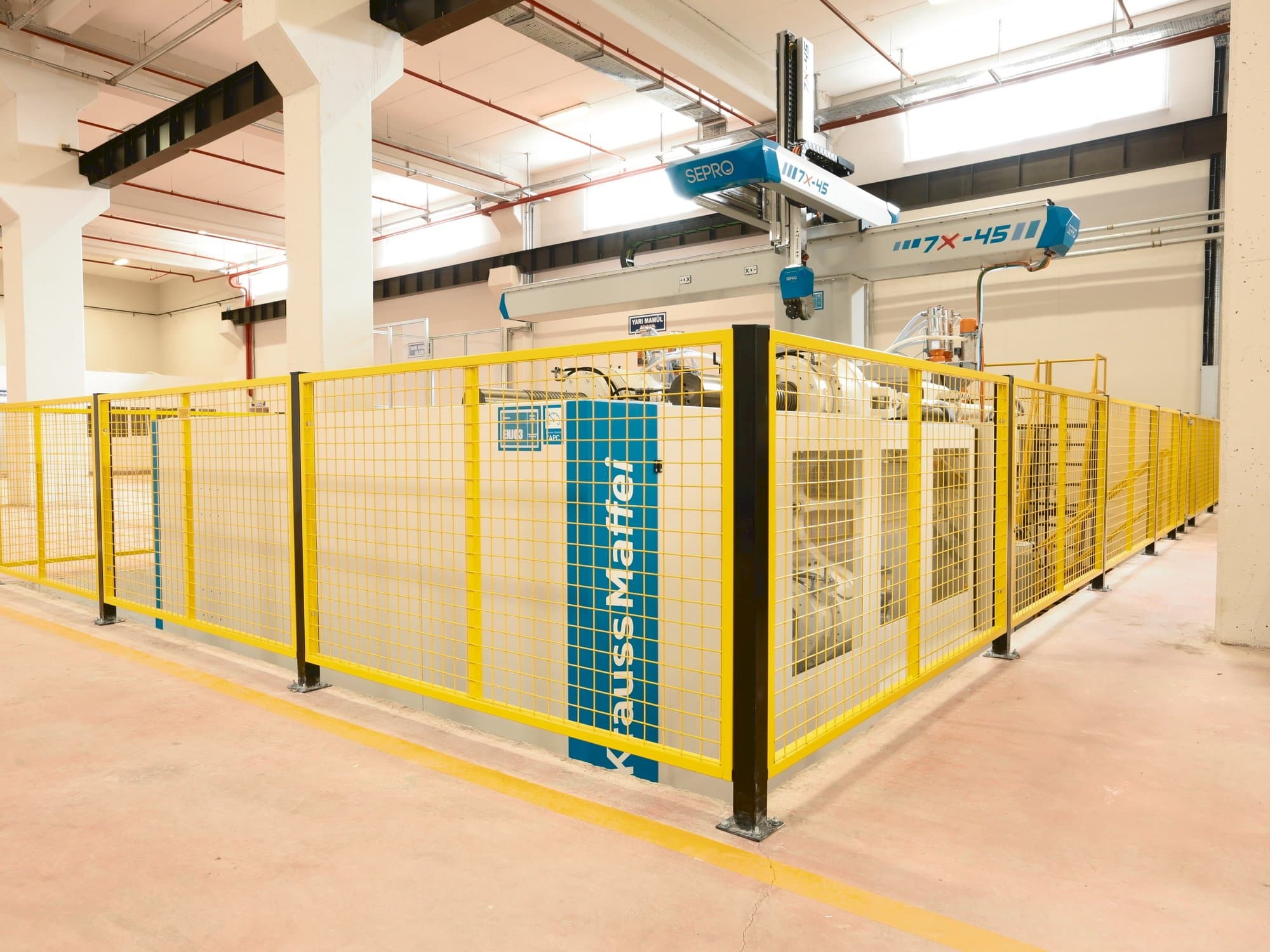

This Krauss Maffei 1300/8100 MX injection moulding machine was manufactured in 2017. The machine has a total of 800 production hours. It has a clamping force of 13000 kN, and a screw diameter 115 mm. The machine comes with a Sepro Robot.
Overview
- brand: Krauss Maffei
- year: 2017
- MODEL: 1300/8100 MX
- production hours: 800
- application type: Injection Moulding
- Location: Turkey
- machine type: Hydraulic Injection Moulding Machine
- availability: Sold
Technical Information - Krauss Maffei 1300/8100 MX
General Data
- Measurements width: 3650 mm
- Measurements depth: 2680 mm
- Measurements height: 12110 mm
- Machine weight: 64000 kg
Injection Unit
- Screw diameter: 115 mm
- Shot weight: 3872
- Stroke volume: 5453 CM³
- Injection pressure: 1482 bar
- Plasticizing rate max.: 171 g/s
- Screw speed: 150 rpm
- Nozzle pressure: 166 kN
Clamping unit
- Clamping force: 13000 kN
- Opening stroke: 2350 mm
- Max open daylight: 3050 mm
- Distance between bars: 1570 x 1270 mm
- Mould height min: 700 mm
- Mould height max: 1400 mm
- Size of mold platens: 2210 x 1910 mm
- Ejector stroke: 350 mm
- Ejector force for / back: 250 / 125 kN
Additional Equipment
- - Sepro Robot
Additional Information
- Technical Machine Benefits:
- - Maximum mold weight: 29. 000kg
- - Oil reservoir capacity: 1. 500 dm3
- - Nozzle pressure: 166 kn
- - Adjustable barrel heating zones: 7
- - Installed heating capacity: 64 kw
- - Injection speed: 93 mm/s
- - Injection rate: 966 cm3/s
- - Working capacity: 8085
- - Ls/d ratio: 23 cm3
- - Mold opening stroke: 2350 mm
- Qualitative Machine Benefits:
- - Mold opening force: 910 kn
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
